Quick Details
-
Range of Spindle Speed(r.p.m):
-
0.5 - 40 r.p.m
-
Max. Turned Length (mm):
-
5000 mm
-
Spindle Motor Power(kW):
-
AC75
-
Year:
-
New
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HAIDI
-
Model Number:
-
C5250
-
Voltage:
-
380/220
-
Dimension(L*W*H):
-
9200*5800*5800
-
Weight (KG):
-
70 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
Chinese High Rigidity Double Column Vertical Lathe
-
Machine Type:
-
Vertical Lathe
-
Worktable dia.:
-
5000
-
Max. loading weight:
-
50
-
Speed Range:
-
0.5-40
-
Step Range:
-
16
-
Max.Torque:
-
70
-
Cross Beam Travel:
-
2650
-
Machine Weight:
-
70
-
Main Motor:
-
AC55/AC75
Quick Details
-
Max. Length of Workpiece (mm):
-
5000
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
0
-
Range of Spindle Speed(r.p.m):
-
0.5 - 40 r.p.m
-
Max. Turned Length (mm):
-
5000 mm
-
Spindle Motor Power(kW):
-
AC75
-
Year:
-
New
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HAIDI
-
Model Number:
-
C5250
-
Voltage:
-
380/220
-
Dimension(L*W*H):
-
9200*5800*5800
-
Weight (KG):
-
70 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
Chinese High Rigidity Double Column Vertical Lathe
-
Machine Type:
-
Vertical Lathe
-
Worktable dia.:
-
5000
-
Max. loading weight:
-
50
-
Speed Range:
-
0.5-40
-
Step Range:
-
16
-
Max.Torque:
-
70
-
Cross Beam Travel:
-
2650
-
Machine Weight:
-
70
-
Main Motor:
-
AC55/AC75

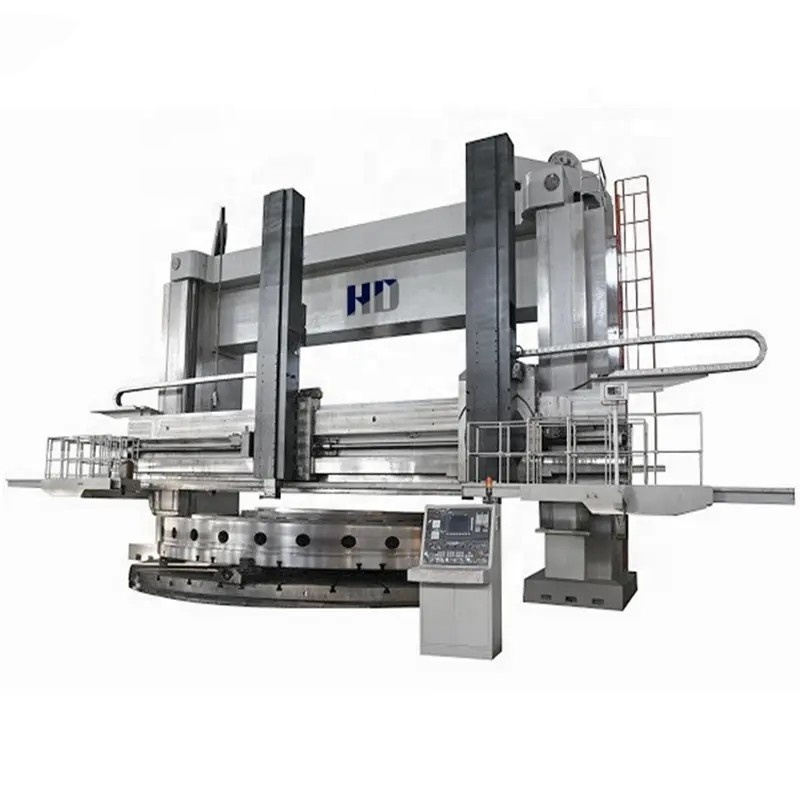

Chinese High Rigidity Double Column Vertical Lathe
Product Details
●
Adopt advanced vertical lathe manufacturing technology, modular design, FEA analysis, integrated use of mechanical, electrical and hydraulic techniques, to guarantee high precision machining performance.
● Siemens 828D CNC control ( optional, FANUC and GSK). Except CNC auto running mode, at the same time, it has the function of full manual operation.
● With big torque variable AC main motor plus gearbox in two steps, with threading function and CSCS ( constant surface cutting speed) function.
● High grade and good quality castings are make by own foundry, following by proper heat treatment, providing long lifetime and stable accuracy.
● The guide rail of worktable adopts constant current motor to supply oil with stable precision, equipped with separated hydraulic station, the hydraulic oil adopts constant temperature refrigeration, all these advanced techniques assure customer a high and long stable machining accuracy.
● High precision ball screws , and use imported bearing support.
● Gearbox adopts high precision grinding gear.
Specification Parameter
|
Specification
|
Unit
|
C5225
|
C5232
|
C5235
|
C5240
|
C5250
|
|
Max. cutting diameter
|
mm
|
2500
|
3200
|
3500
|
4000
|
5000
|
|
Max. cutting height
|
mm
|
1600/2000
/2500
|
1600/2000
/2500
|
1600/2000
|
1600/2000
/2500
|
2000/2500
/3150
|
|
Worktable diameter
|
mm
|
2250
|
2830
|
2830
|
2830/3200
/3600
|
4000/4500
|
|
Max. loading weight
|
t
|
10/16/20
|
10/16/20
|
20
|
20/32/50
|
32/50
|
|
Worktable max. torque
|
kn. m
|
63
|
63
|
63
|
63
|
70
|
|
Worktable speed range
|
rpm
|
2-63
|
2-63
|
2-63
|
0.5-40
|
0.5-40
|
|
Worktable step
|
steps
|
16
|
16
|
16
|
16
|
16
|
|
Right tool post cutting force
|
kn
|
35
|
35
|
35
|
35
|
35/50
|
|
Left tool post cuttingforce
|
kn
|
28
|
28
|
28
|
28
|
28/40
|
|
Tool post horizontal travel
|
mm
|
1400
|
1700
|
1900
|
2150
|
2765
|
|
Tool post vertical travel
|
mm
|
1000/1250
/1400
|
1000/1250
|
1000/1250
|
1000/1400
|
1250/1400
/1600
|
|
Crossbeam travel
|
mm
|
1250/1650
/2150
|
1250/1650
/2150
|
1250/1650
|
1250/1650
/2150
|
1500/2000
/2650
|
|
Main motor
|
kw
|
AC55
|
AC55
|
AC55
|
AC55
|
AC55/75
|
|
Machine weight
|
t
|
32/34/36
|
39/42
|
40/43
|
43/45/48
|
60/65/70
|
|
Overall dimension
(L*W*H)
|
mm
|
5180*4700
*4800
|
6000*4860
*5000
|
6400*5050
*5200
|
6900*5200
*5700
|
9200*5800
*5800
|
