Bottle Material: PET Bottle
Cap: PE
Bottle Volume: 100-2500ml
Production Speed: 1000-36000bph
Suitable Bottle:
Height 170-320mm
Diameter 20-100mm
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
0.5%
-
Voltage:
-
220V / 380V /450V
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
MERCKPACK
-
Dimension(L*W*H):
-
1230*380*420mm
-
Weight:
-
1500 KG
-
Product name:
-
Carbonated Drink Filling Machine
-
Function:
-
bottle washing filling capping
-
Material:
-
SUS304
-
Suitable bottle:
-
PET bottle / Glass bottle
-
Bottle size:
-
200-2000ml
-
Filling material:
-
pure water/mineral water
Quick Details
-
Machinery Capacity:
-
8000BPH, 12000BPH, 6000BPH, 20000BPH, 3000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer
-
Filling Accuracy:
-
0.5%
-
Voltage:
-
220V / 380V /450V
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
MERCKPACK
-
Dimension(L*W*H):
-
1230*380*420mm
-
Weight:
-
1500 KG
-
Product name:
-
Carbonated Drink Filling Machine
-
Function:
-
bottle washing filling capping
-
Material:
-
SUS304
-
Suitable bottle:
-
PET bottle / Glass bottle
-
Bottle size:
-
200-2000ml
-
Filling material:
-
pure water/mineral water
Product Description

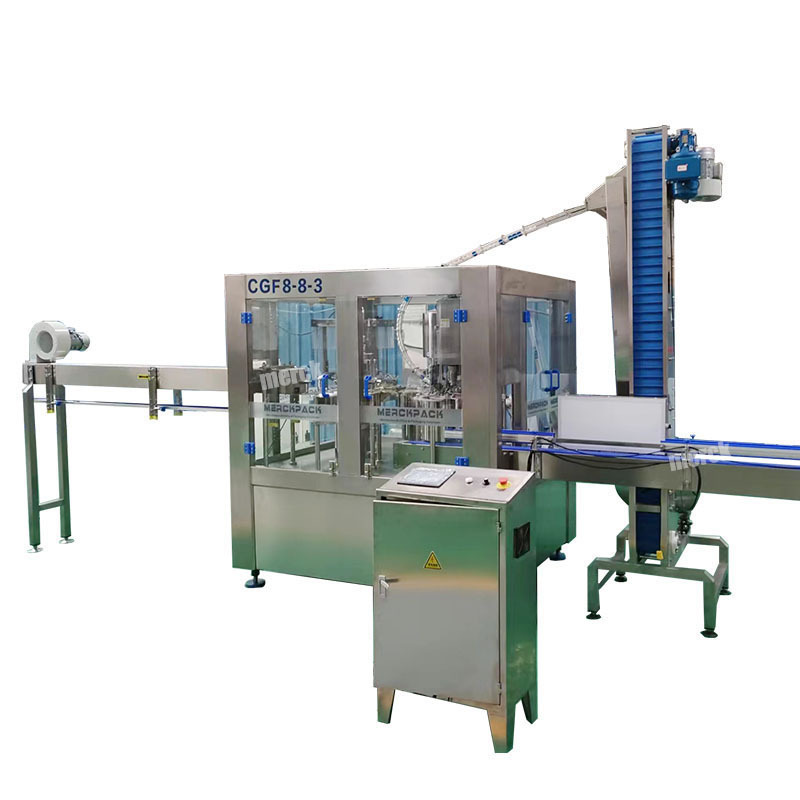

Full automatic Soda drink filling machines
Introductions of soda drink filling machines. This type of machine is suitable for filling and sealing aluminum canned beer and carbonated soft drinks. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling repose fully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system.
It is the preferred equipment for the medium beer and beverage plant. And we are able to provide the complete pop cans / tin can filling and package solution, from can depalletizer, can rinsing machine, can filling & sealing monoblock machine, leakage check, liquid nitrogen dosing machine, pasteurizer tunnel, blow dryer, carton package, film package system ,which is widely used for the beverage, beer, juice industry and so on.
It is the preferred equipment for the medium beer and beverage plant. And we are able to provide the complete pop cans / tin can filling and package solution, from can depalletizer, can rinsing machine, can filling & sealing monoblock machine, leakage check, liquid nitrogen dosing machine, pasteurizer tunnel, blow dryer, carton package, film package system ,which is widely used for the beverage, beer, juice industry and so on.
|
Technical Parameter---Carbonated Drinks Filling Machine
|
|
|
|
|
|
|
||||||
|
Model
|
DGF14-12-5
|
DGF16-16-5
|
DGF18-18-6
|
DGF24-24-8
|
DGF32-32-8
|
DGF40-40-10
|
||||||
|
Capacity@500ml
|
2000-3000
|
3000-4000
|
4000-5000
|
6000-8000
|
8000-12000
|
12000-15000
|
||||||
|
Bottle shapes
|
Circular, Square or Other
|
|
|
|
|
|
||||||
|
Bottle diameter(mm)
|
Dia50-Dia115mm
|
|
|
|
|
|
||||||
|
Bottle height (mm)
|
160-320mm
|
|
|
|
|
|
||||||
|
Compressor air
|
0.3-0.7Mpa
|
|
|
|
|
|
||||||
|
Washing meidium
|
Aseptic water
|
|
|
|
|
|
||||||
|
Rinsing pressure
|
>0.06Mpa <0.2Mpa
|
|
|
|
|
|
||||||
|
Application
|
water bottling plant sale
|
|
|
|
|
|
||||||
|
Total power (kw)
|
4.4
|
4.8
|
5.2
|
6.2
|
7.5
|
8.2
|
||||||
|
Overall dimensions(m)
|
2.3*1.9
|
2.5*1.9
|
2.8*2.15
|
3.1*2.5
|
3.8*2.8
|
4.5*3.3
|
||||||
|
Height(m)
|
2.3
|
2.5
|
2.5
|
2.5
|
2.5
|
2.6
|
||||||
|
Weight(kg)
|
3000
|
4000
|
4500
|
6000
|
8500
|
10000
|
||||||
Soda drink / Sparkling beverage / Carbonated drink filling machines
Details Images
Working Principles of soft drink filling machines
The carbonated beverage filling machine is self-designed and manufactured according to the principle of equal pressure filling,which can fill liquid into the bottle washing machine sent by the bottle washing machine. The filling valve adopts an equal pressure mechanical valve, the filling is fast and sensitive, and the filling level has high accuracy. The centering guide adopts guide rod centering and unique bottle mouth clamping technology, which can ensure the
accurate sealing between the bottle mouth and the filling valve and reduce the leakage of materials from the bottle mouth. The main transmission adopts gear transmission, that is, open combined transmission, which has high efficiency, low noise, long service life, convenient maintenance and sufficient lubrication. The frequency converter is used to control the speed of the main motor of the machine, and the machine adopts stepless frequency conversion control. The bottle guide system has a simple structure and can be quickly and easily replaced according to the bottle type.
The whole machine adopts a bottleneck structure for transportation. The whole machine is automatically controlled by PLC, and online display of bottle jams, missing bottle caps and other faults. The material in the filling tank is automatically controlled, and the liquid level sensor detects the height of the liquid level to ensure a stable liquid level and reliable filling.
The carbonated beverage filling machine is self-designed and manufactured according to the principle of equal pressure filling,which can fill liquid into the bottle washing machine sent by the bottle washing machine. The filling valve adopts an equal pressure mechanical valve, the filling is fast and sensitive, and the filling level has high accuracy. The centering guide adopts guide rod centering and unique bottle mouth clamping technology, which can ensure the
accurate sealing between the bottle mouth and the filling valve and reduce the leakage of materials from the bottle mouth. The main transmission adopts gear transmission, that is, open combined transmission, which has high efficiency, low noise, long service life, convenient maintenance and sufficient lubrication. The frequency converter is used to control the speed of the main motor of the machine, and the machine adopts stepless frequency conversion control. The bottle guide system has a simple structure and can be quickly and easily replaced according to the bottle type.
The whole machine adopts a bottleneck structure for transportation. The whole machine is automatically controlled by PLC, and online display of bottle jams, missing bottle caps and other faults. The material in the filling tank is automatically controlled, and the liquid level sensor detects the height of the liquid level to ensure a stable liquid level and reliable filling.
WASHING PARTS
1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water
thoroughly and save flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.
1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water
thoroughly and save flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.
FILLING PARTS
1.Filling method for equal pressure filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.
1.Filling method for equal pressure filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.
CAPPING PARTS
1.Automatic check,no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of
photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
5.High efficiency centrifugal principle.
1.Automatic check,no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of
photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
5.High efficiency centrifugal principle.
Complete Line Solution
Automatic PET Bottle Blow Molding machine
Automatic blowing machine adopts our most advanced blowing technologies.
This machine is a fully automatic,high intelligent,stable
and reliable blowing machine,with simple structure,and low energy consumption.
and reliable blowing machine,with simple structure,and low energy consumption.
It is very popular and well used in food
,beverages,cosmetics,pharmaceutical industry.
,beverages,cosmetics,pharmaceutical industry.
Laser Printer
Laser Marking Machine--- For products in assembly line & manually coding, printing and marking.
The CO2 laser marking machines are powerful and versatile, they deliver flexible, high speed, high quality coding across a wide variety of materials with the ability to produce multiple lines of text.
Our laser marking machines are designed to fit in limited spaces and integrate into a variety of production lines.
Automatic PE film shrink wrapping machine
There are mainly two kinds of case packing machine, film shrink wrapping machine and carton packing machine.
For film shrink
wrapping machine, there is also with for unprinted film and for printed film, then there is also shrink film with carton tray. For
carton packing machine, there is tape sealing type and hot glue sealing type.
wrapping machine, there is also with for unprinted film and for printed film, then there is also shrink film with carton tray. For
carton packing machine, there is tape sealing type and hot glue sealing type.
Production Line Process
Flow Chart :Complete Water Filling Line Project
Layout Drawings Design (CAD )
Customer Production Site
Packing and Delivery
Our Factory
ZHANGJIAGANG MAERCK PACKING MACHINER C0.,LTD.
Zhangjiagang Merckpack Machiney Co., Ltd. was founded in 2004, our company covers an area of 13000m2. We are a leading enterprise in research and production of liquid and beverage packing machines. Our main products includes: water treatment plant, beverage and daily chemical filling machine, labeling machine, film shrink wrapping and carton packing machine, beverage processing and production lines.
We are not only a machine manufacturer, we can also supply turnkey project according to customers’ request, including workshop design, machine layout design, water, gas, electric cable layout design, label and bottle design and so on. Our mission is to ensure customers’ plant properly working and help customers win their market.
We are not only a machine manufacturer, we can also supply turnkey project according to customers’ request, including workshop design, machine layout design, water, gas, electric cable layout design, label and bottle design and so on. Our mission is to ensure customers’ plant properly working and help customers win their market.
FAQ
1.
Q For a new starter, how can you help me start and run a water or beverage bottling plant?
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your
local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager.
local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager.
2.Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
3.Q How can we check our machines if we order the machines from you?
A We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
4.Q How can I know the quality of your machines before I order?
A We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories and see the machines running.You are also very welcome to visit our company in China to see the machine running in our factory.
5.Q Can your company provide turnkey project from A to Z?
A Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
