Quick Details
-
Brand Name:
-
SAVING
-
Model Number:
-
DTZ1218
-
Accuracy Class:
-
Active level 1
-
Output Voltage:
-
220/380V
-
Operating Temperature:
-
-25~60 degree
-
Dimensions:
-
288 x 167 x 72 mm
-
Name:
-

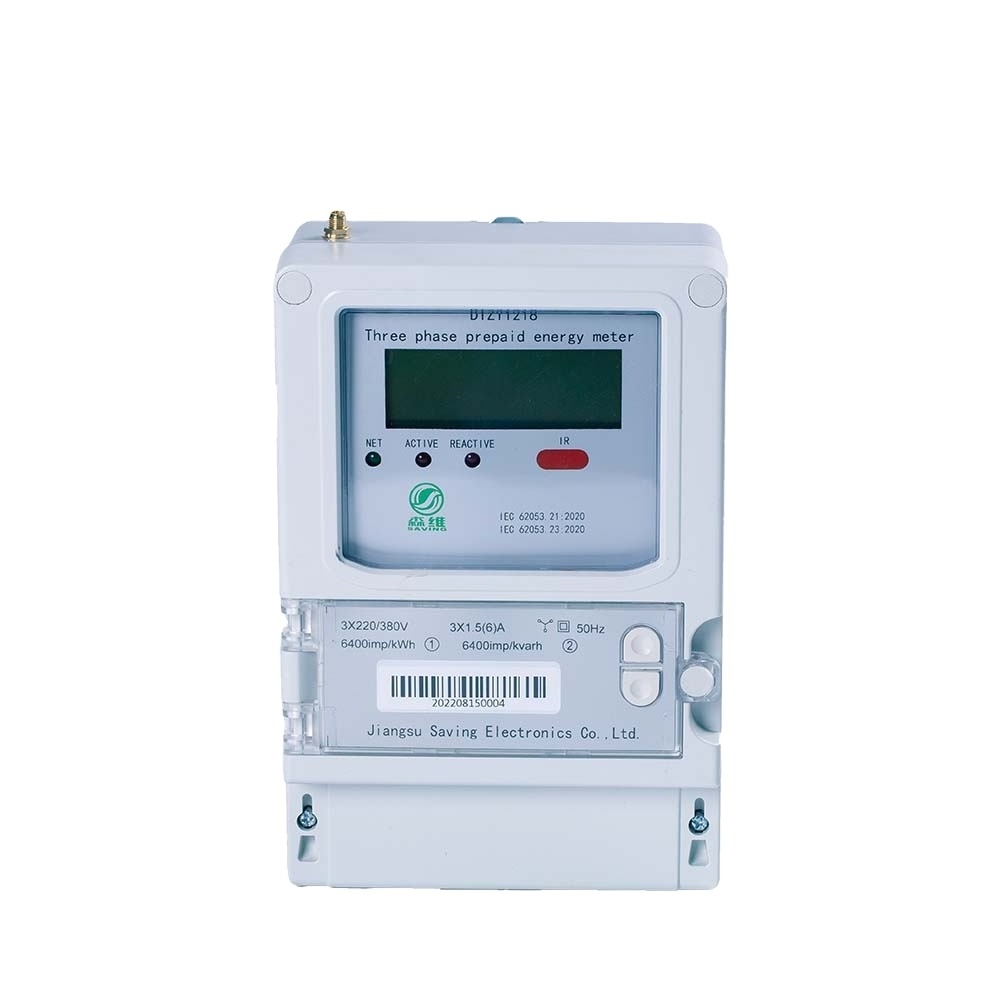

Three-phase Active Smart Energy Meter
-
Color:
-
White
-
Reference Voltage:
-
3X220/380V
-
Frequency:
-
50Hz
-
Current Specification:
-
3X1.5(6)A, 3X10(40)A, 3X20(80)A
-
Accuracy Level:
-
Active level 1
-
Power Consumption:
-
Voltage Line: <=1.5W, 10VA; Current Line: <=1VA
-
Humidity Range:
-
40%~60%
-
Certificate:
-
ISO9001
-
OEM/ODM:
-
Support
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-999999
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SAVING
-
Model Number:
-
DTZ1218
-
Accuracy Class:
-
Active level 1
-
Output Voltage:
-
220/380V
-
Operating Temperature:
-
-25~60 degree
-
Dimensions:
-
288 x 167 x 72 mm
-
Name:
-
Three-phase Active Smart Energy Meter
-
Color:
-
White
-
Reference Voltage:
-
3X220/380V
-
Frequency:
-
50Hz
-
Current Specification:
-
3X1.5(6)A, 3X10(40)A, 3X20(80)A
-
Accuracy Level:
-
Active level 1
-
Power Consumption:
-
Voltage Line: <=1.5W, 10VA; Current Line: <=1VA
-
Humidity Range:
-
40%~60%
-
Certificate:
-
ISO9001
-
OEM/ODM:
-
Support
Recommend Products
Product Paramenters
|
Measurement function
|
Voltage
|
Voltage waste
|
|
error<10VA
|
||
|
|
|
Impedance
|
|
>2MΩ
|
||
|
|
|
Accuracy grade
|
|
±0.2%
|
||
|
|
Current
|
Current specification
|
|
1.5（6）A 5（60）A 20（80）A 10（100）A
|
||
|
|
|
Current waste
|
|
error<4VA
|
||
|
|
|
Accuracy grade
|
|
±0.2%
|
||
|
|
Power
|
|
|
Active, reactive and power error±0.2%
|
||
|
|
Grid frequency
|
|
|
45-65Hz error±0.2%
|
||
|
|
electric energy
|
|
|
Active power level 1&2
|
||
|
Digital signal
|
Electric pulse output
|
|
|
Active optocoupler output
|
||
|
|
Pulse constant
|
|
|
6400imp/KWh 400imp/KWh
|
||
|
Starting current
|
|
|
Connect directly
|
0.004In (level 1) reactive:0.004In (level 2)
|
||
|
|
|
|
Connect by CT
|
0.002Ib
|
||
|
Communication
|
Interface and communication protocol
|
|
|
RS485¨ Modbus¨ DL/T 645-2007¨
|
||
|
|
Mailing address range
|
|
|
Modbus 1~247
|
||
|
|
Baud rate
|
|
|
1200bps~9600bps
|
||
|
Environment
|
Altitude
|
|
|
atmospheric pressure：63.0kPa～106.0kPa（﹤4000m above sea level ）Except for special order requirements
|
||
Details Images
Application
Why Choose Us
FAQ
1. Q: What after-sales service is provided?
A: Usually, we provide
online technical services
, including product instructions, remote software debugging, and online video guidance. If needed,
we can go to customers' site
for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.
2. Q: Are you a direct manufacturer and exporter from China?
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
