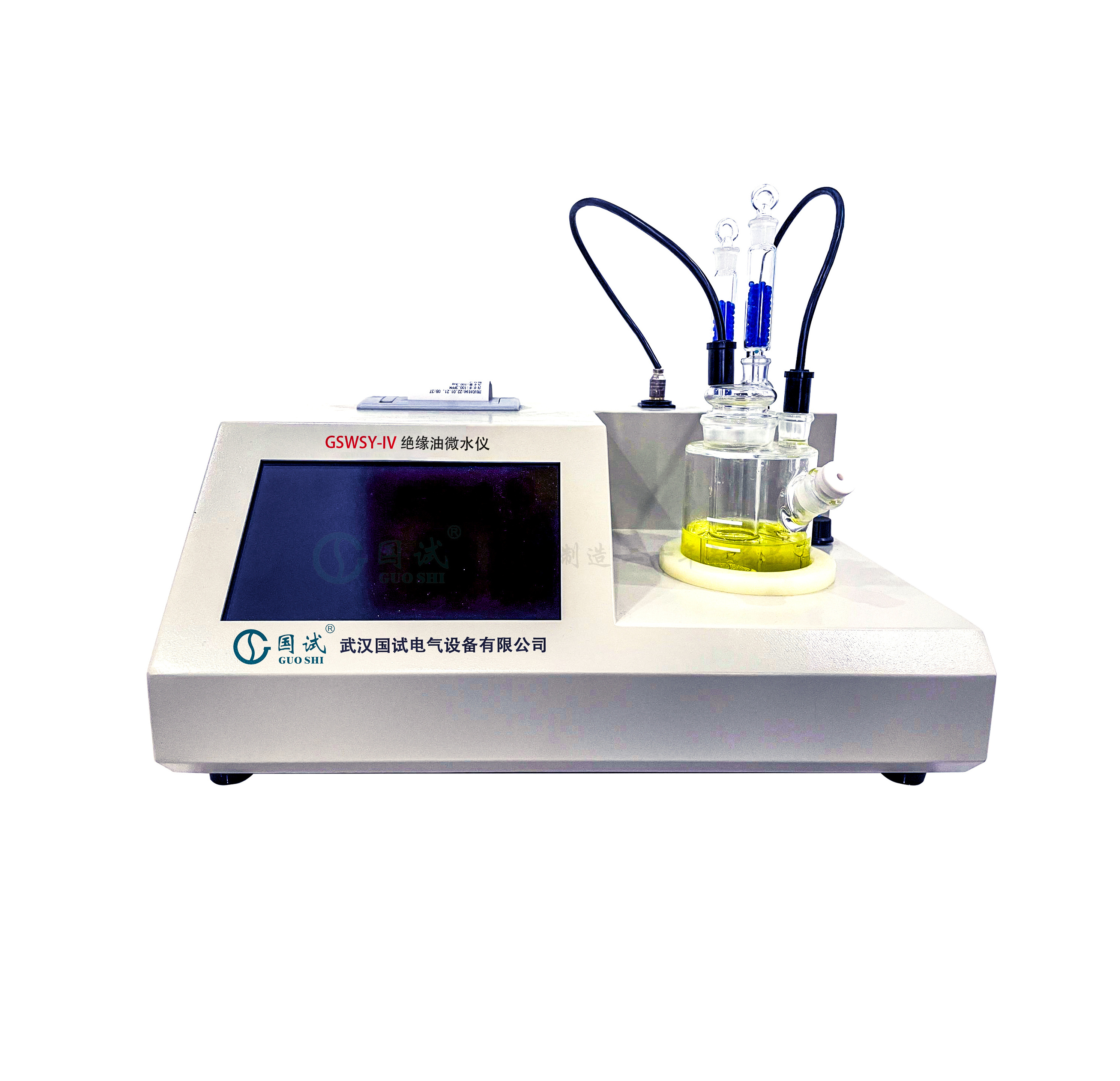

This type of insulation oil micro water meter uses the Karl Fischer Coulomb titration method to determine trace moisture of different substances, which is the most reliable method. The micro moisture analyzer has successfully applied this method, using the most advanced automatic control circuit, a 32-bit embedded microprocessor as the main control core, and embedded in a mini operating system. This makes the instrument more reliable and convenient to use. Its analysis speed is fast, operation is simple, accuracy is high, and automation is strong. Widely used in petroleum, chemical, power, railway, pesticide, pharmaceutical, environmental protection and other departments.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GSWSY-IV
-
Power supply:
-
electronic
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Wuhan Guoshi
-
Model Number:
-
GSWSY-IV
-
Power supply:
-
electronic
Product Description
Product Features
1. Using a 32-bit embedded microprocessor as the main control core, embedded in a mini operating system.
2. Constant pressure detection, high accuracy, fast measurement speed, stable and reliable.
3. Color touch screen, full numeric keyboard, simpler operation, and convenient and fast data calculation.
4. Contains 4 calculation formulas to meet customer needs.
5. The micro thermal printer has a time record for easier searching.
6. A brand new appearance designed based on ergonomics.
7. Innovative and optimized operating software for a unique touch experience.
Product Paramenters
|
titration method: coulometric titration (coulomb analysis)
|
|
display: color LCD touch screen
|
|
electrolysis current control: 0 ~ 400mA automatic control
|
|
measurement range: 0ug ~ 200mg
|
|
sensitive valve: 0.1 & micro;g H2O
|
|
accuracy: 10 & micro;g ~ 1000 & micro;g ± 3 & micro;g More than 1mg no more than 0.3%
|
|
printer: mini thermal printer
|
|
power supply: 220V ± 10%, 50Hz
|
|
power:< 40W
|
|
use of ambient temperature: 5~40 ℃
|
|
use environment humidity: 85% or less
|
|
dimensions: 340 × 300 × 350
|
|
weight: about 5.5kg
|
Configuration List
|
Category
|
Number
|
Name
|
Unit
|
Quantity
|
|
Host
|
1
|
Trace moisture meter
|
set
|
1
|
|
accessories
|
1
|
(1 electrolytic cell +1 electrolytic electrode +1 measuring electrode +1 set of drying tube +3 grinding plugs +1 stirring sub +1
sample grinding plug +1 bag of color-changing silica gel) |
Set
|
1
|
|
|
2
|
power cord
|
root
|
1
|
|
|
3
|
0.5 μl micro-injector
|
unit
|
1
|
|
|
4
|
50 μl micro-injector
|
unit
|
1
|
|
|
5
|
1ml injector
|
unit
|
1
|
|
|
6
|
closed needle (9#)
|
unit
|
1
|
|
|
7
|
Silicone pad
|
units
|
10
|
|
|
8
|
vacuum grease
|
unit
|
1
|
|
|
9
|
Karl Fischer Reagent (Electrolyte)
|
unit
|
1
|
|
|
10
|
Instructions for use
|
copy
|
1
|
|
|
11
|
Certificate
|
copy
|
1
|
|
|
12
|
Fixing shaft and clip
|
Set
|
1
|
Product packaging
