- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Size:
-
3300*1150*1350mm
-
Loading capacity:
-
2500 kg
-
Net weight:
-
850 kg
-
Front tyre:
-
5.00-14
-
Rear tyre:
-
6.50-16
-
Overall size:
-
3450*1100*1400mm
-
Cargo box size:
-
1800*1100*500mm
-
Driving method:
-
22hp ZS1115 standard Changchai diesel generator
-
Transmission type:
-
Shifeng 8-speed rear axle
-
Front shock absorption:
-
Shifeng double row shock absorption
-
Color:
-
Can be customized
Quick Details
-
Power:
-
> 800W
-
Displacement:
-
> 250cc
-
Brand Name:
-
LIANKE
-
Place of Origin:
-
Henan, China
-
Size:
-
3300*1150*1350mm
-
Loading capacity:
-
2500 kg
-
Net weight:
-
850 kg
-
Front tyre:
-
5.00-14
-
Rear tyre:
-
6.50-16
-
Overall size:
-
3450*1100*1400mm
-
Cargo box size:
-
1800*1100*500mm
-
Driving method:
-
22hp ZS1115 standard Changchai diesel generator
-
Transmission type:
-
Shifeng 8-speed rear axle
-
Front shock absorption:
-
Shifeng double row shock absorption
-
Color:
-
Can be customized
Details Images

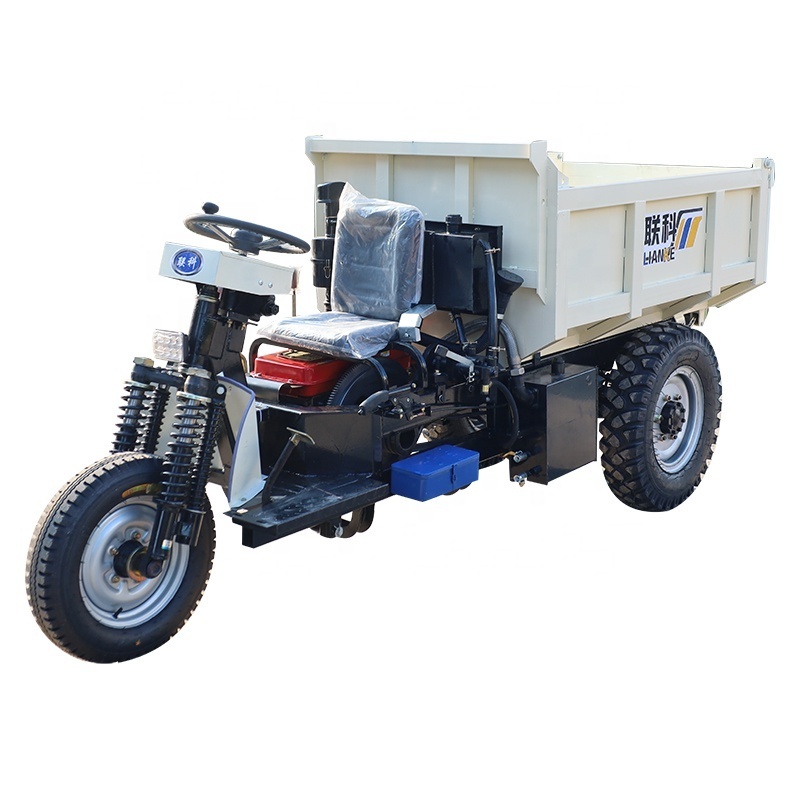

three wheel motorcycle
is suitable for underground roadway mine, iron ore mine and rare metal mine. The truck has many advantages, such as high power, small footprint, compact sound, convenient and flexible operation, energy-saving and cost-saving, and convenient operation. The dump truck can be equipped with different engines according to the use environment and use, which can be customized according to customer requirements.
|
LK270D main parameters
|
|
|
|
Overall size
|
3450*1100*1400mm
|
|
|
Cargo box size
|
1800*1100*500mm
|
|
|
Loading capacity
|
2500KG
|
|
|
Net weight
|
850KG
|
|
|
Tires
|
5.00-14/6.50-16
|
|
|
Engine power
|
ZS1115
16.2 KW/22HP (CHANG CHAI)
|
|
|
Transmission type
|
Shifeng 8-speed rear axle
|
|
|
Starting battery
|
12V105Ah
|
|
|
Shock absorption type
|
"Shifeng" double-row shock absorption
|
|
|
New addition of equipment
|
Tail gas purification device
|
|
|
Logo
|
We can customize VIN plate information and logo for container order.
|
|
|
Optional device
(need extra cost)
|
Can be heighten the cargo box
|
|
|
|
Semi-enclosed shed with tempered glass.
|
|
|
|
Two seats can be installed
|
|
|
|
Upgradeable to 24 HP(L24 CHANG CHAI)
|
|
This photo is taken by our factory, please click on the photo to jump to our factory VR shooting and view this video.
Product Description
Latest front shock absorption
It has been upgraded from the ordinary
double row
shock absorption
to the double row shock absorption with the "Shifeng" brand name and qualified logo.
Diesel engine
The standard configuration of the diesel engine is CHANGCHAI ZS1115 22HP/16.2 KW.
Optional CHANGCHAI 24HP, extra money.
"
Shifeng
" 8-speed rear axle
Upgrading from the 7-gear rear axle to the 8-gear rear axle, the gearbox is enlarged and the quality is better.
U-shaped bracket
The "U" bracket of the 8th gear rear axle is inverted and it's attached to the ear of the rear axle so that the "U" bracket will not shift on the rear axle when the
three wheel motorcycle
is operated.
Upgrade gantry
The new gantry adopts laser cutting technology and looks very beautiful.
Steering power
Equipped with power steering, steering under heavy loads is very easy.
Tire
The standard configuration of tires is front 5.00-14/rear 6.50-16.
Upgrade the steel ring to a fully enclosed thickened steel ring.
Frame oil tank
The advantages of a frame oil tank are sturdy and wear-resistant.
Add tool box and change battery position
A tool box has been added, some on-board tools can can be put.
The battery is fixed from the outside of the vehicle to the inside of the frame, which can be waterproof and prevent the shell from cracking due to collision.
Engine oil pan protective cover
An engine oil pan protective cover is added for free.
An increase in the thickness of the bottom plate of the bucket
The thickness of the bottom plate of the box bucket has changed from the original 3mm to 5mm, and the side plate is 3mm, which is more robust and durable.
Wind deflector
The standard configuration is a large windshield with lights.
A simple small wind deflector can be selected as needed (the price of the dumper can be reduced), which has the advantage of being small in size, making it more convenient for dumper to turn inside the mine. When driving on the edge of a cliff, driver can better see the specific position of the front wheel.
Brake pot
The diameter of the standard brake pot is 28cm
An optional brake pot with a diameter of 32cm (extra money) has the advantage of improving braking capacity and reducing braking distance under heavy loads.
Add reinforced crossbeam(extra money)
The raw material of the crossbeam is channel steel, which is relatively sturdy.
"CHONGJIU" brand tire(extra money)
In addition to the standard tires, the rear tires can be optionally equipped with the famous Chinese brand "CHONGJIU" 700-16.
It is a herringbone tire with strong grip and wear resistance.
Adjustment of cargo box height
(extra money)
The height of the standard cargo box is 500mm, and the height of the cargo box can be increased to 600mm as needed
Add hinges
(extra money)
The advantage of adding hinges is that it can save manpower when manually feeding.
Customized items (
extra money
)
Carport Double
-seat
Packing & Delivery
LCL Delivery
For order one unit or order less container load we adopt standard iron frame packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
For order one unit or order less container load we adopt standard iron frame packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
FCL Delivery
For the order quantities more than 8 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.One 20GP can hold 8 sets. One 40HC can hold 16 sets.
For the order quantities more than 8 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.One 20GP can hold 8 sets. One 40HC can hold 16 sets.
