Quick Details
-
Model Number:
-
6mm to 25mm
-
Name:
-
YINLI Auto Ac Hose Pipe Fitting R134a Galaxy Ac Hose
-
Tube:
-
CSM/EPDM
-
Reinforcement:
-
High Tensile Fiber Braid
-
Cover:
-
EPDM
-
Color:
-
Black or custom
-
Length:
-
50m or custom
-
Size:
-
5/16 to 3/4 inch
-
Temperature:
-
-40°C to +135°C
-
Application:
-
Used in air conditioning system of vehicles, cars and domestic
-
Certification:
-
SAE J2064
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Daxinyin
-
Model Number:
-
6mm to 25mm
-
Name:
-
YINLI Auto Ac Hose Pipe Fitting R134a Galaxy Ac Hose
-
Tube:
-
CSM/EPDM
-
Reinforcement:
-
High Tensile Fiber Braid
-
Cover:
-
EPDM
-
Color:
-
Black or custom
-
Length:
-
50m or custom
-
Size:
-
5/16 to 3/4 inch
-
Temperature:
-
-40°C to +135°C
-
Application:
-
Used in air conditioning system of vehicles, cars and domestic
-
Certification:
-
SAE J2064

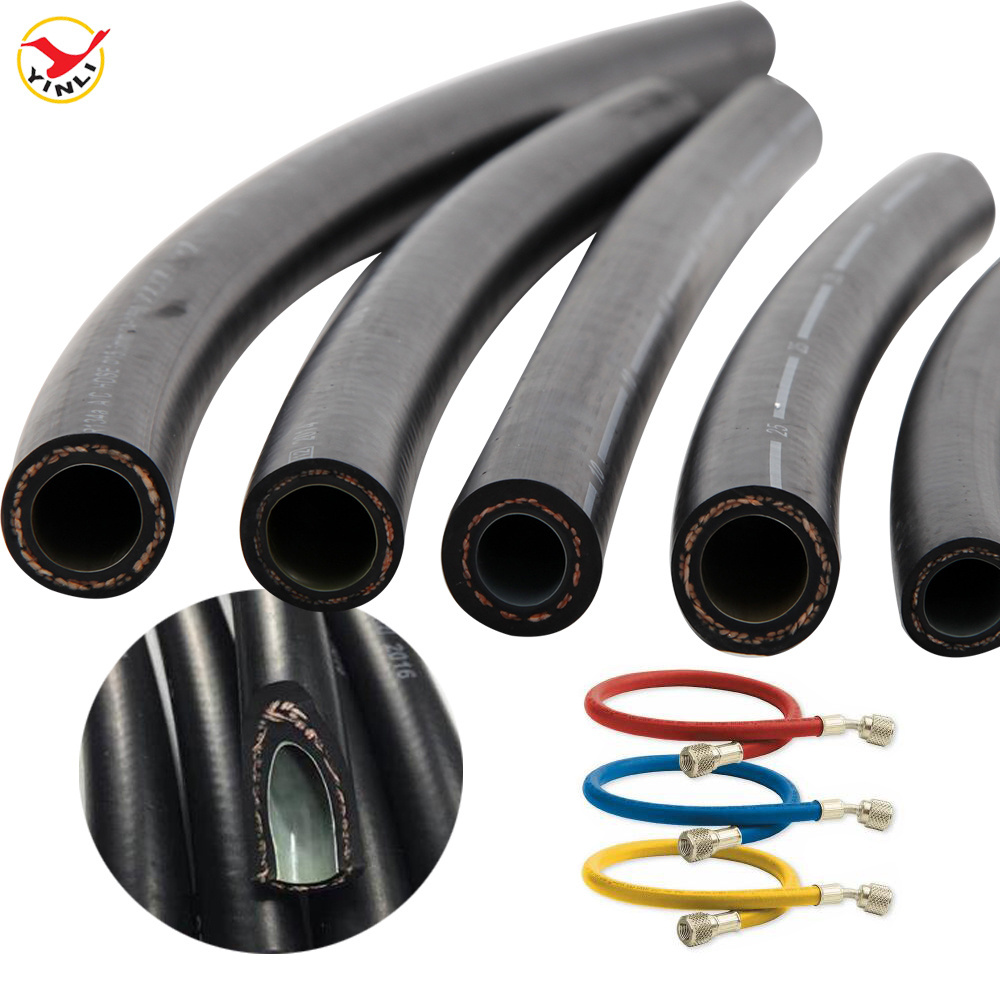

OEM YINLI Auto Ac Hose Pipe Fitting R134a Galaxy Ac Hose
Application: Air Conditioning Hose, which is also called refrigerant pipe, is used in automotive cooling, air-conditioning systems, industrial air conditioners filling and refrigerant conveying.
Tube: CSM/EPDM
Barrier:
Nylon alloy
Buffer:
EPDM/NBR
Reinforcement:
high tensile fiber
Cover:
EPDM
Temperature: -40°C ~ +135°C
C olor: Black or custom
|
Size |
Inside Diameter |
Outside Diameter |
Working Pressure |
Burst Pressure |
Band Radius |
Weight |
|
Inch |
mm |
mm |
Max. Mpa |
Min. Mpa |
Min. mm |
g/m |
|
5/16 |
8.2±0.4 |
15.2±0.5 |
3.5 |
28 |
55 |
146 |
|
13/32 |
10.2±0.4 |
17.2±0.5 |
3.5 |
22 |
65 |
172 |
|
7/16 |
11.5±0.4 |
18.4±0.5 |
3.5 |
23 |
70 |
196 |
|
1/2 |
13.2±0.4 |
20.8±0.5 |
3.5 |
20 |
75 |
231 |
|
5/8 |
15.5±0.4 |
22.8±0.5 |
2.0 |
18 |
85 |
257 |
|
3/4 |
18.5±0.4 |
27.5±0.5 |
1.5 |
18 |
100 |
367 |
