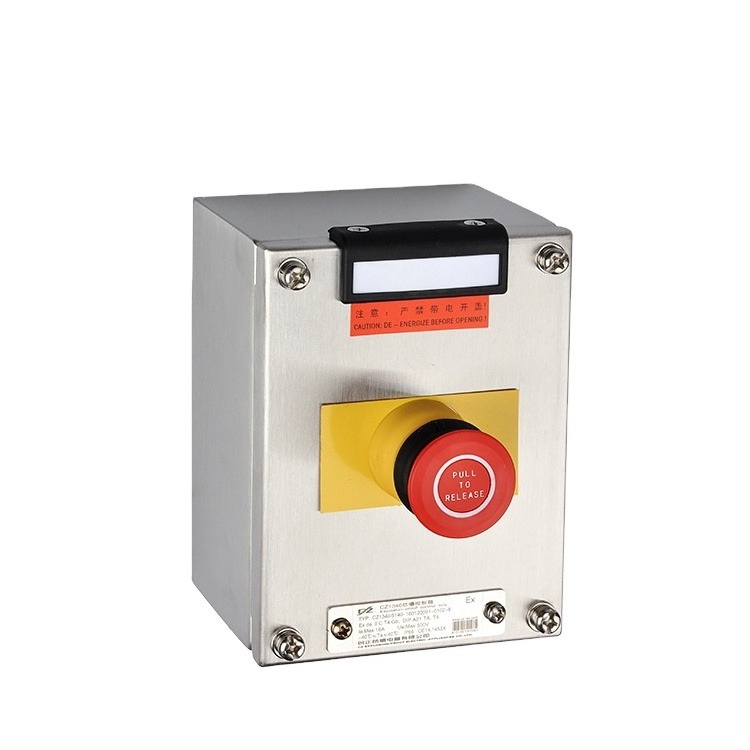

IECEX and ATEX Certified Explosion-proof Metal Electrical Switch Box

IECEX and ATEX Certified Explosion-proof Metal Electrical Switch Box

FOB Reference Price: Get Latest Price

≥5 Pieces

US $120

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CZ

Model Number:: CZ1342

External Size:: 300*200*91

Name:: Explosion-proof Electrical Control Box

Intended use:: zone 1 and zone 2, zone 21 and zone 22

Certificate:: IECEx, ATEX

Material of enclosure:: 304,316L,Carbon steel

Cable entry:: 2x M25, cable outer diameter 8-17mm

Ambient temperature use:: -40°C ~ +40°C/55°C

Rated voltage:: Max 380V

Rated current:: Max 16A

Component terminal:: 2.5 mm2

PE terminals:: 4 mm2

Quick Details

Protection Level:: IP66

Type:: Control Box

Place of Origin:: Zhejiang, China

Brand Name:: CZ

Model Number:: CZ1342

External Size:: 300*200*91

Name:: Explosion-proof Electrical Control Box

Intended use:: zone 1 and zone 2, zone 21 and zone 22

Certificate:: IECEx, ATEX

Material of enclosure:: 304,316L,Carbon steel

Cable entry:: 2x M25, cable outer diameter 8-17mm

Ambient temperature use:: -40°C ~ +40°C/55°C

Rated voltage:: Max 380V

Rated current:: Max 16A

Component terminal:: 2.5 mm2

PE terminals:: 4 mm2

all our certifications is REAL ONE.

NOT FAKE , NOT FAKE , NOT FAKE !!!

PLEASE CONTACT US TO SHOW YOU!!!

Certification	Ex mark
IECEx	Ex db eb ia/ib mb op is q IIC / IIB T6/T5/T4 Gb ; Ex tb op is IIIC T80°C/T95°C/T130°C Db
ATEX	Ex db eb ia/ib mb op is q IIC / IIB T6/T5/T4 Gb ; Ex tb op is IIIC T80°C/T95°C/T130°C Db

Intended use	zone1 and zone2 zone21 and zone22
Ambient temperature	-40°C≤Ta≤+40°C/ +55°C
Degree of protection	IP66
Material of enclosure	304(On the surface of wire drawing processing) 316L (On the surface of wire drawing processing) Carbon steel(Surface spraying plastic powder)
Rated voltage/current	Max 380V, Max 16A
Component terminal	2*2.5 mm²
PE terminals	4 mm ²

Descriptions:
The enclosure of explosion-proof stainless steel box is made of 304 or 316L ,can be used in hazardous industrial areas. It has characters of high anti-corrosion ,waterproof and dust proof .Therefore they satisty the requirements in chemical,petroleum and sea industries.
This series have 8 kinds standard enclosure, Built-in board front mounting rail type component ,According to the components quantity choose different speclfications enclosure. For easy choice, there are 4 kinds of products to be standard products. Except wall type mounting ,also can choice vertical foot plate for vertical mounting. Can also be customized according to user requirements design.

Order specifications:
