Quick Details
-
Brand Name:
-
YUJIE
-
Model Number:
-
YJ-2009BP
-
type:
-
optical
-
Eyepiece:
-
WF10X/18mm
-
Objective:
-
45mm Strain Free Achromatic 4X/10X/40X/63x
-
Working Stage:
-
Diameter 160mm.360degree Rotatable and Graduated 1Increments
-
Focusing System:
-
Coaxial Coarse and Fine Focusing,: 35mm
-
Illumination::
-
Halogen Lamp 6V20W
Quick Details
-
Theory:
-
Biological Microscope
-
Drawtube:
-
BINOCULAR
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUJIE
-
Model Number:
-
YJ-2009BP
-
type:
-
optical
-
Eyepiece:
-
WF10X/18mm
-
Objective:
-
45mm Strain Free Achromatic 4X/10X/40X/63x
-
Working Stage:
-
Diameter 160mm.360degree Rotatable and Graduated 1Increments
-
Focusing System:
-
Coaxial Coarse and Fine Focusing,: 35mm
-
Illumination::
-
Halogen Lamp 6V20W
|
Eyepiece
|
Wide Field Plane-scope Eyepiece WF10X/18mm with Scale of Crosshair and 0.1mm and Wide Field Plane-scope Eyepiece WF10X/18mm
|
|
Objective
|
45mm Strain Free Achromatic Objective: 4X, 10X, 40X(s), 63X(s)
|
|
Viewing Head
|
Sliding Binocular head, Interpupillary Distance: 55-75mm; 45°inclined, 360° rotatable
|
|
|
Sliding Trinocular Head
|
|
Total Magnification
|
40X-630X
|
|
Analyzer and Polarizer
|
Rotatable Analyzer with Graduation 0º-90º,Sliding out of Optical Path;
Bertrand Lens, Sliding Out of Optical Path;Optical Compensator: λSlip (first class red),1/4λSlip, Quartz Wedge Polarize: Under the Stage, 0º Adjustable, 360º Rotatable |
|
Stage
|
Revoving Round Stage:Ø160mm.360ºRotatable and Graduated 1ºIncrements,Minimum Resolution 6'
|
|
Condenser
|
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter; ABBE Condenser:N.A.1.25
|
|
Focusing Adjustment
|
Coaxial Coarse and Fine Focusing Adjustable Mechanism: 35mm, Fine Focusing Adjustable Precision: 0.002mm
|
|
Illumination
|
Built-in Adjustable Brightness 6V/20W Lamp and Kohlar Illumination System
|
|
Net Weight
|
10kg
|

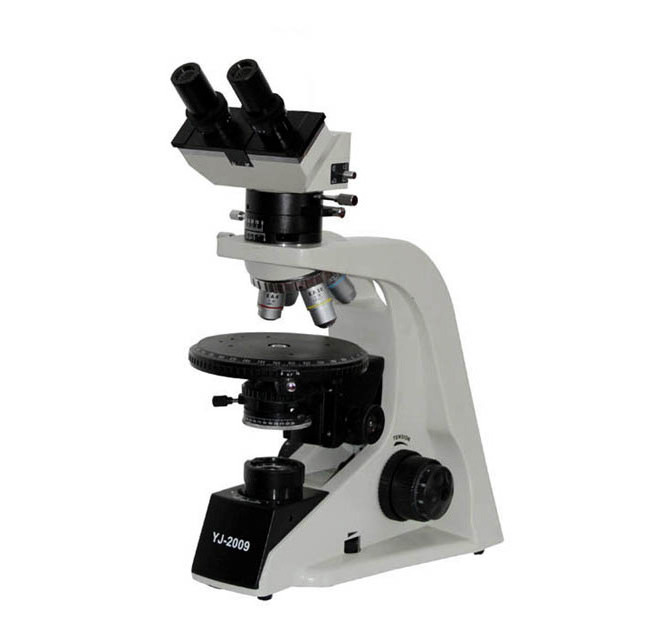

This is a simple polarizing microscope with advanced multifunction. It can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment and physic inspection. It is also widely used in academic demonstration and research.
The magic world under the microscope
The magic world under the microscope
The magic world under the microscope
The magic world under the microscope
1:How long you can fulfill the order normally?
Usually we will take 3-15 days to produce the new slides,which is all based on the quality first.
2:What is your minimum order quantity?
Our MOQ is 1.
3:How long the transportation take?
The time depends on the delivery method.which depends on the transportation,almost 3-7 working days.
4:What is the transportation?
Usually We send the goods by air,small order is best to choose international express,such as DHL,FEDEX,EMS,UPS,TNT,Aramex is
better for middle east etc.Big orders are suitable for the delivery by sea.
Usually we will take 3-15 days to produce the new slides,which is all based on the quality first.
2:What is your minimum order quantity?
Our MOQ is 1.
3:How long the transportation take?
The time depends on the delivery method.which depends on the transportation,almost 3-7 working days.
4:What is the transportation?
Usually We send the goods by air,small order is best to choose international express,such as DHL,FEDEX,EMS,UPS,TNT,Aramex is
better for middle east etc.Big orders are suitable for the delivery by sea.
