- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
40-230bag/min
-
Weight (KG):
-
800
-
Voltage:
-
220v/50hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TENGLI
-
Dimension(L*W*H):
-
3800*670*1500MM
-
Core Components:
-
other
-
Product name:
-
Multi-Function Packaging Machine
-
Bag type:
-
Pillow Bag
-
Main Function:
-
Wrapping Packing
-
Usage:
-
Candy
-
Keyword:
-
Automatic Conveying Packing Machine
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Function:
-
Wrapping
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
40-230bag/min
-
Weight (KG):
-
800
-
Voltage:
-
220v/50hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TENGLI
-
Dimension(L*W*H):
-
3800*670*1500MM
-
Core Components:
-
other
-
Product name:
-
Multi-Function Packaging Machine
-
Bag type:
-
Pillow Bag
-
Main Function:
-
Wrapping Packing
-
Usage:
-
Candy
-
Keyword:
-
Automatic Conveying Packing Machine
-
After-sales Service Provided:
-
Online Support
Product Description

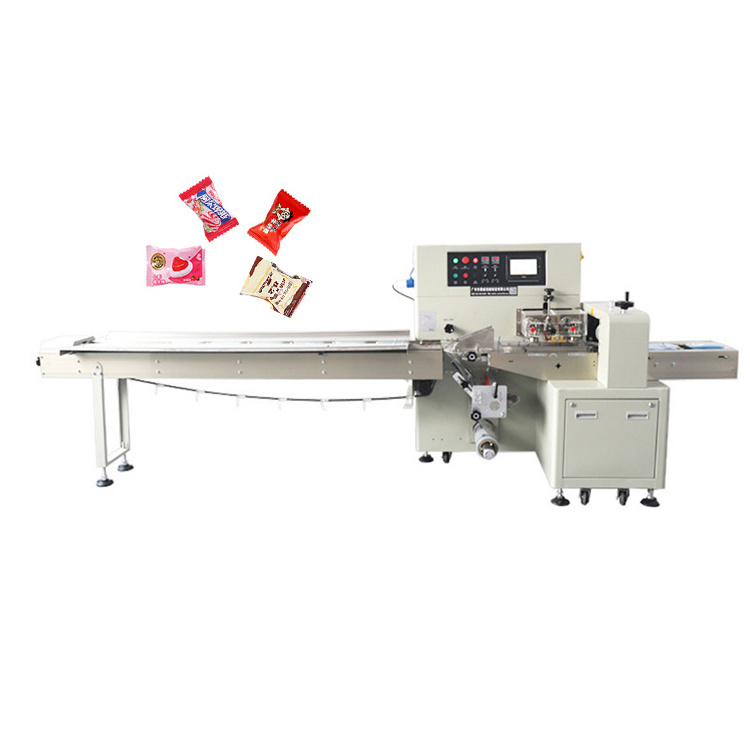

Candy packaging machine / multi-function packaging machine
1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
Recommend Products
|
Model
|
THB-250
|
THB-320
|
THB-400
|
|
Film width
|
Max.250mm
|
110—320mm
|
Max.400mm
|
|
Bag Length
|
65-190mm 120-280mm
|
80-230mm，100-300mm
|
130-320mm
|
|
Products High
|
5-40m（customizable）
|
5-40mm（customizable）
|
5-50mm(customizable）
|
|
Roller diameter)
|
Max.330mm
|
Max.330mm
|
Max.330mm
|
|
Packing speed
|
40-230 bags/min
|
30-280 bags/min
|
40-230bags/min
|
|
Power
|
20V50HZ 2.5kw
|
220V50HZ 2.8KW
|
220V50HZ 3KW
|
|
Size(mm)
|
(L)3770x(W)670x(H)1450mm
|
(L)4000x(W)900x(H)1500mm
|
(L)4100x(W)950x(H)1520mm
|
|
Weight
|
800kg
|
800kg
|
900kg
|
1:Date CoderOptional Accessories
2:Touchable Screen
3:Automatic Punching Device
4:Alternative sealing patterns and notch
5:Auto labeling device
6:Deoxidizer chute device
7:Gas flushing device
8:Alcohol spraying device
9:Auto feeder
2:Touchable Screen
3:Automatic Punching Device
4:Alternative sealing patterns and notch
5:Auto labeling device
6:Deoxidizer chute device
7:Gas flushing device
8:Alcohol spraying device
9:Auto feeder
