Quick Details
-
Material:
-
Copper Clad Steel
-
Resistance:
-
About 10ohm
-
Bonding:
-
No cracking in bending 180 degree
-
Certificate::
-
UL467/CE/ISO9001:2008
-
Type::
-
Threaded or Pointed or Chemfering
-
Usage::
-
Underground
-
Application:
-
Lighting Protecting
-
Product name:
-
China Copper bonded earth rod,ground rod
Quick Details
-
Place of Origin:
-
Hebei, China
-
Strength:
-
>=600N/mm2
-
Conductivity::
-
About 16%
-
Material:
-
Copper Clad Steel
-
Resistance:
-
About 10ohm
-
Bonding:
-
No cracking in bending 180 degree
-
Certificate::
-
UL467/CE/ISO9001:2008
-
Type::
-
Threaded or Pointed or Chemfering
-
Usage::
-
Underground
-
Application:
-
Lighting Protecting
-
Product name:
-
China Copper bonded earth rod,ground rod

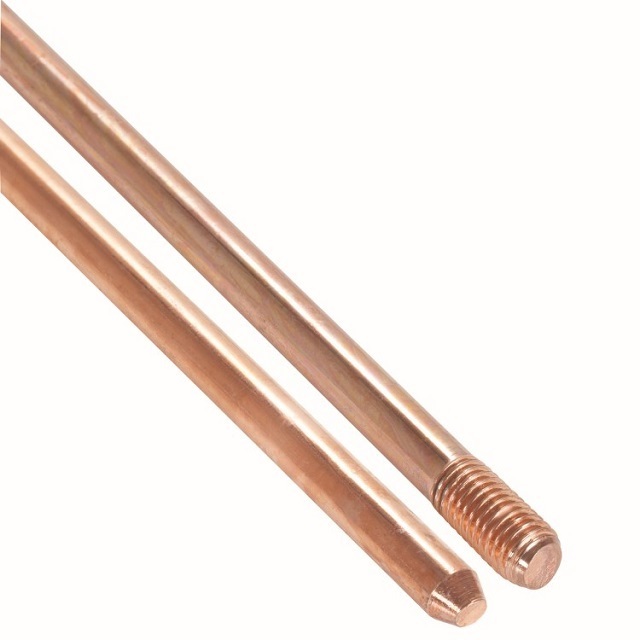

we are manufactures, exports and supplies copper bonded earth rods which offer installers that are the most sparing strategy for accomplishing a low earth resistance. Every pole has a high rigidity, low carbon steel center. 99.95% immaculate copper is connected electrolytically and structures a metallurgical bond between the steel center and the copper. This mix makes the bar perfect for profound driving while likewise gives enduring imperviousness to corrosion. The thread are shaped by a frosty moving procedure which guarantees quality and keeps up the molecularly fortified copper covering along the full length of the threads. Cold-rolled threads are more grounded than cut-strings. The standard copper thickness is 0.25mm.
|
Specifications |
|
|
|
|
|
|
|
|
|
Product Name |
Model |
OD |
thickness of copper |
Length |
Note |
|||
|
mm |
mm |
mm |
||||||
|
Copper Bonded Earth Rods |
BSDGR12 |
12 |
0.25 |
1000--6000 |
Customized Service |
|||
|
BSD-GR14.2 |
14.2 |
0.25 |
1000--6000 |
|||||
|
BSD-GR16 |
16 |
0.25 |
1000--6000 |
|||||
|
BSDGR17.2 |
17.2 |
0.25 |
1000--6000 |
|||||
|
BSD-GR18 |
18 |
0.25 |
1000--6000 |
|||||
|
BSD-GR20 |
20 |
0.25 |
1000--6000 |
|||||
|
BSD-GR22 |
22 |
0.25 |
1000--6000 |
|||||
|
BSD-GR25 |
25 |
0.25 |
1000--6000 |
|||||
