Quick Details
-
Brand Name:
-
Yuneng
-
Voltage:
-
380V,50Hz
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
175*110*165cm
-
Weight:
-
450KGS
-
Type:
-
Coalescer Oil Water Separator
-
Color:
-
as needed
-
Certification:
-
CE ISO
Quick Details
-
Applicable Industries:
-
Coalescer Oil Water Separator
-
Flow:
-
3000L-120000L/H
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Yuneng
-
Voltage:
-
380V,50Hz
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
175*110*165cm
-
Weight:
-
450KGS
-
Type:
-
Coalescer Oil Water Separator
-
Color:
-
as needed
-
Certification:
-
CE ISO

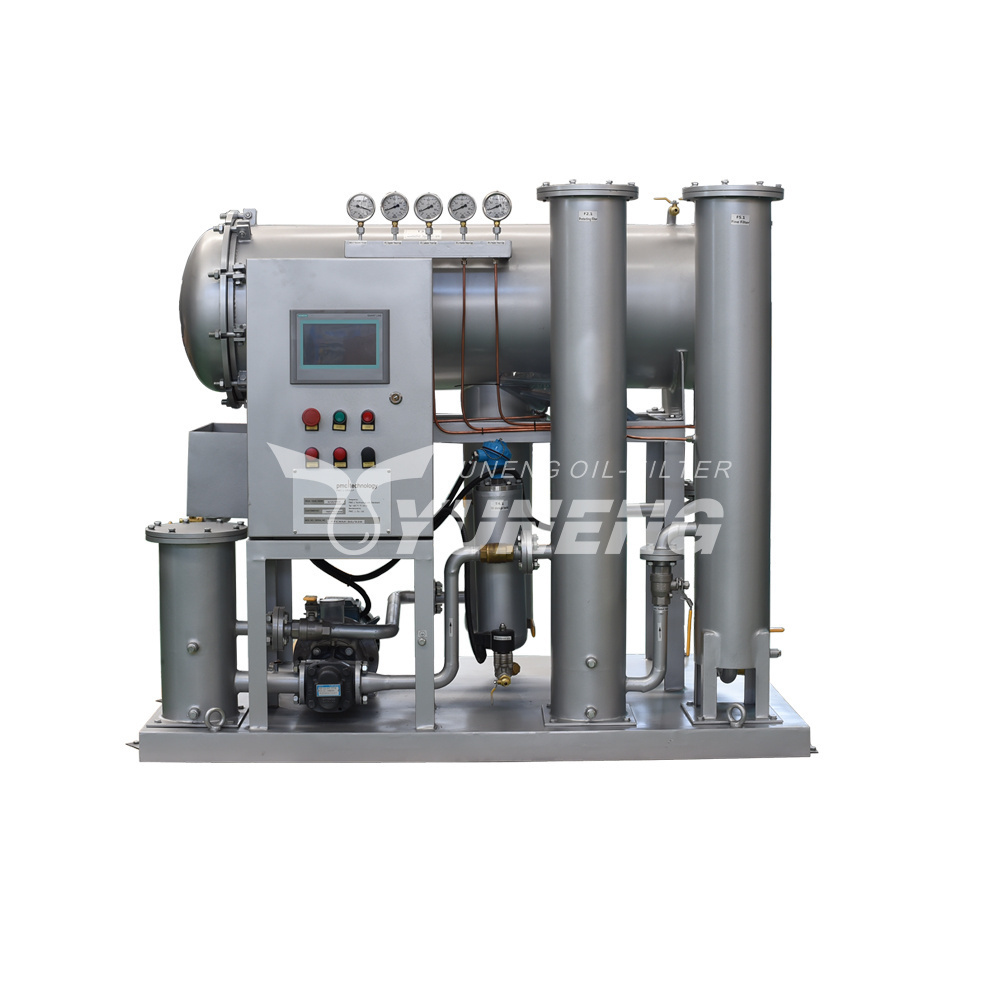

Coalescer Turbine Oil Water Separator
Coalescer Turbine Oil Water Separator adopts hydrophilic coalescing filter element and hydrophobic dehydration filter element, which are also configured and optimized in a certain proportion. According to the different physical effects of the water mixed in the oil, the free water and emulsification water are coalesced to bigger diameter ones when passing the coalescing filter element, and then will be separated out of the oil by the dehydration filter element, and finally will be automatically drained out after sinking in the water holder finish once oil water separation. JT series combines automatic emulsion splitting, high-efficiency dehydration and precise filtering altogether; it can effectively filter out the water and impurities in the oil. JT series is suitable for the online automatic operation of the light oil, turbine oil and lubricating oil with kinematic viscosity value is below 46 mm²/s. It also has the obvious effects on the online operation of leakage sets/units.
|
Item |
Name of Parameter |
type unit |
JT-50 |
JT-100 |
JT-150 |
JT-200 |
|
|
Technical Parameter of the equipment |
Flow Rate |
L/min |
50 |
100 |
150 |
200 |
|
|
Working Pressure |
Mpa |
≤0.35 |
|||||
|
Working temperature of oil |
°C |
45 ~ 65 |
|||||
|
Working power |
|
( 380V-50Hz ) 3-Phase 4-Wire or as needed |
|||||
|
Total electric power |
KW |
1.5 |
1.5 |
3 |
3 |
||
|
Diameter of oil inlet/outlet hose |
DN |
32 |
38 |
45 |
50 |
||
|
Size |
Length |
cm |
155 |
175 |
190 |
200 |
|
|
Width |
cm |
100 |
110 |
120 |
130 |
||
|
Height |
cm |
140 |
165 |
155 |
160 |
||
|
Weight |
Kg |
400 |
450 |
550 |
700 |
||
|
Oil Treatment Index |
Water Content |
ppm |
≤100 |
||||
|
Filtering Accuracy |
µm |
3 |
|||||
|
Demulsibility |
min |
≤15 |
|||||
|
Cleanness |
NAS level |
Grade 5-8 |
|||||
|
Oil Appearance |
|
Transparence |
|||||
