Quick Details
-
Brand Name:
-
maXpeedingrods
-
Car Model:
-
For Toyota Corolla E90 E100 E110 AE92 AE101 AE111
-
Model Number:
-
COT7-TOYCOR
-
Product name:
-
Coilover Suspension For Toyota Corolla E90 E100 E110 AE92 AE101 AE111
-
Application 1:
-
For Toyota Corolla E90 1987-1992
-
Application 2:
-
For Toyota Corolla E110 1995-2002
-
Application 3:
-
For Toyota Corolla AE101 1992-1998
-
Application 4:
-
For Toyota Corolla AE111 1988-2002
-
Damping:
-
24 levels of rebound damping force
-
Front spring rate:
-
8kg/mm(448 lbs/in)
-
Rear spring rate:
-
6kg/mm(336 lbs/in)
-
Package dimension:
-
63*51*20 cm
-
Package weight:
-
27.54 kg
Quick Details
-
OE NO.:
-
Toyota Corolla E90 E100 E110 AE92 AE101 AE111
-
Warranty:
-
2 years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
maXpeedingrods
-
Car Model:
-
For Toyota Corolla E90 E100 E110 AE92 AE101 AE111
-
Model Number:
-
COT7-TOYCOR
-
Product name:
-
Coilover Suspension For Toyota Corolla E90 E100 E110 AE92 AE101 AE111
-
Application 1:
-
For Toyota Corolla E90 1987-1992
-
Application 2:
-
For Toyota Corolla E110 1995-2002
-
Application 3:
-
For Toyota Corolla AE101 1992-1998
-
Application 4:
-
For Toyota Corolla AE111 1988-2002
-
Damping:
-
24 levels of rebound damping force
-
Front spring rate:
-
8kg/mm(448 lbs/in)
-
Rear spring rate:
-
6kg/mm(336 lbs/in)
-
Package dimension:
-
63*51*20 cm
-
Package weight:
-
27.54 kg
Specification
|
Coilover Suspension For Toyota Corolla E90 E100 E110 AE92 AE101 AE111 1987-2002
|
|
|
|
Fitment
|
For Toyota Corolla E90 1987–1992
For Toyota Corolla E100 1991–1998 For Toyota Corolla E110 1995-2002 For Toyota Corolla AE92 1987-1991 For Toyota Corolla AE101 1992-1998 For Toyota Corolla AE111 1988-2002 |
|
|
Spring Rate Front
|
8kg/mm(448 lbs/in)
|
|
|
Spring Rate Rear
|
6kg/mm(336 lbs/in)
|
|
|
Front Spring Inner Diameter
|
70.5mm
|
|
|
Rear Spring Inner Diameter
|
70.5mm
|
|
|
Spring Length Front
|
180mm
|
|
|
Spring Length Rear
|
230mm
|
|
|
Spring Preload
|
7-10 mm
|
|
|
Adjustable height
|
Yes, lowering 1-3 inches depending on the vehicle models
|
|
|
Shock Type
|
Twin tube
|
|
|
Damping
|
24 levels of rebound damping force
|
|
|

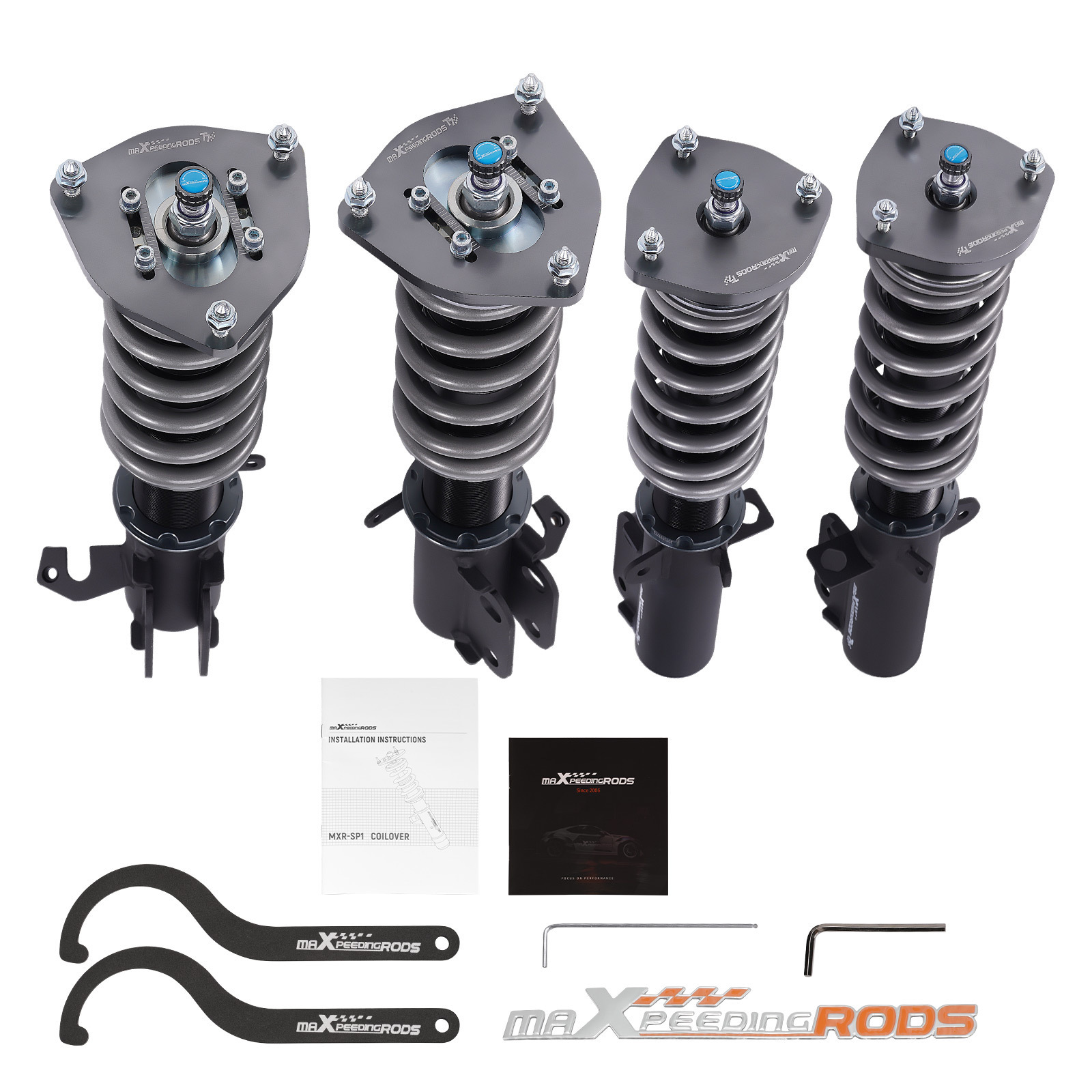

Package Included
|
2x front coil-overs
2x rear coil-overs 2x C spanners 2x Allen wrench 1x sticker |
|
|
Features
- Racing damping oil and spring rates set for occasional track use and daily street use.
- Lowered height adjustment from 1" - 3" (depending on vehicle models) which adds a more aggressive stance and a lower center of gravity. - Adjustable pre-load spring tension reduces shaking motion. - 24 Clicks of Rebound Adjustments allow you to dial in your coil-overs system perfectly. - High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range. - High Rigidity 55CrSi Steel Cold-bent Coil Springs - CNC machined aluminum top mounts and lockers have excellent strength and save weight. - Highly durable and reliable heavy-duty steel lower mounts. - All inserts come with fitted long rubber boots to protect the damper and be durable. - Advanced Twin-Tube Technology provides excellent handling & control characteristics for most driving conditions - Anti-Corrosion finish anodized aluminum and powder-coated carbon steel parts with a matt-finished surface. - Every part was tested on our professional machine before being assembled and tested by our professional racers on the road. - Clean room assembled maintains a higher level of accuracy and reliability. |
1. Lowered height adjustment from
1" - 3"
which allow lower center of gravity and also add a more aggressive stance.
2. Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front) 3. Pillow ball top mount - It improves the steering feel and response.（Only Front) 4. Twin-Tube structure allows sufficient stroke within the shock absorber. 5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation. 6. Separate height adjustment does not affect damper stroke. 7. Height can be adjusted with coilovers installed on the vehicle. 8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance. 9. Height Adjustment tools included. 10. Full rebuildable. 11.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
12.Quickly Install: Preload parameter is provided to save your 3-4 hours installation time.
|
|
Product Description
Factory Introduction
Local Warehouse
We have 30+ warehouse in the
USA,Canada,UK,Germany,France,Italy,Spain,Russia,Australia,Japan,Thailand
Package
FAQ
Q1. Are you a factory?
Yes, we are manufacture for aftermarket auto parts more than 16 years
Q2. What is your delivery time?
We have warehouse in the USA,Canada,UK,Germany,France,Italy,Spain,Russia,Australia,Japan,Thailand for fast shipping, 3-5days. for other countries we will send goods from CN warehouse.
Q3. Can you customize the products?
Yes, we can customize your logo or new model according to your request
Q4.What is your Warranty?
2 years warranty for any manufacture defects
Q5. How to become a distributor?
Please contact our salesman for more details, welcome to join us!
Q6. Can you do drop shipping?
Yes, we can
Q7. Do you test products before delivery?
Yes, we have 100% test before delivery
