Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Brand Name:
-
DIXIN
-
Voltage:
-
380v
-
Weight:
-
4 kg
-
Product name:
-
Roof Sheet Forming Machine
-
Raw material:
-
Galvanized Sheet
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
45# Steel Outer Diameter: 75mm
-
Control system:
-
PLC(imported Brand)
-
Thickness:
-
0.3--0.8mm
-
Motor brand:
-
Delta
-
Cutting type:
-
Automatic Hydraulic Cutting
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
15-20m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Brand Name:
-
DIXIN
-
Voltage:
-
380v
-
Weight:
-
4 kg
-
Product name:
-
Roof Sheet Forming Machine
-
Raw material:
-
Galvanized Sheet
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
45# Steel Outer Diameter: 75mm
-
Control system:
-
PLC(imported Brand)
-
Thickness:
-
0.3--0.8mm
-
Motor brand:
-
Delta
-
Cutting type:
-
Automatic Hydraulic Cutting
-
After Warranty Service:
-
Video technical support

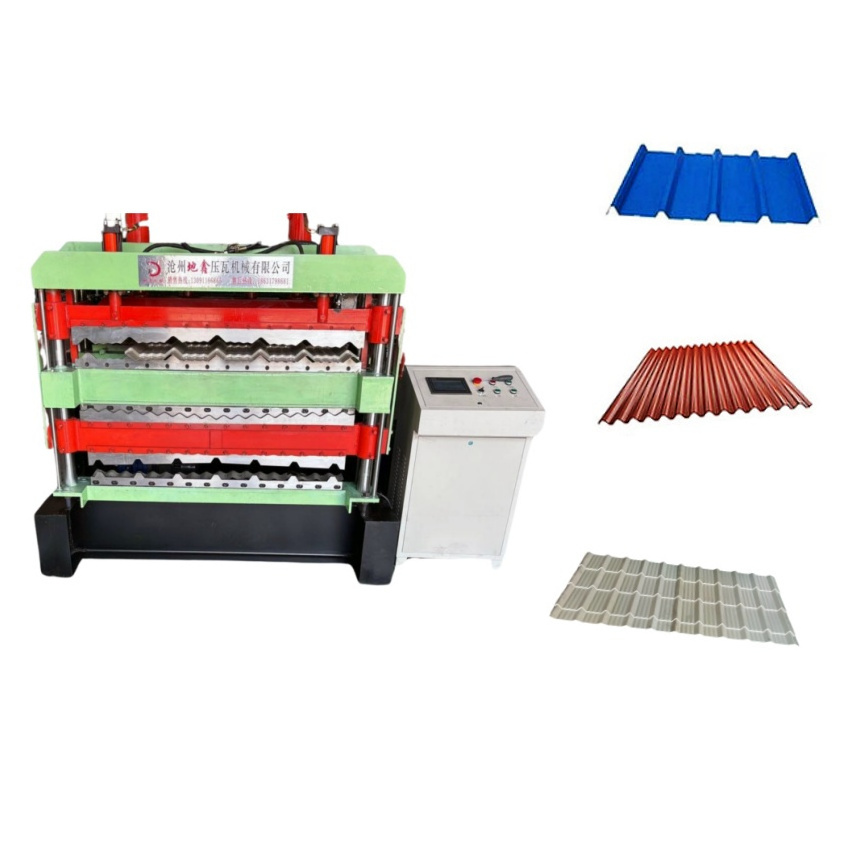

Automatic three Profile Panel Multifunction galvanized steel glazed Sheet Making Roof Roll Forming Machine
Working flow
Technical parameter
|
Manual Un-coiler
|
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
|
|
Leveling Device
|
◊ Ensure the material level and straight
◊ The width can be adjusted |
|
Auto Main Forming System
|
◊ Max Feeding width:1220 mm
◊ Product width: 1000 & 1020 mm ◊ Thickness of sheet: 0.2-1.0mm ◊ Motor Power: 5.5 kw forming system ◊ Roller material: C45 steel ◊ Diameter of shaft: Upper level 95 mm Down level 95 mm ◊ Forming station: Upper level 12 stations. Down level 12 stations. ◊ Base Frame: 360 H steel welded.. |
|
Hydraulic Cutting Device
|
◊ Cutting way: pause to cut.
◊ Oil pump station 1set. ◊ Hydraulic power: 4 kw hydraulic system. ◊ Blade Material: CR12 with heat treatment HRC60-62. |
|
Electrical System
|
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement) |
|
Run-out Table
|
◊ Frame: 8# steel groove welded
◊ Roller type. ◊ Quantity: 1 pc |
Panel drawing
- IBR sheets produced by IBR roofing machine is the traditional and familiar profile for roofing and cladding applications in most countries. It is the oldest and most commonly used roofing profiles because of its easy handling and fixing properties and related strength. The IBR profile is derived from sinus curve and offers very strong and structural properties.
Glazed tile is a type of ceramic tile to which a glaze has been applied. After the glaze is painted or sprayed on, the tile is fired at high temperatures, causing a chemical reaction which makes the glaze vitrify, essentially turning into glass. The resulting tile is resistant to water and stains because of the glaze, and it has an attractive look, as a wide variety of colors and designs can be created with glaze, with finishes ranging from extremely glossy to matte.
