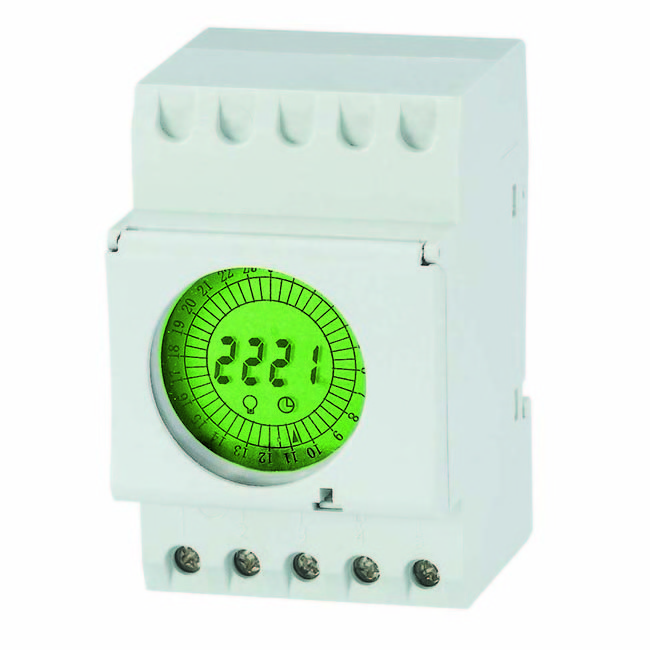

DHC20 24 Hours Programmable Electronic Timer Switch

Voltage limit :

Hysteresis :

AC180V ~ 250V (50/60Hz)

≤ 1s/d (at25 °C )

Number of circuits :

Load capacity :

1c

16A 250VAC ( ohmic load cos Ø=1 )

On/off operation :

inimum interval :

48on & 48off

15 minutes

Service life :

Mechanically: 10 ⁷

Electrically: 10 ⁵

Weight :

Approx 200g

Ambient temperature

-10 ~ 55 °C

Display ;

LCD

storage temperature:

-20~70 °C

Battery backup:

150h

Power consumption :

5VA

DIMENSIONS CONNECTIONS

1. If the timer switch is used for the first time or unused for long time, and it dose no t displays,please input AC and let battery recharge . A fter then press reset key in the small hole which is located in the right-up corner of the panel.

Step

Key

Programming

1

Press P key

Begin Setting

2*

Press + or - key

Select on - time

3

Press ok key

Set on - time and Press ok to confirm(If you want to add next 15minute s to on -time ,you need to press this key again )

4

Repeat 2-3

Setting 2-48 on/off -time

5

Press P key

End

Step

Key

Programming

1

Press P key

Begin Setting

2*

Press + or - key

Select the on-time which will be cancled

3

Press ok key

Cancle the on-time,one time for 15minutes,and the key can press continuely.

4

Press P key

End
