Quick Details
-
Dimension(L*W*H):
-
32*18*19cm
-
Weight (KG):
-
10
-
standard grinding wheel:
-
CBN(HSS)
-
grinding range:
-
2-13(15)
-
point angle:
-
95(90)-135
-
Collets:
-
eleven
-
Model Number:
-
MR-13A
-
Max. Grinding Diameter:
-
15mm
-
Power:
-
120W
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MRCM
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
32*18*19cm
-
Weight (KG):
-
10
-
standard grinding wheel:
-
CBN(HSS)
-
grinding range:
-
2-13(15)
-
point angle:
-
95(90)-135
-
Collets:
-
eleven
-
Model Number:
-
MR-13A
-
Max. Grinding Diameter:
-
15mm
-
Power:
-
120W
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE ISO

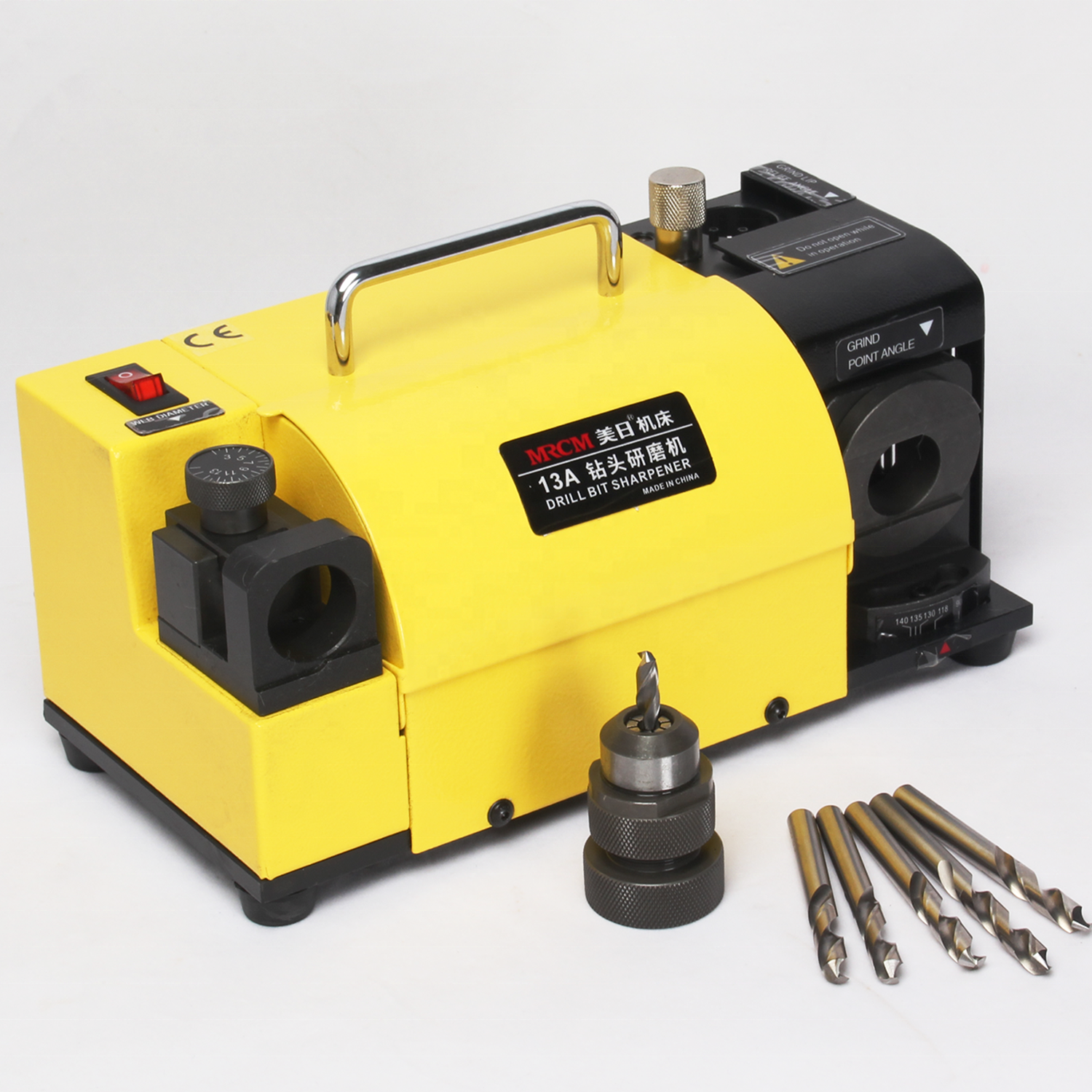

13A industrial drill bit grinder drill bit sharpener
1.Grinding is accurate and rapid, easy operation with no skill to grind.
2.Economical price that greatly reduces the cost and improves the use effect.
3.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5.Bearing shaft and locking unit.
6.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
SPECIFICATION
| Model | MR-13A |
| Grinding Range | Φ2-Φ13(Φ15) |
| Point Angle | 95°(90°)~135° |
| Power | AC220V |
| Motor | 120W |
| Speed | 4400rpm |
| Dimension | 32*18*19 |
| Weight | 10kg |
| Standard Equipment | Grinding wheel :CBN (for HSS)×1 |
| Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13 | |
| Collet chuck:(Φ2-Φ14)×1 | |
| Option Equipment | Grinding wheel :SD (for Carbide) |
| Collets: Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15 | |
| Collet chuck:Φ15 |
