2. UL94 V-0 flame retardant rating
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
EINECS No.:
-
210-898-8
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SEPNA
-
Model Number:
-
SP295
-
Type:
-
Two component, Two component
-
Color:
-
Light yellow transparent
-
Material:
-
Polyurethane
-
Mix rate:
-
100:15
-
Application:
-
Electronic, PCB, IGBT, Charging
-
Advantage:
-
Elastic, weather resistant
-
OEM & ODM:
-
Free OEM & ODM service
-
Samples:
-
Free samples
-
Packing:
-
25kg BUCKET
Quick Details
-
CAS No.:
-
9009-54-5
-
Other Names:
-
Electronic potting sealant
-
MF:
-
CH3H8N2O
-
EINECS No.:
-
210-898-8
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SEPNA
-
Model Number:
-
SP295
-
Type:
-
Two component, Two component
-
Color:
-
Light yellow transparent
-
Material:
-
Polyurethane
-
Mix rate:
-
100:15
-
Application:
-
Electronic, PCB, IGBT, Charging
-
Advantage:
-
Elastic, weather resistant
-
OEM & ODM:
-
Free OEM & ODM service
-
Samples:
-
Free samples
-
Packing:
-
25kg BUCKET
Good Anti-Yellowing Ability Silicone Adhesive Sealant glue for PCB/LED Charging pile new energy battery electrical controller

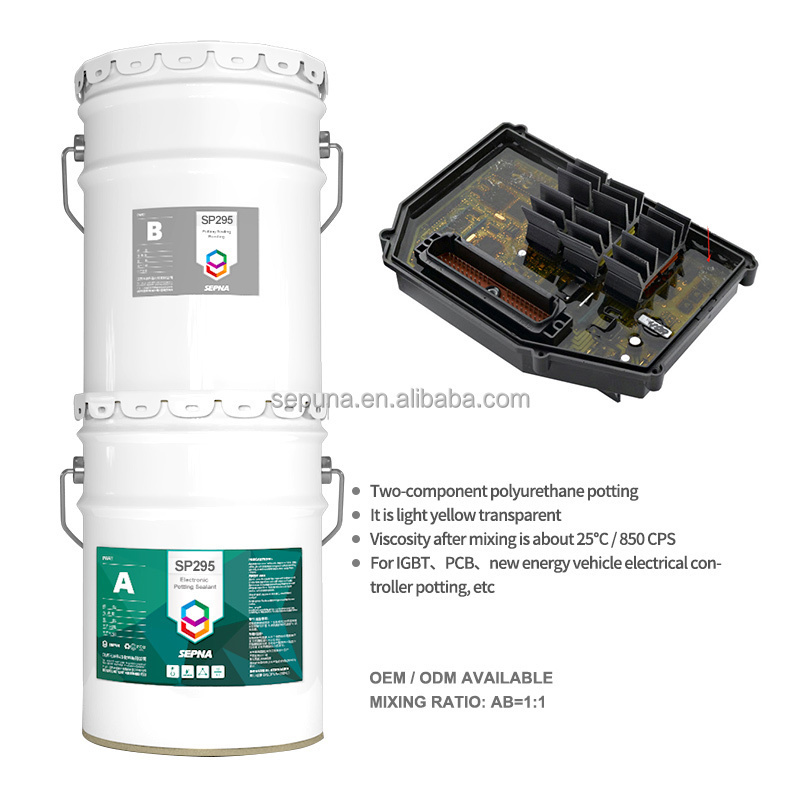

Product Description
SP295
is a solvent-free, environment-friendly and transparent two-component polyurethane electronic potting adhesive, which has
the characteristics of low hardness, good elasticity, excellent waterproof performance and insulation performance.
the characteristics of low hardness, good elasticity, excellent waterproof performance and insulation performance.
SP295
Typical Applications
1. Filling coating casting, good bonding between metal and plastic.
2. Communication equipment, transformers, control power supplies, ignition controllers, electronic sensors, etc.
3. The charging pile is potted.
PCB board
Electronic circuit board
Product Advantages
Two-component polyurethane potting
Mixing Ratio: AB=1:1
Mixing Ratio: AB=1:1
Super Volume Resistivity
1.
3.7×10
15
Volume Resistivity
2. UL94 V-0 flame retardant rating
2. UL94 V-0 flame retardant rating
Low Viscosity
3. -40℃ · 150
℃ temperature resistance
4. Super tensile strength
5. Excellent heat conductivity coefficient
4. Super tensile strength
5. Excellent heat conductivity coefficient
No bubble while curing
6. No bubble at
15℃ · 65℃
7. OEM/ODM Available
7. OEM/ODM Available
Technical Data Sheet
|
PROPERTY
|
STANDARD/UNITS
|
VALUE-SP295
|
|
|
|||
|
Component
|
--
|
Part A
|
Part B
|
|
|||
|
Appearance
|
Visual
|
Light yellow transparent liquid
|
Light yellow transparent liquid
|
|
|||
|
Viscosity
|
mPa.s
|
800±50
|
500±50
|
|
|||
|
Density
|
g/cm^3
|
0.97±0.05
|
1.2±0.05
|
|
|||
|
Data details after mixing
|
|
|
|
|
|||
|
Mixture ratio
|
Mass ratio
|
A:B=1:1
|
|
|
|||
|
Operating time after mixing
|
min
|
＞30
|
|
|
|||
|
Gel time
|
30℃
|
20g-20min（Time adjustable）
|
|
|
|||
|
|
23℃
|
20g-40min（Time adjustable）
|
|
|
|||
|
Insulation strength
|
kv/mm
|
16
|
|
|
|||
|
Flame retardant grade
|
UL94
|
V-0
|
|
|
|||
|
Thermal conductivity
|
w/m.k
|
0.69
|
|
|
|||
|
Volume resistivity
|
Ω.cm
|
3.086×10¹²
|
|
|
|||
|
Tensile strength
|
MPa
|
0.54
|
|
|
|||
|
Hardness
|
Shore A
|
55±3
|
|
|
|||
|
Elongation at break
|
%
|
>50
|
|
|
|||
|
Operating temperature range
|
℃
|
-60-120
|
|
|
|||
|
Shelf life
|
Room temperature sealing
|
6 months
|
|
|
|||
Delivery Time
|
Lead Time
|
Quantity (
Pieces
)
|
1-3000
|
3001-10000
|
10001-50000
|
>50000
|
|
|
Est. Time (
Days
)
|
7
|
10
|
15
|
To be negotiated
|
Samples : Expree ( FedEx, DHL, TNT, UPS etc.)
Cargo : By Sea ( FCL / LCL), By Air, By Railway etc .
Cargo : By Sea ( FCL / LCL), By Air, By Railway etc .
