- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-100M-RPOE-10P
-
Place of Origin:
-
Guangdong, China
-
Name:
-
10 port reverse poe switch
-
PoE Ports:
-
8
-
Uplink Ports:
-
2
-
Power Supply:
-
DC12V
-
Model:
-
WOR-100M-RPOE-10P
-
Manufacturer:
-
Wanglink
-
Interface:
-
8*Ethernent Ports
-
Applications:
-
FTTH FTTB FTTX Network
-
Package:
-
Original Packaging
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
5.6G
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-100M-RPOE-10P
-
Place of Origin:
-
Guangdong, China
-
Name:
-
10 port reverse poe switch
-
PoE Ports:
-
8
-
Uplink Ports:
-
2
-
Power Supply:
-
DC12V
-
Model:
-
WOR-100M-RPOE-10P
-
Manufacturer:
-
Wanglink
-
Interface:
-
8*Ethernent Ports
-
Applications:
-
FTTH FTTB FTTX Network
-
Package:
-
Original Packaging
Products Description

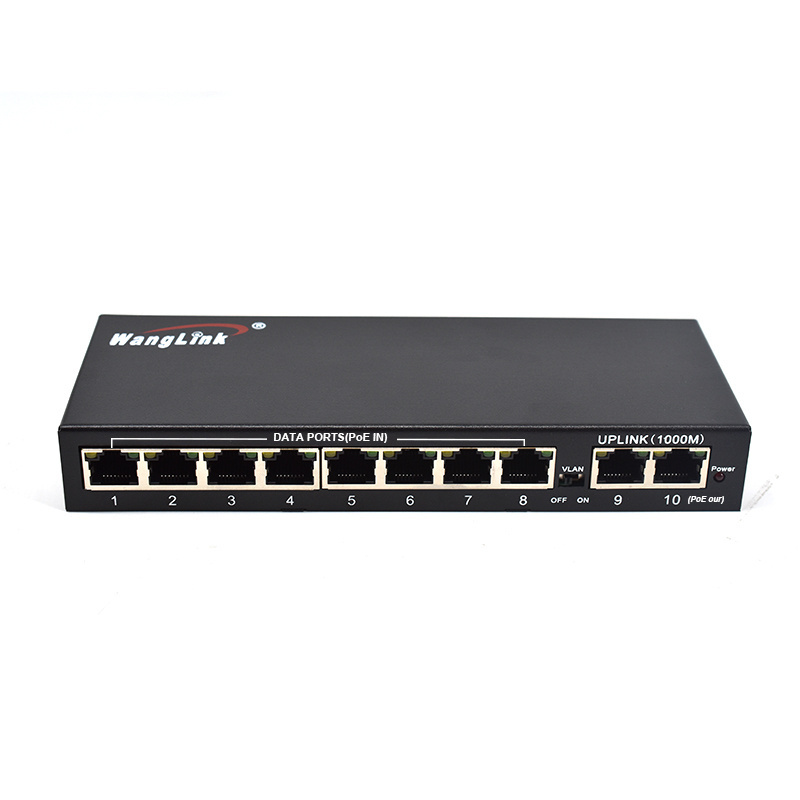

10 Port Fast Ethernet Switch Reverse Poe Switch 8 Port 100Mbps with Gigabits 2 Uplink Port 24V-48V Poe IN PoE Out RPOE Switch
10 Port Reverse PoE Switch with 8-Port PoE provides the seamless network connection. It integrates 2 Gigabit Uplink ports and
8 Fast Ethernet network capabilities. Port 1-8 for PoE In, Port 9-10 for PoE Out, Support 24-48V Passive PoE compliant PSD and PD,
2 Gigabit RJ45 can do Uplink Port
Feature
1. Port1-8 for PoE In, Port 9-10 for PoE Out, 2 Gigabit Uplink ports
2. Support 24-48V Passive PoE compliant PSD and PD
3. used for FTTx for power up ONU in building
4. Support Port VLAN
5. DC output 12V
How to work
It integrates 2*Gigabit Uplink ports and 8*10/100Mbps Ethernet network capabilities. Port 1-8 for PoE In, Port 9-10 for PoE Out, Support 24-48V Passive PoE compliant PSD and PD, 2 Gigabit RJ45 can do Uplink Port. 8 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) IN function. These PoE ports (port-1 to port-8) can automatically detect and accept power with those 24-48V Passive PoE compliant PSE. Then this switch can continue to power up next switch or wireless AP/CPE via PoE output port 9-10th
Easy to use
10 Port reverse poe switch is easy to install and use. It requires no configuration and installation. With outstanding performance and quality, the 10 port reverse poe switch is a great selection for expanding your FTTB(fiber to the building) or FTTW(fiber to the wireless) network.
Products Show
|
Model
|
WOR-100M-RPOE-10P
|
|
100M Rj45 in
|
8
|
|
1000M Rj45 out
|
2
|
|
Exchange Mechanism
|
Store-and-forward
|
|
Bandwidth
|
5.6G
|
|
MAC
|
2K
|
|
Functional |
Support 1~8 Reverse POE In(45+ 78-)
Support port 9-10 POE out(45+ 78-) DC port 12V output can switch Inhibition network storm, anti ARP virus attack, anti DHCP conflict |
|
Environmental |
Working Temperature: -10℃～55℃
Storage temperature: -40℃～70℃ |
|
|
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing |
|
POE Input |
1~8 Reverse POE Input, Customizable POE out
45+ 78- 24~48V |
|
System mode
|
Standard sharing / vlan isolation
|
|
Standards Protocols |
IEEE 802.3
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x |
|
Speed |
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex |
|
Network Media |
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) |
