Quick Details
-
power phase number:
-
1/3PH
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
aikon
-
Model Number:
-
PDSS
-
Warranty:
-
2 years
-
Type:
-
variable frequency drive 220v
-
Allowable voltage range:
-
220V±15%
-
Frequency:
-
50/60HZ
-
Input Phase:
-
1 phase
-
Output phase:
-
3 phase
-
Protection Grade:
-
IP65
-
Analog input signal:
-
0~20mA
-
MOQ:
-
1 PC
-
Used condition:
-
WATER PUMP/RO SYSTEM
-
Certification:
-
CE/ISO9001
-
Allowable/Working voltage range:
-
220V:170~220V
Quick Details
-
Control Mode:
-
electric
-
Rated Power:
-
1.5kw
-
Nominal Voltage:
-
220V
-
power phase number:
-
1/3PH
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
aikon
-
Model Number:
-
PDSS
-
Warranty:
-
2 years
-
Type:
-
variable frequency drive 220v
-
Allowable voltage range:
-
220V±15%
-
Frequency:
-
50/60HZ
-
Input Phase:
-
1 phase
-
Output phase:
-
3 phase
-
Protection Grade:
-
IP65
-
Analog input signal:
-
0~20mA
-
MOQ:
-
1 PC
-
Used condition:
-
WATER PUMP/RO SYSTEM
-
Certification:
-
CE/ISO9001
-
Allowable/Working voltage range:
-
220V:170~220V

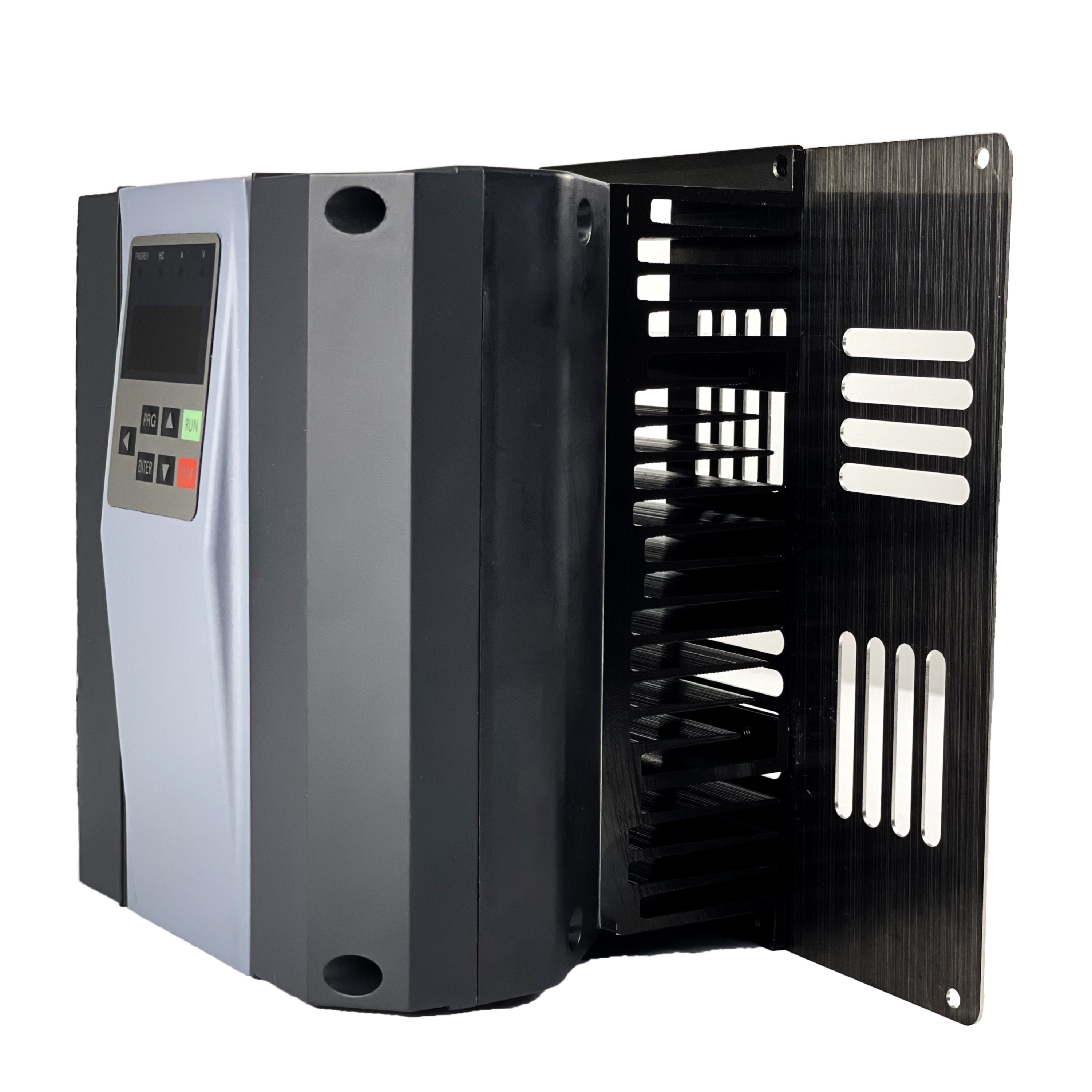

Product Description
Specification
|
Model
|
Instruction
|
|
Power
|
0.75kW~2.2Kw
|
|
Input rated voltage and frequency
|
1PH/3PH AC 220V 50/60Hz
|
|
Allowable/Working voltage range
|
220V:170~220V
|
|
Output voltage
|
220V:0~220V
|
|
Analog input signal
|
In: 0~10v; 0~20mA
|
|
Analog output signal
|
0/4-20 mА
|
|
Output frequency / accuracy
|
0.1~400.0 Hz / 0.1Hz
|
|
Control command source
|
0: keyboard operation, 1: I / O terminal, 2: RS communication,
3: automatic start; 4: Z communication control, channel 1 and 2 are main |
|
Built in PID controller
|
Used for closed-loop control with feedback.
|
|
Acceleration / deceleration time
|
0 ~ 999.9s, acceleration / deceleration time can be set respectively
|
|
RS485
|
1-way standard RS485 communication function (Modbus);
1-way internal pump station communication |
|
Protection mechanism
|
Overload protection, over-voltage protection can be set, under voltage protection,can be reset, short circuit protection, over-current protection, parameter locking
|
|
Overload capacity
|
150% rated current / 60s,
180% rated current / 3S |
|
Protection class
|
IP65
|
|
Ambient temperature / humidity
|
-10℃ to 40℃ (no ice) / below 95% (no condensation)
|
|
Display
|
4-digit nixie tube display, indicator light display, display setting frequency, output frequency, output current, DC bus, etc
|
|
Installation mode
|
Back mounted
|
