Quick Details
-
Brand Name:
-
GOGO, ATC GOGO AUTOMATIC
-
Operating Temperature:
-
-10~60C
-
Working pressure:
-
0.1-5MPa
-
Max.pressure:
-
50bar
-
Orifice:
-
15mm
-
Sealing materials:
-
FKM
-
Voltage:
-
AC220V 110V 24V DC 12V DC
-
Packing:
-
one piece valve + a carton
Quick Details
-
Port Size:
-
1/2",3/4", G1/2",G3/4"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GPE, GPE
-
Brand Name:
-
GOGO, ATC GOGO AUTOMATIC
-
Operating Temperature:
-
-10~60C
-
Working pressure:
-
0.1-5MPa
-
Max.pressure:
-
50bar
-
Orifice:
-
15mm
-
Sealing materials:
-
FKM
-
Voltage:
-
AC220V 110V 24V DC 12V DC
-
Packing:
-
one piece valve + a carton

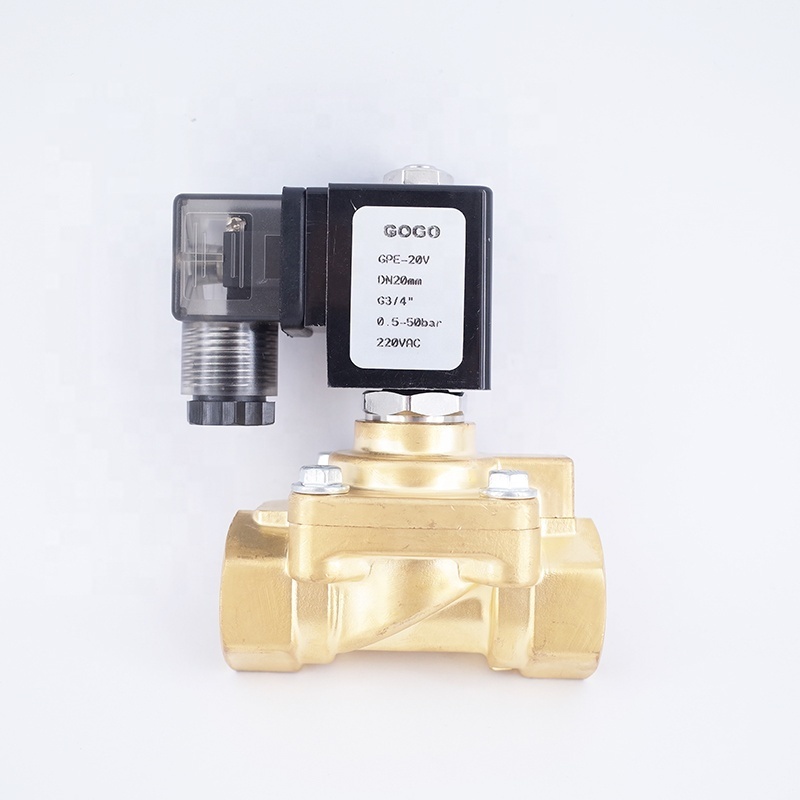

GOGO 50bar air compressor solenoid valve NC/NO Diaphragm brass water valve
for Blowing machine , Injection molding machine valve
Model: GPE G1/2",G3/4"
Orifice:15mm
Seals: FKM
Working pressure: 0.1~5MPa
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: 110V 220V AC ,12V DC ,24V DC .
High pressure Solenoid valve
1.Specification
| Pattern: | Two-port two-position | |||||
| Principium: | Diaphragm pilot type | |||||
| Control mode: | normally close/normally open | |||||
| Valve body: | brass | |||||
| Diaphragm material: | FKM | |||||
| Working pressure: | 1~50bar | |||||
| Max pressure: | 50bar | |||||
| Voltage: | AC220V AC110V DC12V DC24V | |||||
| Medium: | air , ect. | |||||
| Application: | high pressure large-flow normally air water control system | |||||
2 .Picture
3.Size
one pieces valve + a carton
Shipment
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
