Quick Details
-
Weight:
-
1200g±30g (17")
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LightCarbon
-
Model Number:
-
LCM909
-
Components:
-
frame+ seat clamp +thru-axle
-
Bottom Bracket:
-
press fit BB92
-
Head Tube:
-
tapered 1 1/2''-1 1/8 "
-
Rear Dropout:
-
Thru Axle 12*148mm
-
Brake:
-
disc brake
-
Front Derailleur:
-
clamp on or single speed
-
Custom Painting:
-
Available
-
Warranty:
-
2 years
Quick Details
-
Size:
-
15'', 17'', 19''
-
Use:
-
Mountain Bikes
-
Type:
-
Carbon fiber frame
-
Weight:
-
1200g±30g (17")
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LightCarbon
-
Model Number:
-
LCM909
-
Components:
-
frame+ seat clamp +thru-axle
-
Bottom Bracket:
-
press fit BB92
-
Head Tube:
-
tapered 1 1/2''-1 1/8 "
-
Rear Dropout:
-
Thru Axle 12*148mm
-
Brake:
-
disc brake
-
Front Derailleur:
-
clamp on or single speed
-
Custom Painting:
-
Available
-
Warranty:
-
2 years
Products Description

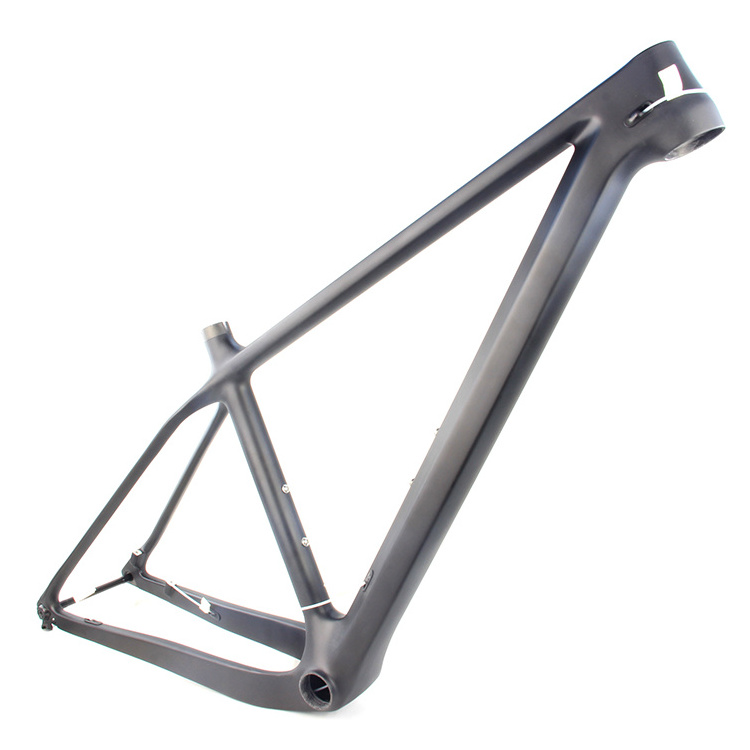

New Lightweight carbon mountain bike frame 29er hardtail cross country XC frames LCM909
- Full carbon 29er hardtail XC cross country frameset
- 12*148mm boost
- 12*148mm boost
|
Frame
|
LightCarbon Affordable Chinese Carbon MTB Frame 29er hardtail xc frameset
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
15'', 17'', 19'' (Small, Medium, Large)
|
|
Headtube
|
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
|
|
Weight
|
1200g/Medium
|
|
Seatpost Diameter
|
31.6mm(34.9 clamp)-Dropper seatpost insert length 15-140mm 17-190mm 19-200mm 20.5-200mm
|
|
Bottom Bracket
|
Press Fit BB92
|
|
Max Tire Clearance
|
29er*2.35''
|
|
Max Compatible Chainring
|
34T
|
|
Brake Type
|
Post Mount Disc brake 160mm
|
|
Front Derailleur
|
Post mount
|
|
Dropout
|
Thru Axle 12*148mm boost
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|
Geometry
|
|
15“
|
17”
|
19“
|
|
SEATPOST INSERT LENGTH
|
200mm
|
220mm
|
240mm
|
|
REACH
|
376mm
|
422mm
|
451mm
|
|
TOP TUBE LENGTH, HORIZONTAL
|
542mm
|
595mm
|
625mm
|
|
STACK
|
591.3mm
|
599.4mm
|
610.4mm
|
|
WHEELBASE
|
1048.6mm
|
1099mm
|
1129.5mm
|
|
CHAINSTAY LENGTH
|
435mm
|
435mm
|
435mm
|
|
FRONT CENTER
|
620.9mm
|
670.9mm
|
701.4mm
|
|
BB DROP
|
61mm
|
61mm
|
61mm
|
|
BB HEIGHT
|
316mm
|
316mm
|
316mm
|
|
SEAT TUBE ANGLE
|
74°
|
74°
|
74°
|
|
HEAD TUBE ANGLE
|
70°
|
70°
|
70°
|
|
SEAT TUBE LENGTH
|
380mm
|
431mm
|
483mm
|
|
HEAD TUBE LENGTH
|
90mm
|
90mm
|
95mm
|
|
BIKE STANDOVER HEIGH(29“*2.35”)
|
740mm
|
768.8mm
|
807mm
|
|
FORK RAKE/OFFSET
|
46mm
|
46mm
|
46mm
|
|
FORK LENGTH, FULL
|
506mm
|
506mm
|
506mm
|
|
TRAIL
|
89.5mm
|
89.5mm
|
89.5mm
|
Compatible suspension front work recommended Rockshox Pike 2020-boost
