Simple operation panel,it can be customized in different kinds of language.
The visual working data makes it easier to test and adjust the machine helps to save time. We use imported operation panel which improves the product quality.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
2ml
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MST
-
Dimension(L*W*H):
-
1600*2100*2200MM
-
Weight:
-
1200 KG
-
Product name:
-
Automatic Bottle Oil Filling Capping Machine
-
Function:
-
Bottle Oil Filling Capping Sealing
-
Usage:
-
Beverage Packaging
-
Bottle type:
-
PET Plastic Bottle/ Glass bottle
-
Processing Types:
-
Automatic Bottle Filling Line
-
Capacity:
-
2000-10000bph
-
Material:
-
SUS 304
-
Advantage:
-
Easy Clean
-
Suitable for:
-
Liquid Food
-
Operation:
-
EASY OPERATION
Quick Details
-
Machinery Capacity:
-
4000BPH, Other, 2000BPH, 3000BPH, 5000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
2ml
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MST
-
Dimension(L*W*H):
-
1600*2100*2200MM
-
Weight:
-
1200 KG
-
Product name:
-
Automatic Bottle Oil Filling Capping Machine
-
Function:
-
Bottle Oil Filling Capping Sealing
-
Usage:
-
Beverage Packaging
-
Bottle type:
-
PET Plastic Bottle/ Glass bottle
-
Processing Types:
-
Automatic Bottle Filling Line
-
Capacity:
-
2000-10000bph
-
Material:
-
SUS 304
-
Advantage:
-
Easy Clean
-
Suitable for:
-
Liquid Food
-
Operation:
-
EASY OPERATION
Product Description
This is an inline piston filling machine for cream and liquid.it adopts PLC and touch screen control panel for control material. It is characterized by accurate measuring,advanced structure,stable operating, low noise, large adjusting range,fast filling speed. It is also suitable for the filling of easy volatilization, easy bubbly liquid strong corrosive liquid for rubber, plastic,and high viscosity, liquid,semi-liquid. Operators adjust and meter figures in the touch screen control panel, also can adjust the metering of each filling head.The external surface of this machine is made of excellent stainless steel.
Good appearance,applied to GMP standard.
Main Technical Parameters
Take water as the main parameter for reference, other liquids, please contact customer service for details.
All machines could be customized , we could design design and produce machines according to your request.
|
Type
|
Head
|
Suitable
bottles
|
Speed
|
Precise
|
Machine Size
|
Power
|
Power Supply
|
Air
|
|
MSTY-20
|
20
|
Customized
|
300ml<5000BPH
|
|
2800*1300*2350
|
1.5KW
|
AC
220/380V
50/60HZ
|
0.6- 0.8Mpa
|
|
MSTY-16
|
16
|
|
300ml<4500BPH
|
|
2800*1300*2350
|
1.5KW
|
|
|
|
MSTY-12
|
12
|
|
300ml<4000BPH
|
|
2800*1300*2350
|
1.5KW
|
|
|
|
MSTY-8
|
8
|
|
300ml<3000BPH
|
|
2000*1300*2350
|
1.0KW
|
|
|
|
MSTY-6
|
6
|
|
300ml<2000BPH
|
|
2000*1300*2350
|
1.0KW
|
|
|
This Production Line is a whole Automatic essential oil filling capping machine production line solution;
The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be
Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated
Filling And Packaging Production Line Plan For The Customer.
Apply to

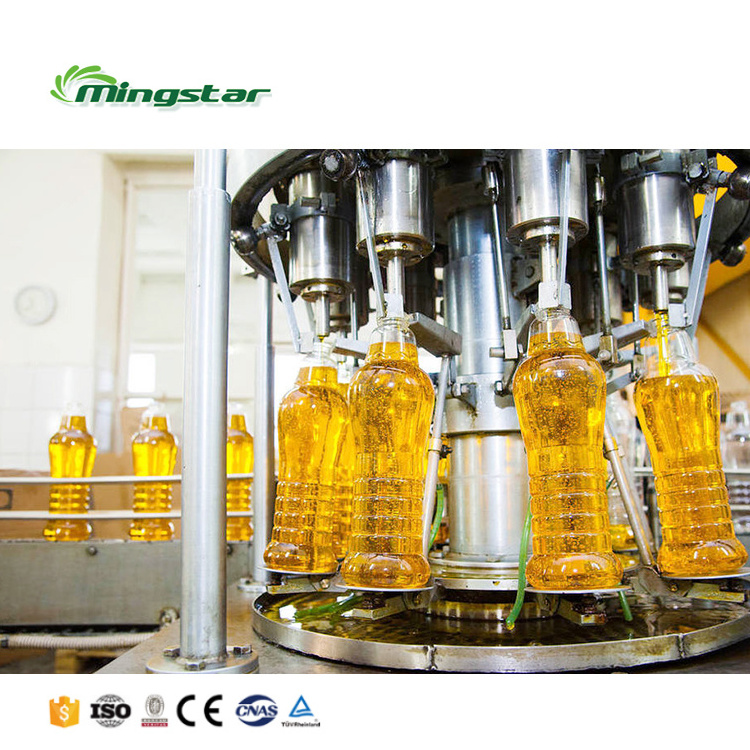

Edible Oil
Suitable : Edible Oil
Bottle Material : PET / PE / Glass / Metal
Bottle Material : PET / PE / Glass / Metal
Detergents
Suitable : detergent,shampoo, dishwasher,liquid soap etc
Bottle Material : PE Bottle
Bottle Material : PE Bottle
Corrosive Liquid
Suitable : bleach,clorox, toilet cleaner .
Bottle Material : PP Bottle
Bottle Material : PP Bottle
Sauce Products.
Suitable : bleach, clorox, toilet cleaner .
Bottle Material : PET / PE / Glass / Metal
Bottle Material : PET / PE / Glass / Metal
Related Products
1. FILLING MACHINE
2. CAPPING MACHINE
3. LABELING MACHINE
4. AUTOMATIC BOTTLE LIQUID FILLING CAPPING LABELING LINE
Detailed Images
Equipped with pneumatic diving nozzle,it has larger power to fill liquid.The diving nozzle can prevent the liquid from splashing as little as possible,improve filling accuracy.
It is also good for filling foamy liquid.
The magnetic switch is used to control filling range,each filling nozzle can be controlled separately.There are two small screws
near air cylinder,these are used to control the input and output of air,so that can control the filling speed.
near air cylinder,these are used to control the input and output of air,so that can control the filling speed.
No blind angle three-way valve, long service life. One key to clean residual material on piston and cylinder.
Quantitative filling, adjustment for one key.Fast interface easy to be dismantled easy to wash, no drip,diving filling.The internal adjustment of the machine is simple.Short adjustment time for replacing bottle shape.
Adopt servo control, piston filling form, PLC and man-machine control interface. With four groups of dose adjustment memory data,
it is more convenient to change the dose.
it is more convenient to change the dose.
Choose different types and lengths of filling nozzles according to different filling materials.Select applicable valves according to their filling materials
What We Offer?
Consultation Service
Filling Machine Choosing
Filling Machine Customization
Filling Line Updating
Turn-Key Solution
Manufacture & Test Service
Filling Machine Stress Testing
Packing & Logistic
SGS Certification
Technical Support
After Sales Service
Installation & Worker Training
Technical Support Online
Annual Diagnosis & Updating
Optional Value-added Service
Agent Recruitment Programme
Client Guarantee Programme
Customer Development Programme
Label Design
We can provide the label design
according to the bottle size, the
icon style you want.
Bottle Design
Our designers can design bottle styles according to your requirement.
Machine Layout
We will design andconfirm the machine layout according to your factory sketch.
Partner Customers
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality.
We have been producing our goods with mature techniques and first-class quality.
With years of export experience along with excellent quality, advanced services and competitive prices, Mingstar has won numerous customers' trust and support.
Packing& Delivery
Packing Details : Plastic film and wooden case packaging, double protection
Delivery Details : Delivery within 30 days by sea
Two years warranty after receiving the equipment .
FAQ
Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?
※In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment.
※Each component before assembly needs strictly control by inspecting personnel.
※Each assembly is in charged by a master who has working experience for more than 6 years.
※After all the machines are completed, we will connect them together and run the full production line for at least 12 hours to ensure the stable running in clients' factory.
※We offer whole filling line testing production service in our factory for hours by request.
Q. ARE YOU A TRADING COMPANY OR MANUFACTURER?
A: We are manufacturer,we have our professional manufacturing teams and technicians.
Q: ANY OTHER QUESTIONS?
※Send inquiry to Mingstar.
※Chat now through Alibaba APP.
※Call us or reserve a call.
