Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Drawell
-
Model Number:
-
2XZ-1
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.25KW
-
Cable Length:
-
Contact
-
Outlet Size:
-
Contact
-
Power:
-
0.25KW
-
Pumping Speed: L/S:
-
1
-
Ult.Vacuum Without gas ballast:
-
≤6*10-2 Pa
-
Speed: r/min(50HZ):
-
1400
-
Power Required: Kw:
-
0.25
-
Diameter of inlet port: mm:
-
16
-
Temperature rise of pump oil: ℃:
-
no more than 45
-
Dimensions (mm):
-
468*150*260
-
Weight(without oil)kg:
-
17
-
Language:
-
English
Quick Details
-
Application:
-
Pharmaceutical industry
-
Pressure:
-
≤6*10-2 Pa(Without gas ballast)
-
Voltage:
-
220V/50Hz
-
Warranty:
-
1year
-
Brand Name:
-
Drawell
-
Model Number:
-
2XZ-1
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.25KW
-
Cable Length:
-
Contact
-
Outlet Size:
-
Contact
-
Power:
-
0.25KW
-
Pumping Speed: L/S:
-
1
-
Ult.Vacuum Without gas ballast:
-
≤6*10-2 Pa
-
Speed: r/min(50HZ):
-
1400
-
Power Required: Kw:
-
0.25
-
Diameter of inlet port: mm:
-
16
-
Temperature rise of pump oil: ℃:
-
no more than 45
-
Dimensions (mm):
-
468*150*260
-
Weight(without oil)kg:
-
17
-
Language:
-
English

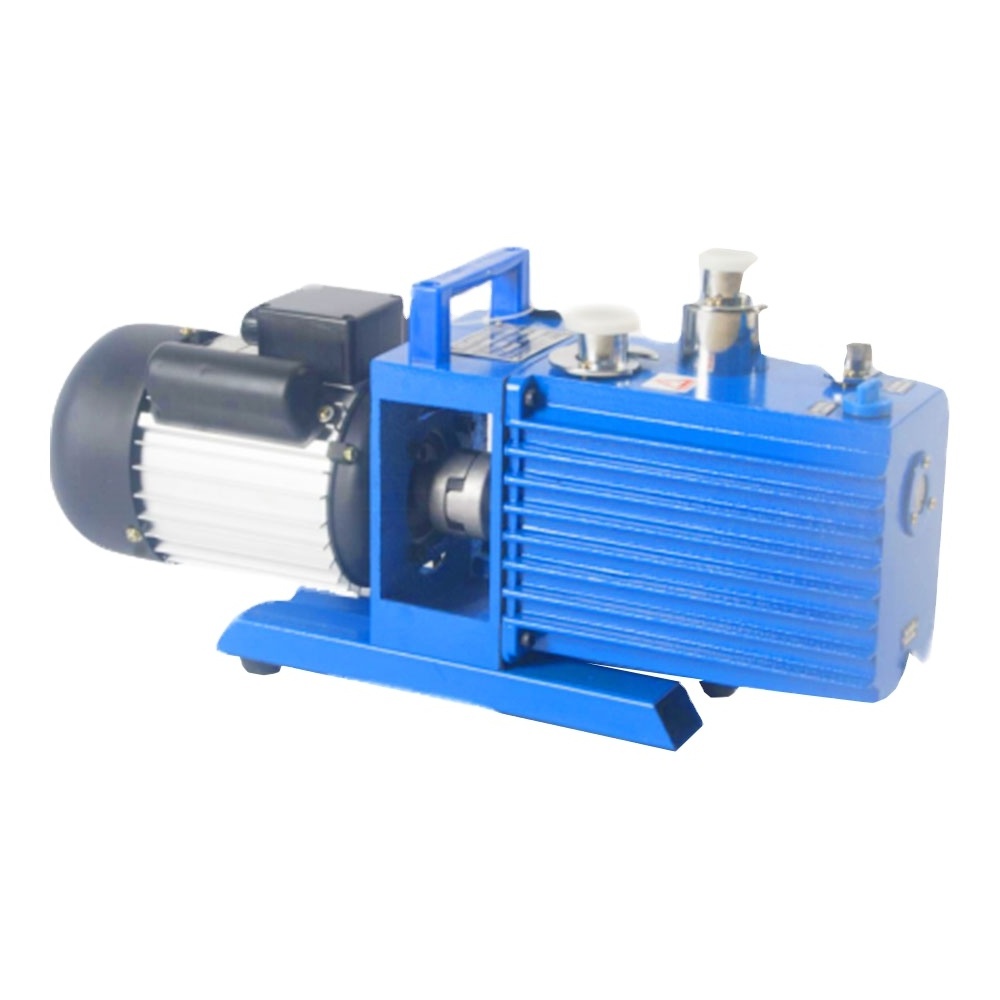

DW-2XZ Series Vacuum Pump
Feature:
1. small volume ,low weight and low noise.
2. equipped with gas ballast valve to pump a little water vapor.
3. equipped with oil anti-return device.
4. 2XZ-2 with small caliber,2XZ-4 pump with vacuum drying oven,
freezing dry machine and printing machine.
5. equipped with small calibre transforming joints and KF joints.
Specifications:
|
Model |
DW-2XZ-1 |
DW-2XZ-2 |
DW-2XZ-4 |
|
|
Pumping Speed: L/S |
1 |
2 |
4 |
|
|
Ult.Vacuum |
Without gas ballast |
≤6*10 -2 |
||
|
Pa |
With gas ballast |
≤1.33 |
||
|
Speed: r/min(50HZ) |
1400 |
|||
|
Power Required: Kw |
0.25 |
0.37 |
0.55 |
|
|
Diameter of inlet port: mm |
16 |
25 |
25 |
|
|
Temperature rise of pump oil: ℃ |
no more than 45 |
|||
|
Oil capacity: L |
0.55 |
0.8 |
0.1 |
|
|
Dimensions (mm) |
468*150*260 |
514*168*285 |
565*168*285 |
|
|
Weight(without oil)kg |
17 |
20 |
22 |
|
