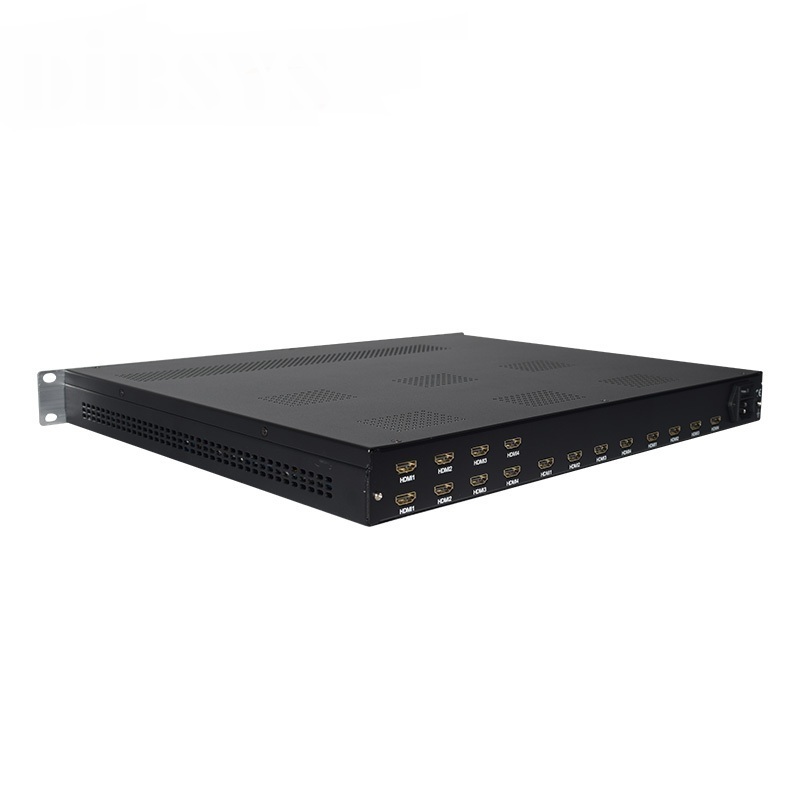

digital HD Encoder Modulator 8/16/24 HD Mi inputs MPEG-4 AVC H.264 video codes

Product Description

Q3 This platform, with H.264 video encoding mode by default, supports MPTS/SPTS/ASI independent multiplexing output and IP out channel switch.

With PSI/SI technology to modify the audio and video PID information of the output program, Q3 also supports to insert a NIT information table into the WEB to achieve better compatibility with the backend device.

Q3 encoder modulators with OSD/Logo/QR code Insertion function, which perfectly suit any professional SD/HD Video company, including TV Channels, Live broadcasters, Government applications, Hotel, Campus, Entertainment facilities, education broadcasting systems at schools and government buildings and many others.

Highlights

• Works both Coax Cable & IPTV networks: Distribute MPEG-4 AVC encoding to all kinds of Modulation and All SPTS/ MPTS Over UDP IP out.

• Operation via LCD Screen and Web Management : easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.

• Multi-Modulation: Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation (can selectable in one device).

• Flexible selection of different input modules: four tuner, four HD- MI encoding in one device.

Features

• Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
• Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation, 4*Carrier RF Out, 8/16*carrier RF out (option) (16/32*carriers DVBC QAM output optional)
• In modulation Mode, support 128*IP input
• Two separate ASI input for External TS Multiplexing
• Simulaneously MPTS and SPTS over UDP/RTP IP out
• Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2
• Audio gain adjustment supported
• 4 separate multiplexing and Up-converter modulating adjacent carrier out
• Selectable the Value of PCR PID same as Video PID
• CBR mode supported
• Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
• Support TTL editing
• LCN (Logical Channel Number) support
• PSI/SI editing & inserting
• PID Remapping & Filtering
• Support PCR correct and PCR interval adjusting
• Easy-to-Use System Management via Web
• passed the EU CE&RoHS certification

Principle Chart

TECHNICAL SPECIFICATIONS

Encoder Part

HD- MI inputs

Numbers of Boards: 4 HD- MI ports per module

Up to 6 Modules in Back panel

Numbers of Ports : 8; 12; 16; 20; 24 Channels

HD- MI 1.4a HDCP

DVB-ASI  inputs

Connector : BNC female, 75Ω

Signal Level : 200-800mVp-p

Packet Length : 188 bytes

Maximum bit-rate per port : ≤100Mbps

Number of Input Ports : Dual separate ASI ports

(4*RF ISDB-T version only support 1*ASI in)

Video Processing

Encoding Format	MPEG 4 AVC/H.264
Resolution	input	output
	1920×1080@60/59.94P	1920×1080@60P, 1280*72060P 1920×1080@30P, 1280*720@30P 720*480@30p
	1920×1080@60i/59.94i	1920×1080@30P, 1280*720@30P 720*480@30p
	1920×1080@50P	1920×1080@50P, 1280*720@25P 720*576@25p
	1920×1080@50i	1920×1080@25P, 1280*720@25p 720*576@25p
	1280×720@60/59.94P	1280×720@60P, 1280*720@30P
	1280×720@50P	1280×720@50P, 1280*720@25P
	720×576@50i	720×576@25P
	720×480@60i	720×480@25P

Encoding : MPEG-4 AVC/H.264

Bit-rate 1Mbps~13Mbps

Rate Control : : CBR

GOP Structure : IPPPP (P Frame adjustment, without B Frame )

Select to configure Logo, Caption and QR Coder in any Position of Video Picture

Audio Processing

Encoding : MPEG-1 Layer 2 , Optional: AAC-LC, AAC-HE v1(SBR), AAC-HE v2(SBR+PS),

Sampling rate : 48KHz

Resolution : 24-bit

Bit-rate : 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384K(mpeg-1 layer 2)

Audio Gain : 0-255

Multiplexing

Maximum PID Remapping 180 input per channel

PID remapping by automatically or manually

PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT

Accurate PCR adjusting

Max Numbers                     7 Group

4 RF output (4 RF can Separate mux)  in modulation  mode

1  IP (MPTS) out ( Separate modulation channels or  MTPS channels mux out)

Stream Output

DVB-ASI:  2 Separate ASI (Select from  modulation Channels or MPTS  channel), 75ohm, BNC, 188Bytes

MPEG TS over DVB-ASI (EN 50083-9)

RJ45 Port : 100/1000M GbE Port

Simultaneous output with N*SPTS (from HD -MI channels)  and  1*MPTS ( modulation or MPTS channels)

(Note: In modulation, 4RF support 1MPTS&128SPTS / 8RF support 8MPTS&512SPTS)

MPEG TS over UDP, unicast, and multicast streaming, MPEG TS over RTP/RTSP

Configurable packet size : (2-7)x188Bytes

Filter Null Packet

Total Bitrate : 1-200Mbps

(Should be More than Encoding bitrate)

Modulation Part

Connector :  1 Port,  F-Type, 75

Output Return Loss : 14 dB

MER : ≥40dB

RF output level : -24 ~ 0dbm, 1db step

RF frequency : 50 ~ 960Mhz, 1KHz step

separate control Frequency difference range : (0-40M)

Numbers of RF Channel : 4, 8/16(optional), 32(optional,only for DVBC)

Modulation Mode : 4/16/32*DVB-C, 4/8/16*DVB-T, 4/8/16*ATSC, 4/8/16* ISDB-T, 4/8/16*DTMB

DVB-T Standard EN300744

FFT mode : 2K, 8K (4 RF mode only support 2K)

Bandwidth : 6M, 7M, 8M

Constellation : QPSK, 16QAM, 64QAM

Guard Interval : 1/4, 1/8, 1/16, 1/32

FEC : 1/2, 2/3, 3/4, 5/6, 7/8

DVB-C Standard    J83.A (DVB-C, J83.B, J83.C)

Carrier	ANNEX A	Annex B		Annex C
Constellation (QAM)	16,32,64,128, 256	64	256	64/256
Bandwidth (Mhz)	8	6	6	6
Symbol Rate ( Mbaud)	5-7	5.057	5.361	4.2-5.3

ISDB-T Standard  ARIB STD-B31

Constellation : DQPSK, QPSK, 16QAM, 64QAM

Guard Interval : 1/32, 1/16, 1/8, 1/4

Transmission Mode : 2K, 4K,  8K (4 RF mode only support 2K)

Guard Interval : 1/32, 1/16, 1/8, 1/4

Code rate : 1/2, 3/4, 5/6, 7/8

BandWidth : 6Mhz

ATSC Standard : ATSC A/53

Constellation : 8 VSB

DTMB Standard            GB20600-2006

Constellation : 4QAM, 16QAM, 32QAM, 64QAM

Code rate : 0.4, 0.6, 0.8

Guard Interval : 420, 595, 945

System

Local interface : LCD + control buttons

Remote management Web/NMS

NMS interface : RJ45, 100M

Language : English

Environment

Voltage range : 100 to 240V AC ; 50/60Hz

Power consumption : 60W

Operation Temperature : 0 ~ 45℃

Storage  Temperature : -20 ~ 80℃

Dimensions : 482mm (L) * 380mm (W) * 44mm (H)

Weight : 4.5 kg
