Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MSD or OEM
-
Model Number:
-
MSD-0424Z/MSD-0424T
-
Color:
-
Black
-
Connector System ::
-
Board to Board
-
PCB installation direction::
-
vertical
-
Power supply pin number::
-
4
-
Signal supply pin number::
-
24
-
Working voltage (VAC)::
-
60, 200
-
Power Centerline (Pitch) (mm)::
-
6.35mm
-
Signal Centerline (Pitch) (mm)::
-
2.54mm
-
Connector type:
-
Backplane Connectors
-
Description:
-
CONN RCPT BLADE 28POS PCB
Quick Details
-
Type:
-
Connector
-
Application:
-
Power
-
Gender:
-
Male/Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MSD or OEM
-
Model Number:
-
MSD-0424Z/MSD-0424T
-
Color:
-
Black
-
Connector System ::
-
Board to Board
-
PCB installation direction::
-
vertical
-
Power supply pin number::
-
4
-
Signal supply pin number::
-
24
-
Working voltage (VAC)::
-
60, 200
-
Power Centerline (Pitch) (mm)::
-
6.35mm
-
Signal Centerline (Pitch) (mm)::
-
2.54mm
-
Connector type:
-
Backplane Connectors
-
Description:
-
CONN RCPT BLADE 28POS PCB
Product Description
|
Name
|
Type
|
Corresponding Type
|
|

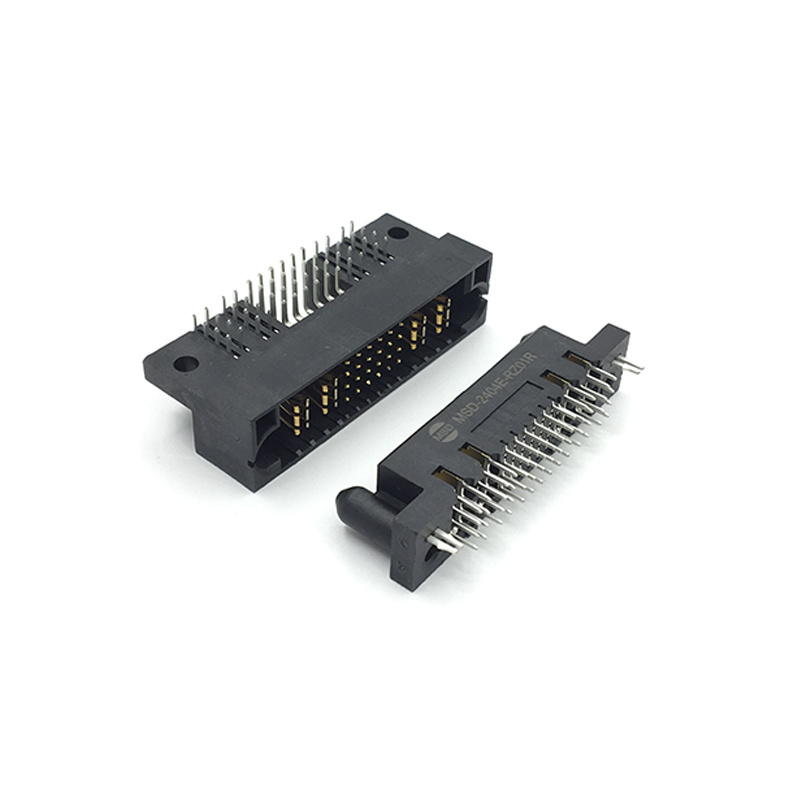

2P+24S+2P 90°straight plug
|
MSD-0424E-VT01R
|
MSD-0424E-RZ01R
|
|
2P+24S+2P 90°straight socket
|
MSD-0424E-RZ01R
|
MSD-0424E-VT01R
|
Application
MSD Series Power Blade Connector products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment etc.
Material:
Housing: PPA, glass fiber reinforce, UL94V-0, Black
Contact:
Power contact:High conductivity copper alloy,partial or all gold plating
Signal contact:Phosphor bronze,partial or all gold plating
PCB lock: Phosphor bronze, tin plating
|
Attribute
|
Value
|
|
Component Type
|
Power Supply Connectors
|
|
Gender
|
Male/Female
|
|
Header Pin Pattern (Left to Right)
|
Power/Signal/Power
|
|
Number of Contacts (Signal)
|
24
|
|
Number of Rows (Power)
|
4
|
|
Number of Rows (Signal)
|
4
|
|
Number of Rows (Power)
|
1
|
|
Orientation
|
Right Angle
|
|
Termination Style
|
Solder
|
|
Pitch (Power)
|
6.35mm (0.250in)
|
|
Pitch (Signal)
|
2.54mm (0.100in)
|
|
Current Rating
|
40A max. for One Powered Contact
|
|
Resistance (Contact)
|
Maximum for mated pair is 2mΩ
|
|
Dielectric Withstanding Voltage
|
2500V DC for power
|
|
Voltage Rating
|
250V
|
|
Color - Housing
|
Black
|
|
Operating Temperature Range
|
-40°C to +125°C
|
|
Material Housing
|
PPA, glass fiber reinforce, UL94V-0
|
|
Durability (Mating cycles)
|
250 Mating Cycles
|
|
Solder process
|
High Temp Solder Process
|
|
Plating Contact area
|
0.76μm (29.921μin) Gold
|
|
Tail Plating (Power)
|
1.98μm (78μin) Tin
|
|
Tail Plating (Signal)
|
1.98μm (78μin) Tin
|
|
Guide Feature
|
Guide Pin Pocket
|
|
Polarization Feature
|
Yes
|
|
Retention Feature
|
Board Lock
|
|
Packaging
|
Tray
|
