Quick Details
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
250*500
-
Year:
-
2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Voltage:
-
Customization
-
Dimension(L*W*H):
-
2200*2100*2175
-
Weight (KG):
-
1800
-
After Warranty Service:
-
Online and video support
-
Certificate:
-
CE
-
Spindle power(KW):
-
3.7
-
Magnetic chuck size:
-
250*500
Quick Details
-
Grinding Length(mm):
-
500
-
Table Travel (X) (mm):
-
560
-
Table Travel (Y) (mm):
-
275
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
250*500
-
Year:
-
2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Voltage:
-
Customization
-
Dimension(L*W*H):
-
2200*2100*2175
-
Weight (KG):
-
1800
-
After Warranty Service:
-
Online and video support
-
Certificate:
-
CE
-
Spindle power(KW):
-
3.7
-
Magnetic chuck size:
-
250*500
Product Overview
PRODUCT SPECIFICATIONS
|
Description
|
Unit
|

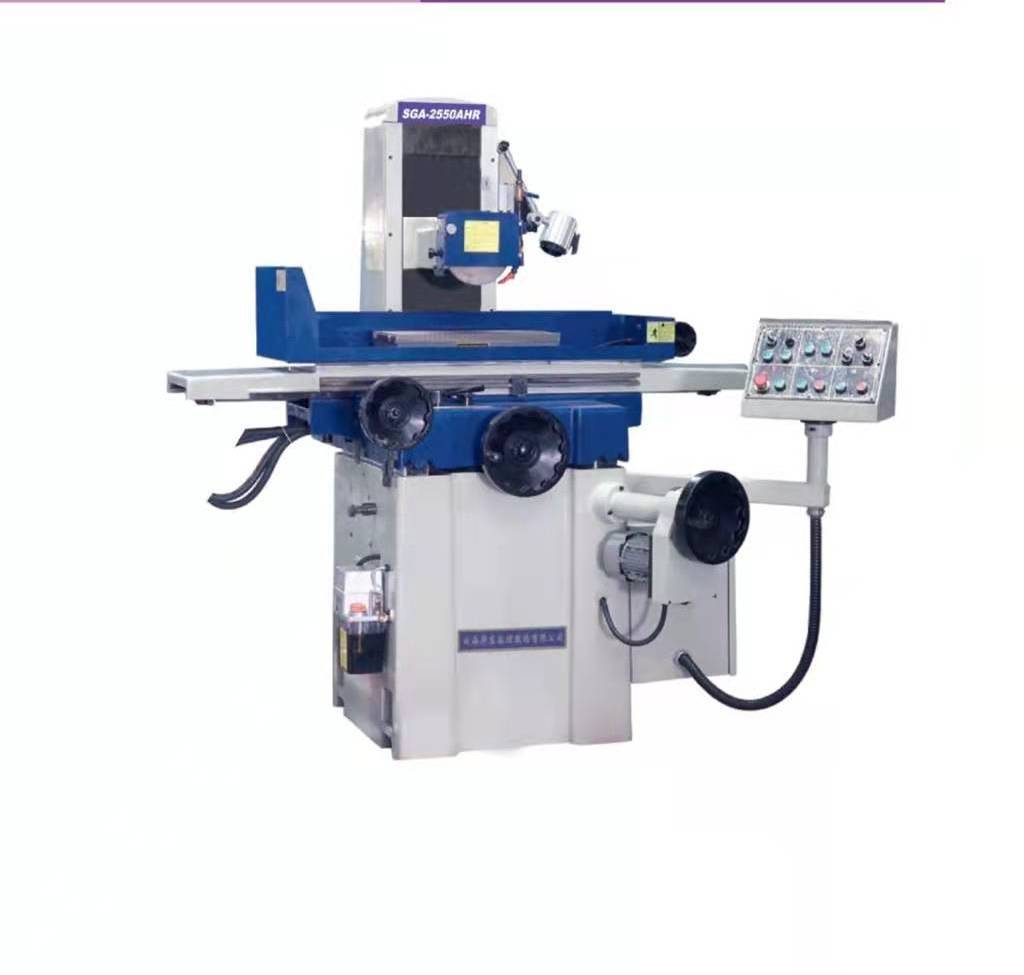

SGA2550AHR/AHD
|
|
Table size
|
mm
|
250*500
|
|
Cross travel
|
mm
|
560
|
|
Max.distance from spindle center to table
|
mm
|
450
|
|
Magnetic chuck size
|
mm
|
250*500
|
|
Speed of table longitudinal movement
|
m/min
|
7~23
|
|
Table transverse movement
|
|
|
|
Auto feed
|
mm/min
|
0.1~8
|
|
Rapid speed
|
mm/min
|
990
|
|
Feed of handwheel
|
mm/div
|
0.02
|
|
Wheelhead vertical movement
|
|
|
|
Rapid speed
|
mm/min
|
460
|
|
Feed of handwheel
|
mm/div
|
0.005
|
|
Grinding wheel
|
|
|
|
Speed
|
rpm
|
2850(50HZ), 3450(60HZ)
|
|
Size
|
mm
|
200*20*31.75
|
|
Spindle motor
|
KW
|
2.2
|
|
Hydraulic motor
|
KW
|
0.75
|
|
Cooling pump motor
|
KW
|
0.04
|
|
Elevating motor
|
KW
|
0.25(AHR model) 0.5(AHD model)
|
|
Cross feed motor
|
KW
|
0.04
|
|
Max.loading capacity od table(include magnetic chuck)
|
KG
|
180
|
|
Total rated power
|
KW
|
3.7
|
|
Height of machine
|
mm
|
1675
|
|
Gross weight
|
KG
|
1800KG
|
|
Package dimensions
|
mm
|
2200*2300*2175
|
|
Standard Accessories
|
|
|
|
Coolant tank
|
Balancing shaft
|
|
|
External wheel dresser
|
Working light
|
|
|
Wheel flange and loading tools
|
Open steady rest
|
|
|
Standard grinding wheel
|
Center
|
|
PRODUCT CONFIGURATION
Elctro-magnetic chuck
Coolant system with magnetic separator and paper filter
Wheel chuck
Coolant system with dust suction and magnetic separator
Two axis parallel dresser
Wheel balance stand
The above accessories are optional accessories.(Expect for the magnetic chuck)
