pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process. Widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development.

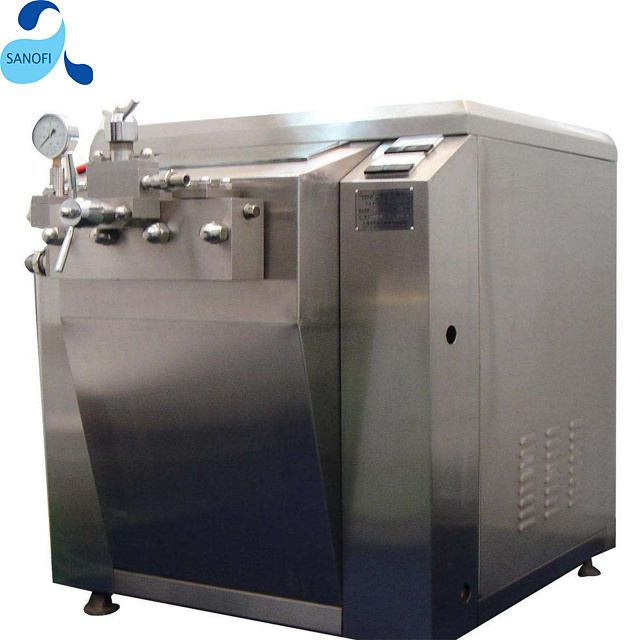

Fruit juice homogenizer, food viscolizer
Paramters
Name
type
Rated flowL/H
Rated pressure
Mpa
Working pressureMPa
Weight
Size (cm)
Power Kw
High pressure
homogenizer
GJB500-25
500
25
0~20
670
100×75×110
5.5
GJB1000-25
1000
25
0~20
670
100×75×110
7.5
GJB1500-25
1500
25
0~20
720
100×75×110
11
GJB1000-30
1000
30
0~24
720
100×75×110
11
GJB2000-25
2000
25
0~20
1150
100×75×110
18.5
GJB2500-25
2500
25
0~20
1250
100×75×110
22
GJB3000-25
3000
25
0~20
1350
100×75×110
30
GJB4000-25
4000
25
0~20
1400
100×75×110
37
GJB5000-25
5000
25
0~20
2000
100×75×110
45
Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
Sealing material can work under less than 150
o
C, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
Lubrication of homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later.
The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following no-grain materials
