Quick Details
-
Brand Name:
-
G5
-
Model Number:
-
E-1135-N2P
-
Warranty:
-
12 Months
-
Function:
-
Test the purity in tyre, Auto Nitrogen Filling
-
Product name:
-
Nitrogen Generator and Conversion System for Single Tyre Application
-
Product model:
-
E-1135-N2P
-
Certification:
-
ce
-
Usage:
-
Nitrogen Inflation
-
Maximum Nitrogen Pressure In tank:
-
102PSI/7BAR
-
Nitrogen Output:
-
58L/min
-
Nitrogen Purity:
-
97%+
-
Maximum inflate set pressure:
-
90PSI/6.2BAR
-
Nitrogen Outlets:
-
1
Quick Details
-
Car Fitment:
-
BMW (BRILLIANCE)
-
Size:
-
1255*720*435mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G5
-
Model Number:
-
E-1135-N2P
-
Warranty:
-
12 Months
-
Function:
-
Test the purity in tyre, Auto Nitrogen Filling
-
Product name:
-
Nitrogen Generator and Conversion System for Single Tyre Application
-
Product model:
-
E-1135-N2P
-
Certification:
-
ce
-
Usage:
-
Nitrogen Inflation
-
Maximum Nitrogen Pressure In tank:
-
102PSI/7BAR
-
Nitrogen Output:
-
58L/min
-
Nitrogen Purity:
-
97%+
-
Maximum inflate set pressure:
-
90PSI/6.2BAR
-
Nitrogen Outlets:
-
1
Product Description
Welcome to G5. Please "
contact supplier"
or "send inquiry" before placing an order. Thank you!
Product Images
Specification

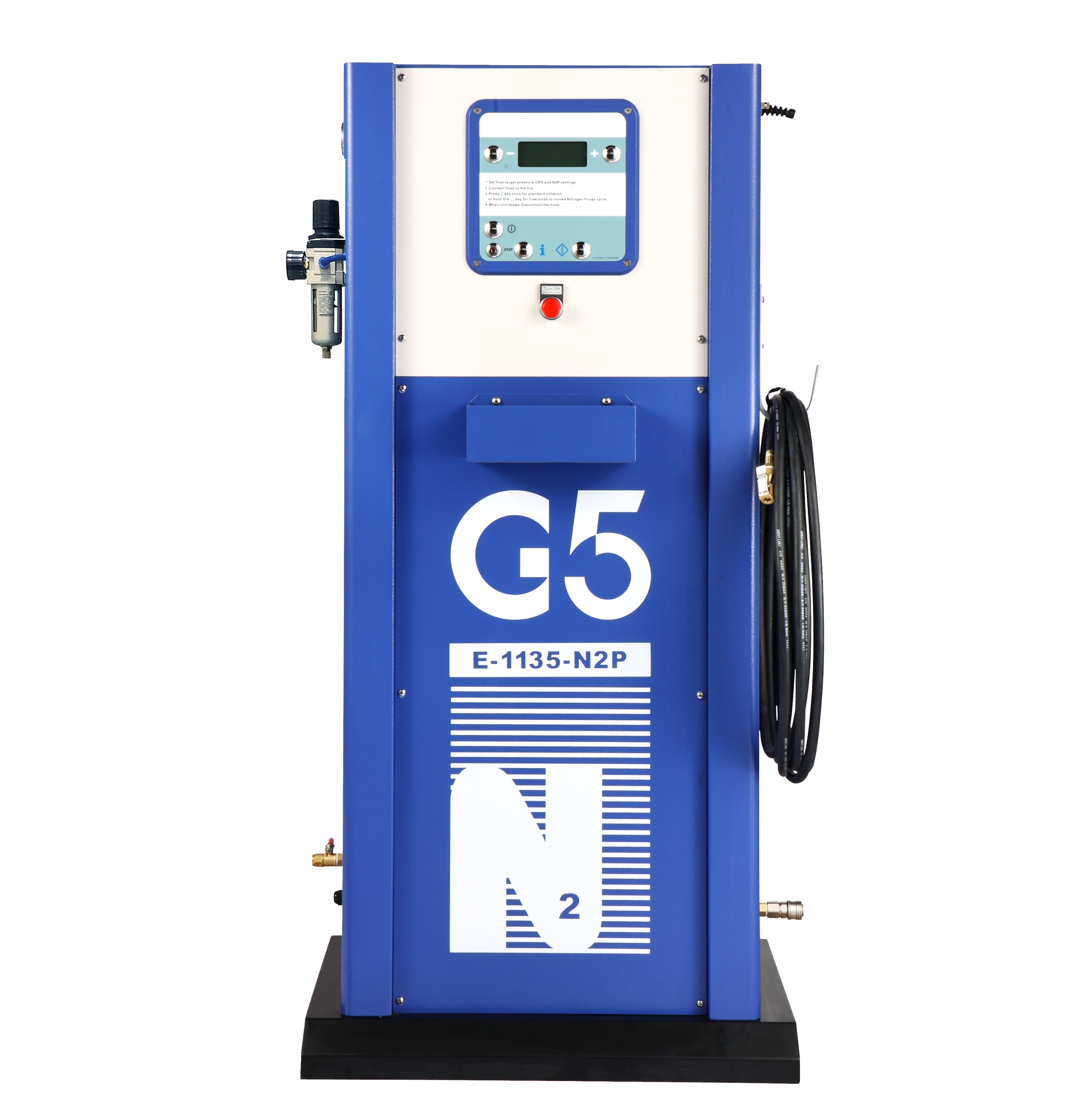

| E-1135-N2P Nitrogen Generator and Conversion System for Single Tyre Application(Indoor) | |
| Main Feature | |
| Converts the tyre to Nitrogen at the touch of a button | |
| Auto-Start Inflation | |
| Over Pressure Setting (OPS) | |
| Single Tyre Application | |
| Suit for: Motorcycle, Car, Light Truck | |
| Technical Data | |
| Dimensions (Height*Width*Depth) | 1255mm*720mm*435mm 49.4"*28.3"*17.1" |
| Net Weight | 89kg/196.2lbs |
| Gross Weight | 106kg/233.7lbs |
| Packing Size (Height*Width*Depth) | 1380mm*730mm*510mm 54.3"*28.7"*20.1" |
| Power Requirement | 100-240Vac 50/60Hz |
| Power Consumption | 30VA |
| Operating Temperature Range | -20°C/-4°F to 70°C/158°F |
| Compressed Air Input Range | 87-123PSI/6-8.5bar/600-850kPa |
| Compressed Air Input Flow | 250L/min (8.0cfm) |
| Nitrogen Purity | 95-99+% |
| Nitrogen Output | 58L/min (2.0cfm) @116PSI/8bar/800kPa Absorption pressure |
| Max Nitrogen Pressure in Tank | 102PSI/7bar/700kPa |
| Operating Range | 5-90PSI/0.3-6.2bar/35-620kPa |
| Resolution | 1PSI/0.1bar/5kPa |
| Units of Measurement | PSI/bar/kPa |
| Specification | |
| 1. Generates nitrogen from your compressed air | |
| 2. Pre-Filter | |
| 3. 50L/13.2gal (us) internal nitrogen storage tank | |
| 4. Auto-start inflation | |
| 5. Automatic zero drift adjustment | |
| 6. Remain at last setting | |
| 7. Audible and visual end of the cycle signal indicators | |
| 8. Self-diagnostic features | |
| 9. Vandal resistant mechanical switches | |
| 10. Large backlight LCD display | |
| 11. 1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck | |
| 12. Comprehensive diagnostics and error reporting | |
| 13. Nitrogen purge and fill cycle (N2P) | |
| 14. Nitrogen purity test port | |
| 15. Adjustable over pressure setting (OPS) | |
| 16. Adjustable number of cycles | |
| 17. Adjustable lower purge pressure limit | |
| 18. Auto Shut-Off | |
| 19. 1 Nos. Nitrogen Outlet to connect the unit and your tyre inflation gun | |
|
EST is the professional manufacturer of G5 brand tyre inflation equipments for 20+ years.
EST is a technology leader in the design and manufacture of tyre inflation equipments. EST is the 1st PSA nitrogen tyre Inflation system manufacturer in the world. Our main products including: automatic tyre inflators, automatic nitrogen tyre inflation systems, tyre inflation and vacuum integrated machines, tyre inflation tools, etc. Our products are widely used in gas stations, communities, fleets, tyre shops, automobile repair plants and so on, and some of them are used in the electronics and food industries too. There are more than 100,000 clients in over 80 countries using our products in the world. Our products are manufactured to ISO 9001: 2015 quality standards accredited by SGS. |
Our Advantages
Our Certification
Our Exhibition
F A Q
| 1. Are you a manufacturer or a trading company? What's your main products? | We are a 20 + years Tyre Inflation Equipment Source Factory with own brand of G5. Automatic Tyre Inflators,Nitrogen Tyre Inflators,Handheld Tyre Inflators,Air & Vacuums are our main products, all ISO9001 and CE certified. |
| 2. Do you accept OEM or custom design order? | Yes, we do. Both are warmly welcomed. With our strong R & D teams, we have provide this service to many customers around the world. If you can’t find the products you want to buy from our website, please start online TM or inquiry or telephone calls, we can design and produce the products based on your required specifications. |
| 3. What’s your warranty terms? | We provide one year warranty. If any problem happened, we will offer fast technical assistance and send necessary parts to you to fix everything. |
| 4.What payment terms are you accept? | We accept T/ T, L/ C, you can contact us for more details. |
| 5.Where is your factory and loading port located? | Our factory and loading port both in Zhuhai city, Guangdong province, China. You are welcomed to visit our factory any time. |
| 6.How you protect customer privacy? | Customer privacy is important to us. we will not disclose your information to any third party without permission, necessary agreement can be issued if needed. |
