Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YST
-
Dimension(L*W*H):
-
1150L *1150W *1280H mm
-
Weight:
-
240 kg
-
Wall Thickness:
-
2.5 mm
-
Lid Openning Diameter:
-
450 mm
-
Discharge Hole Diameter:
-
50 mm
-
Maximum Payload:
-
1500 kg
-
Stacking (in warehouse):
-
3 high
-
Stacking Capacity (in transport):
-
2 high
-
Dim(DxW):
-
1150L *1150W *1280H mm
-
Material:
-
Stainless steel
-
Application:
-
liquid,chemical,diesel,oil,fuel,water,etc
-
Customized order:
-
Rich experience in OEM,ODM
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001,ISO14000,OHSAS18001
Quick Details
-
Capacity:
-
1000L
-
Max Working Pressure(MPa):
-
0.02 MPa
-
Core Components:
-
Stainless steel material and valve
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YST
-
Dimension(L*W*H):
-
1150L *1150W *1280H mm
-
Weight:
-
240 kg
-
Wall Thickness:
-
2.5 mm
-
Lid Openning Diameter:
-
450 mm
-
Discharge Hole Diameter:
-
50 mm
-
Maximum Payload:
-
1500 kg
-
Stacking (in warehouse):
-
3 high
-
Stacking Capacity (in transport):
-
2 high
-
Dim(DxW):
-
1150L *1150W *1280H mm
-
Material:
-
Stainless steel
-
Application:
-
liquid,chemical,diesel,oil,fuel,water,etc
-
Customized order:
-
Rich experience in OEM,ODM
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001,ISO14000,OHSAS18001
Product Description

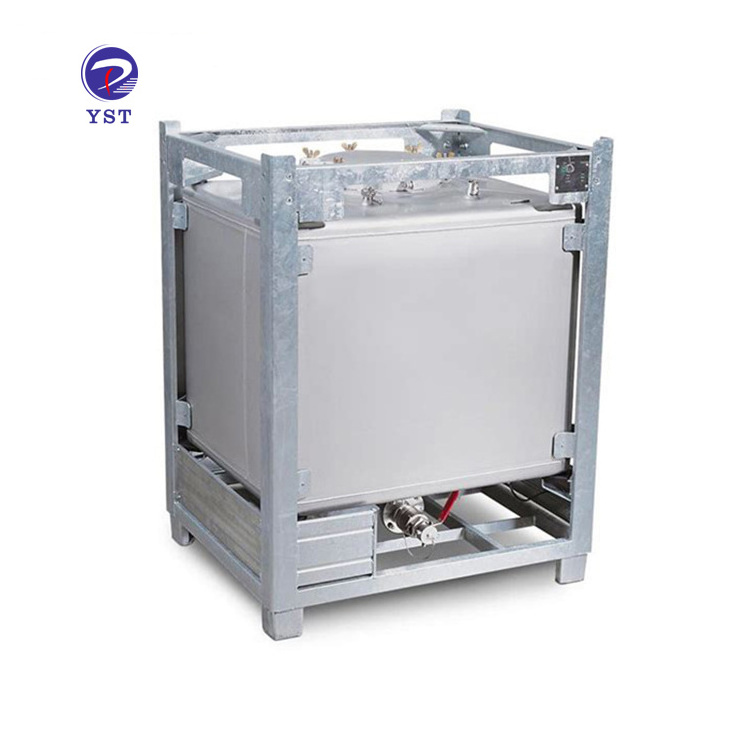

Heavy duty stackable galvanized chemical solution 1000L stainless steel IBC tank
These stainless steel intermediate bulk containers are the most advanced liquid handling tank in the market today. Each tank meets or exceeds all Intermediate Bulk Container requirements.
Specification
|
SPECIFICATIONS
|
|
|
|
|||
|
External
|
Length
|
1150mm
|
3’–9 17/64”
|
|||
|
|
Width
|
1150mm
|
3’–9 17/64”
|
|||
|
|
Height
|
1280mm
|
4’–2 25/64”
|
|||
|
Fork Pocket Height
|
|
88mm
|
3 1/2”
|
|||
|
Wall Thickness
|
|
2.5mm
|
|
|||
|
Lid Opening Diameter
|
|
450
|
1’–5 45/64”
|
|||
|
Discharge Hole Diameter
|
|
50
|
2”
|
|||
|
Inside Cubic Capacity
|
|
1000 Litres
|
264 Gallon
|
|||
|
|
|
KG
|
LBS
|
|||
|
Maximum Gross Weight
|
|
1740
|
3835
|
|||
|
Tare Weight (nominal)
|
|
240
|
529
|
|||
|
Maximum Payload
|
|
1500
|
3306
|
|||
|
Stacking Capacity (in the warehouse)
|
|
3 high
|
|
|||
|
Stacking Capacity (in transport)
|
|
2 high
|
|
|||
|
SPECIAL FEATURES
|
|
|
|
|||
|
1. Approval: UN 31AY,IMDG2006.
2. Material: Tank-0Cr18Ni9; Frame-SS400/Q345B; Seal gasket- FKM.
3. Tank finish: internal and external surface 2B; welding line with acid-washing.
4. Rated operation pressure: atmosphere pressure.
5. Relief valve:setting pressure(0.21bar), vacuum pressure(0.03bar);outlet :3PC ball valve.
6. Four-way fork entry tubes; top lift.
7. Suitable for storage and shipment thinner or other paint(density≤1.5 g/ cm3).
|
|
|
|
|||
1.Four-way fork lift entry on side drain tanks
2.Stackable,can save more than 50% space
3.Heavy duty lifting lugs and stackable legs
Uses & Packaging
Plastic film packaging or according the requirements of customers
