Quick Details
-
Rated Voltage:
-
12v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wonsmart
-
Model Number:
-
WS9260B-12-250-S200
-
Certification:
-
CE/ROHS/ETL/REACH
-
Part No:
-
WS9260B-12-250-S200
-
Speed:
-
28000rpm
-
Voltage:
-
12V
-
Current:
-
15A
-
Air pressure:
-
7Kpa
-
Air flow:
-
120m³/h
-
Product weight:
-
420g
-
Motor type:
-
dc brushless motor
-
Driver:
-
External driver
Quick Details
-
Application:
-
Air Blower
-
Pressure:
-
High Pressure
-
Warranty:
-
1 years
-
Rated Voltage:
-
12v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wonsmart
-
Model Number:
-
WS9260B-12-250-S200
-
Certification:
-
CE/ROHS/ETL/REACH
-
Part No:
-
WS9260B-12-250-S200
-
Speed:
-
28000rpm
-
Voltage:
-
12V
-
Current:
-
15A
-
Air pressure:
-
7Kpa
-
Air flow:
-
120m³/h
-
Product weight:
-
420g
-
Motor type:
-
dc brushless motor
-
Driver:
-
External driver
Product Description
Specification
|

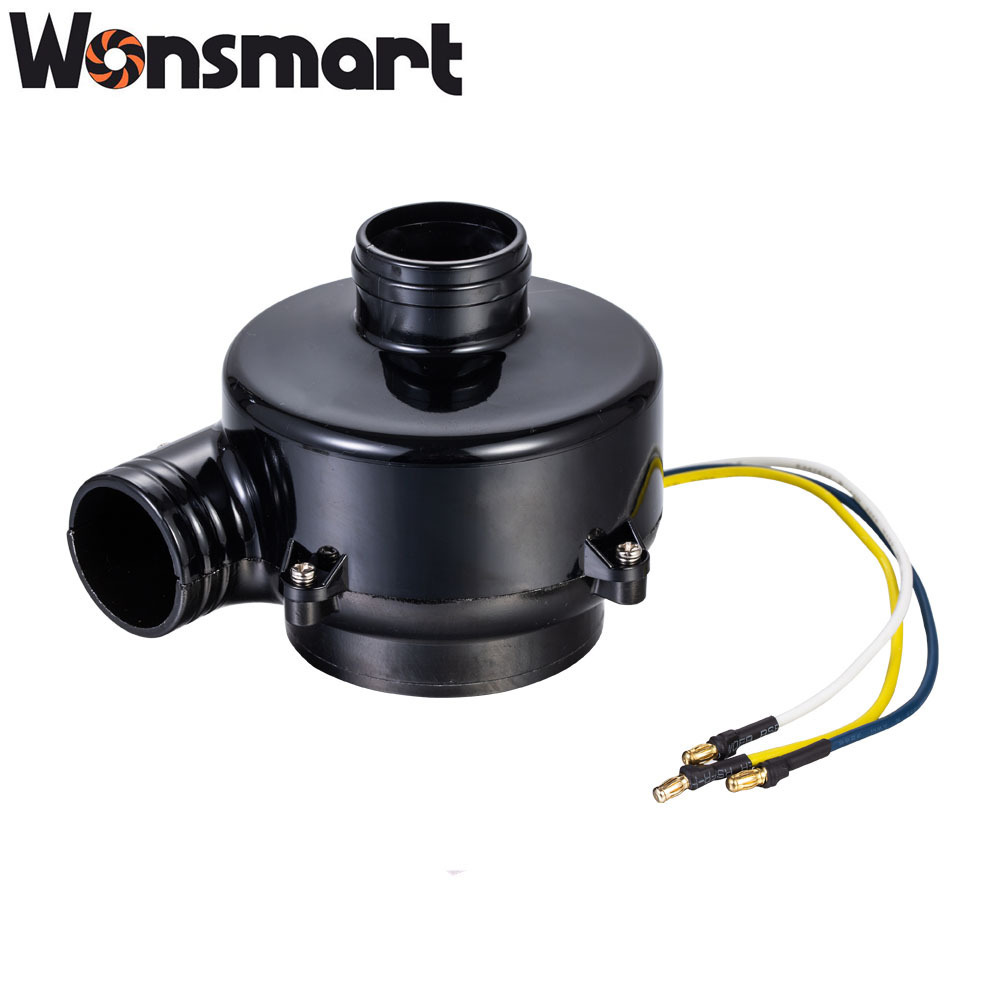

Part Name
|
Centrifugal Fan
|
|
Part No
|
WS9260B-12-250-S200
|
|
Rated votlage
|
12VDC
|
|
Life time(MTTF)
|
>20,000hours
|
|
Max power consumption
|
180W
|
|
Unit weight
|
420g
|
|
Bearing
|
NMB Ball bearing
|
|
Driver board
|
External
|
Performance Curve
WS9260B-12-250-S200 blower can reach maximum 120m³/h airflow at 0 kpa pressure and maximum 7kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 7kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
