Quick Details
-
Weight:
-
7500 kg
-
Name:
-
concrete mixer truck
-
Certification:
-
ISO CE
-
Product name:
-
Concrete Mixer Truck
-
Power type:
-
Diesel Engine Concrete Mixture Machine
-
Driving type:
-
4 Wheel Driver
-
After-sales Service Provided:
-
1 Year/2000hours
-
Brand:
-
LTMG
-
Mixing capacity:
-
3 - 4 M3
-
Application:
-
Construction Engineering
-
Feature:
-
High Effiency
Quick Details
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LTMG
-
Weight:
-
7500 kg
-
Name:
-
concrete mixer truck
-
Certification:
-
ISO CE
-
Product name:
-
Concrete Mixer Truck
-
Power type:
-
Diesel Engine Concrete Mixture Machine
-
Driving type:
-
4 Wheel Driver
-
After-sales Service Provided:
-
1 Year/2000hours
-
Brand:
-
LTMG
-
Mixing capacity:
-
3 - 4 M3
-
Application:
-
Construction Engineering
-
Feature:
-
High Effiency

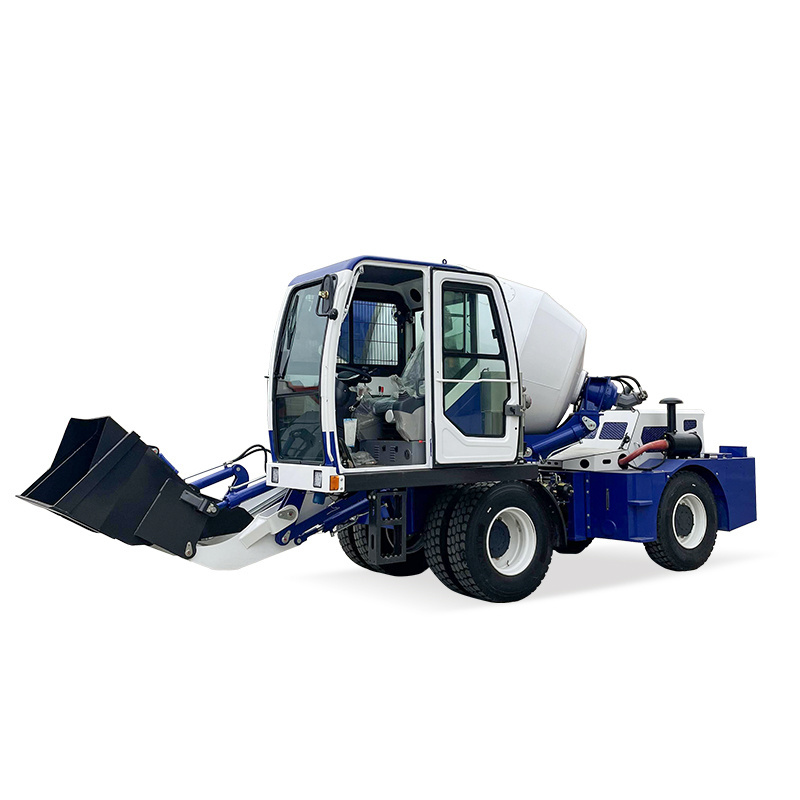

Product Shows
Advantages
|
MODEL
|
|
LTM35
|
|
|
||
|
Vehicle parameters
|
1
|
Integrated structure, rear wheel steering
|
The drum rotates 270 ° and can be lifted and lowered
|
|
||
|
|
2
|
overall dimension (L*W*H)
|
7520*2550*4300mm
|
|
||
|
|
3
|
wheel base (mm)
|
2350mm
|
|
||
|
|
4
|
wheel tread
|
2030mm
|
|
||
|
|
5
|
Curb Weight（kg）
|
7600kg
|
|
||
|
|
6
|
Maximum speed (km / h)
|
40
|
|
||
|
|
7
|
Maximum climbing gradient
|
45°
|
|
||
|
|
8
|
Steering angle
|
28°±1.5°
|
|
||
|
Engine
|
10
|
YN48GBZ
|
YUNNEI YN48GBZ
|
|
||
|
|
11
|
type
|
4-cylinder inline, direct injection, water-cooled, four-stroke, supercharged
|
|
||
|
Transmission system
|
16
|
torque converter
|
280 Split gearbox torque converter
|
|
||
|
|
17
|
gearbox mode
|
280 Power shift transmission
|
|
||
|
|
18
|
gears
|
4 forward shift 4reverse shift
|
|
||
|
|
19
|
maximum speed
|
40km/h
|
|
||
|
Mixing and unloading
|
20
|
Geometric volume of drum
|
5.5m³
|
|
||
|
|
21
|
Rotation speed of drum
|
15-20 rpm
|
|
||
|
|
22
|
Concrete output
|
3.5-4m³/Batch
|
|
||
|
|
23
|
Drum lift time
|
3.5s
|
|
||
|
Brake system
|
27
|
service brake
|
Air brake
|
|
||
|
|
28
|
parking brake
|
Manual disk brake
|
|
||
|
Tyre
|
29
|
type specification
|
1670-20 Rail tyre
|
|
||
|
|
30
|
front tyre pressure
|
0.5Mpa
|
|
||
|
|
31
|
rear tyre pressure
|
0.4Mpa
|
|
||
