Quick Details
-
Dimension(L*W*H):
-
as you need
-
Power (kW):
-
60 kW
-
Weight (KG):
-
12000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
waste tire recycling
-
semi-auto capacity:
-
500-600kg/h
-
semi-auto mesh:
-
10-100 mesh
-
rubber cracker bush:
-
bearing bush
-
Reducer:
-
hardened reducer
-
Weight:
-
12T
-
Application:
-
Rubbers Recycling Industry
-
End product:
-
Rubber Power
-
Key word:
-
Rubber Tire Recycling Equipment
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guang yue
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
as you need
-
Power (kW):
-
60 kW
-
Weight (KG):
-
12000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
waste tire recycling
-
semi-auto capacity:
-
500-600kg/h
-
semi-auto mesh:
-
10-100 mesh
-
rubber cracker bush:
-
bearing bush
-
Reducer:
-
hardened reducer
-
Weight:
-
12T
-
Application:
-
Rubbers Recycling Industry
-
End product:
-
Rubber Power
-
Key word:
-
Rubber Tire Recycling Equipment

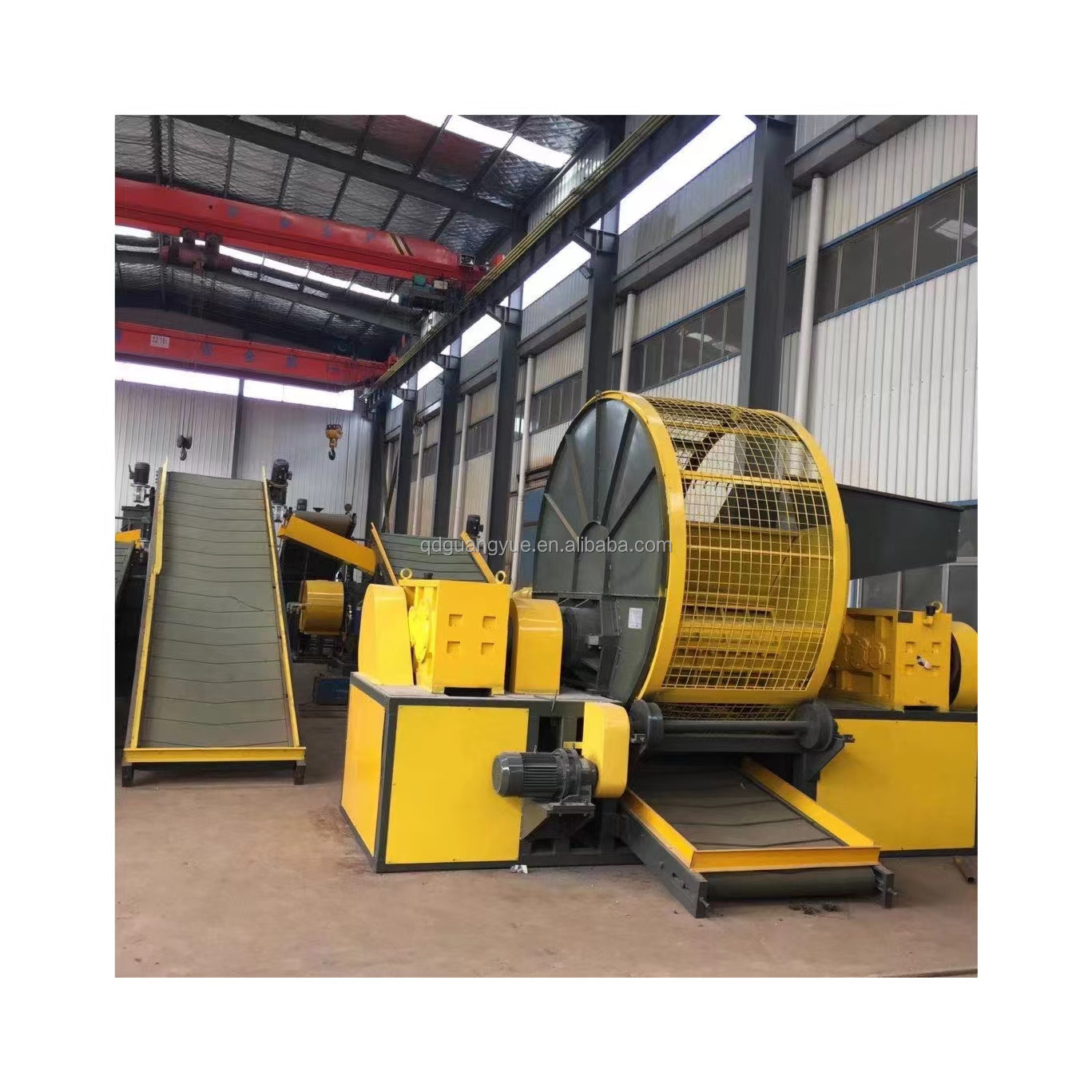

fully automatic waste tire recycling production line from china
1 General layout of production line:
This line is about 700- 1000kg /h capacity of rubber powder, and the fineness of granular is about 10-30mesh.(Could Configure fineness granulator as per customer's needs for bigger mesh,say 120mesh.)
Finished products: Rubber Powder, Steel Wire, Nylon.
1: Workers: 2 operator s
2:Containers:This whole line will need 4 set 40'GP.
A complete set of equipment in detail(rubber powder production line)
waste tyre--debeader(separate the steel wire)---- tyre shredder(shred the tyre into block tyre 50x50 mm)----rubber crusher(final size about 10-30 mesh) ----Coarse Iron Separator---- Coarse Fiber Collector----Fine Iron Separator---- Fine Fiber Separator
2 Equipment Specification
| NO | Name and picture | Main parameter |
| 1 |
|
1:production:60-80 tires/hour 2:power:15kw 3:size:2250*1660*1490 4:weight:6500kg |
| 2 |
1:demension:4450*300*1800 2:1.1kw: 3:weight:1100kg |
|
|
use:to separate the metal exhaustive 1:demension:1600*50*40mm 2:0.37kw 3:weight:100kg |
||
|
use:to conveyor the granular into fiber separator power:4.75kw weight:250kg
|
||
|
use:to separate the fiber from the rubber granular 1:3-5T/H 2:Power;6.25kw 3:overall size1600*1600*4300mm 4:3200kg |
3 Features:
1 For big truck and car tyre.
2 Fully-automatic .
3 Magnetic system :separate steel wire from rubber powder.
4 Fine rubber powder pulverizer: produce all kinds of mesh from 6 -120.( optional )
5 with CE , ISO-9001.
6 professional, ensure quality and delivery
4 Rubber Powder Application
10-20 mesh: plastic runway,all kinds of field
30 mesh: insulation & waterproof materials, reclaimed rubber
40 mesh: waterproof membranes,carpet padding, stable mats
60 mesh: reclaimed rubber, tire mats, car underbody seal .
80 mesh: seals, buffers, styrofoam , pearl pad, brake bushings
100 mesh: specialized packing shoe, sports equipment tires.
120 mesh: chemical sealants, rubber seepage mixture.
5 .After Sale Service
1.Provide necessary spare parts for machines
2.Provide extensive after-sale service: installation, commission, and training.
3.Provide Lift-time technical guidance and support.
