Quick Details
Quick Details
-
Type:
-
Embedded Industrial Motherboard
-
Brand Name:
-
ePona
-
Place of Origin:
-
Shenzhen

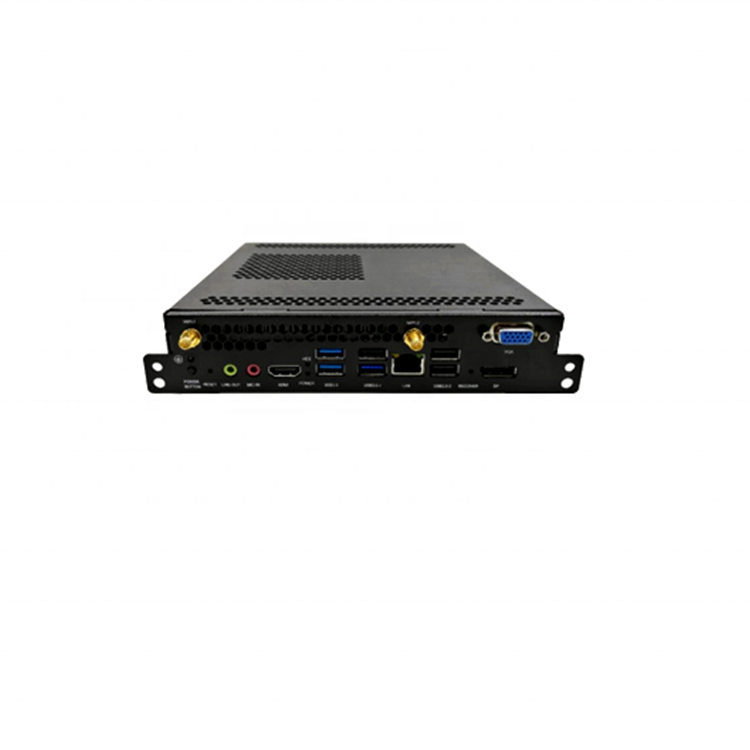

Intel Skylake-S LGA1151 based industrial computer / pc with i3, i5 for i7 CPU
Features:
| Intel®OPS-C Standard Module |
| Intel Skylake-S platform |
| SO-DIMM DDR4 Memory |
| JAE 80-pin connection |
| Support M.2 SSD Module |
| Support M.2 WiFi Module |
| Specifications: | |
| Case material: | Metal |
| Processor: | Intel® Skylake-S LGA1151, TDP. 65W |
| Memory: | SO-DIMM DDR4 2133MHz Max 16GB |
| Graphics : | Intel® HD Graphics 5series |
| Audio: | Realtek ALC662 HD Audio IC |
| Power input: | 12-19v DC IN |
| Storage Interface: |
1 x 2.5” SATA HDD/SDD
1 x M.2 2280 SSD |
| I/O Ports: |
3 x USB3.0 Type-A
3 x USB2.0 Type-A 1 x RJ45 10/100/1000M 1 x HDMI 1.4 out, Max.4K/30Hz 1 x DP1.2 out,Max.4K/60Hz 1 x VGA out (optional) 1 x 3.5mm Line out 1 x 3.5mm Mic in 2 x WIFI/BT ANT 1 x Power button 1 x Recover button 1 x Power LED 1 x HDD/SSD LED |
| LAN: | Realtek Gigabit Ethernet |
| Wireless : | 1 x M.2 2230 WIFI/BT Module |
| JAE 80-pin : |
1 x HDMI 1.4 out, 4K/24Hz,
3 x USB2.0/3.0 TTL |
| Watchdog | Support |
| Temperature: |
Operating -5℃~45℃
Storage -20℃~70℃ |
| Operational Humidity: | 10%~95% (non-condensing) |
| Dimension: | 195(L) x 180(W) x 42(H) mm |
| Net Weight: | 1.5kg |
| Packing Details: | |
| Packing: | Foam bag and gift box |
| Accessories: | Manual, CD driver |
| WIFI antenna : | integrated |
