Quick Details
-
Size:
-
4116*2800*1760mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BaingQiang
-
Power:
-
2.25
-
Name:
-
towel laundry folding machine
-
Other name:
-
chinese towel laundry folding machine
-
Patent products:
-
static-free patent
-
biggest folding scope:
-
3000mm*3000mm,3300*3300mm
-
Max NO. of Folds:
-
5/32
-
Rated Voltage:
-
AC380/50
-
Motor Power:
-
1.3
-
Air Inlet Diameter:
-
G1/2"
-
Min Air Inlet Pressure:
-
6.5Mpa
-
Total Weight:
-
1600
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Video technical support
-
Weight:
-
1780kg
-
Size:
-
4116*2800*1760mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BaingQiang
-
Power:
-
2.25
-
Name:
-
towel laundry folding machine
-
Other name:
-
chinese towel laundry folding machine
-
Patent products:
-
static-free patent
-
biggest folding scope:
-
3000mm*3000mm,3300*3300mm
-
Max NO. of Folds:
-
5/32
-
Rated Voltage:
-
AC380/50
-
Motor Power:
-
1.3
-
Air Inlet Diameter:
-
G1/2"
-
Min Air Inlet Pressure:
-
6.5Mpa
-
Total Weight:
-
1600
Hotel Commercial Laundry Linen Folding Machine Automatic Folding Fabric Cloth Folding Laundry Machine

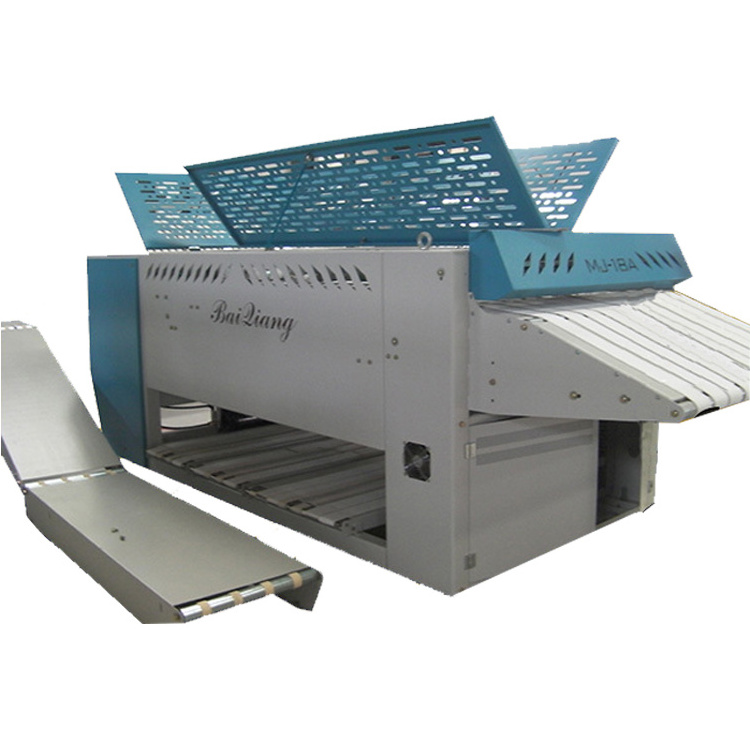

Pictures of towel laundry folding machine:
Machine Parameter for towel laundry folding machine:
| Model | ZD3000V | ZD3300V |
| Max Folding Speed(m/min) | 53 | 53 |
| Max Folding LxW(mm) | 3000*3000 | 3300*3300 |
| Max NO. of Folds(times) | 32 | 32 |
| Rated Voltage | AC380/50 | AC380/50 |
| Motor Power(kw) | 2.25 | 2.25 |
| Air Inlet Diameter(inch) | G1/2" | G1/2" |
| Min Air Inlet Pressure ( Mpa ) | 0.7 | 0.7 |
| Air Consumption(m 3 /h) | 10 | 10 |
| Dimension(mm) | 4116*2800*1760 | 4416*2800*1760 |
| Total Weight(kg) | 1780 | 1830 |
Important parts are imported :
1.E
lectro-
O
ptical
S
ystem
is
Germany P+F
2.
C
lutch
B
rake
is
Japan Mikipulley .
3.
M
otor
is
TaiWan S-Bond
4.
P
neumatic
C
omponent
is
Korea ARK
Features of towel laundry folding machine :
1- Intelligent controller with TOUCH SCREEN
2- With SELF-DIAGNOSIS function and SELF-MANAGEMENT SYSTEM, perfect SAFE-PROTECTION SYSTEM and SELF-MAINTENANCE for testing points
3- Programmable optional SINGLE, DOUBLE and FOUR lanes simultaneous folding
4- STANDARD 1 st , 2 nd and 3 rd folds by air, 4 th and 5 th folds by Knife and blade; Optional 1 st and 2 nd folds by air, 3 rd 4 th and 5 th folds by Knife and blade
5- AUTOMATIC BELT TENSIONING in cross fold section and jam alarm in cross fold section
6- All valves are pneumatically control
7- “By pass” system
8- Precise and accurate folds
9- Frequency inverter
10- Emergency stop buttons
11- Production counters per lane
12- High quality folding performance
13- Measurement by PHOTOELECTRIC SENSORS
14- Uses the HIGH INTELLIGENCE INFRARED TESTING SYSTEM to detect the size of linen and actual movement speed to improve the fold precision and accuracy.
15- With the function of FOUR CHANNELS FOLDING (TWO LATERAL FOLDS AND TWO CROSS FOLDS), this folder can improve the ironing and folding capacity of small linen, and lower the energy consumption
16- China pioneering ANTI-STATIC BAR effectively reduces the static on the linen, to improve the folding performance and ensure stable and reliable operation.
17- With PATENTED REVERSE ANTI-STATIC DEVICE, it can remove the static on the belts, to avoid the adhesion of the linen and belts in the process of folding.
18- Variable speed synchronizes by speed of flatwork ironer; Working together with various flatwork ironers
19- STACKER STATION is optional.
Standard Lateral Folds Section:
Folding width: Max. 3.3m
Number of lanes: 1, 2, or 4
Number of lateral folds: 1 or 2
Max. length single-lane: 3.3m
Max. length multi-lane: 1.2m
Standard Cross Folds Section:
Number of lanes: 1
Number of cross folds : 1, 2 or 3
Max. width: 850mm
Production Flow for towel laundry folding machine:
