Using Weichai stock and YTO famous-quality engines, matching the bosch common rail
system.with strong power and low energy consumption.
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2023
-
Engine Brand:
-
yto weichai
-
Weight:
-
2300 KG
-
Use:
-
Farm Working Agriculture
-
Application:
-
Farm Garden Lawn
-
PTO Speed:
-
540/760rpm 540/1000rpm(Optional)
-
Color:
-
Customer Requirements
-
Key Word:
-
Farm Tractor Machine 4x4
-
After-sales Service Provided:
-
Online Support
-
Gear shift:
-
16+16 Shift
-
Fuel:
-
Diesel
-
Clutch:
-
Double Stage Clutch
-
Engine type:
-
6 Cylinder Engine
Quick Details
-
Rated Power (HP):
-
280hp
-
Brand Name:
-
tavol
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2023
-
Engine Brand:
-
yto weichai
-
Weight:
-
2300 KG
-
Use:
-
Farm Working Agriculture
-
Application:
-
Farm Garden Lawn
-
PTO Speed:
-
540/760rpm 540/1000rpm(Optional)
-
Color:
-
Customer Requirements
-
Key Word:
-
Farm Tractor Machine 4x4
-
After-sales Service Provided:
-
Online Support
-
Gear shift:
-
16+16 Shift
-
Fuel:
-
Diesel
-
Clutch:
-
Double Stage Clutch
-
Engine type:
-
6 Cylinder Engine

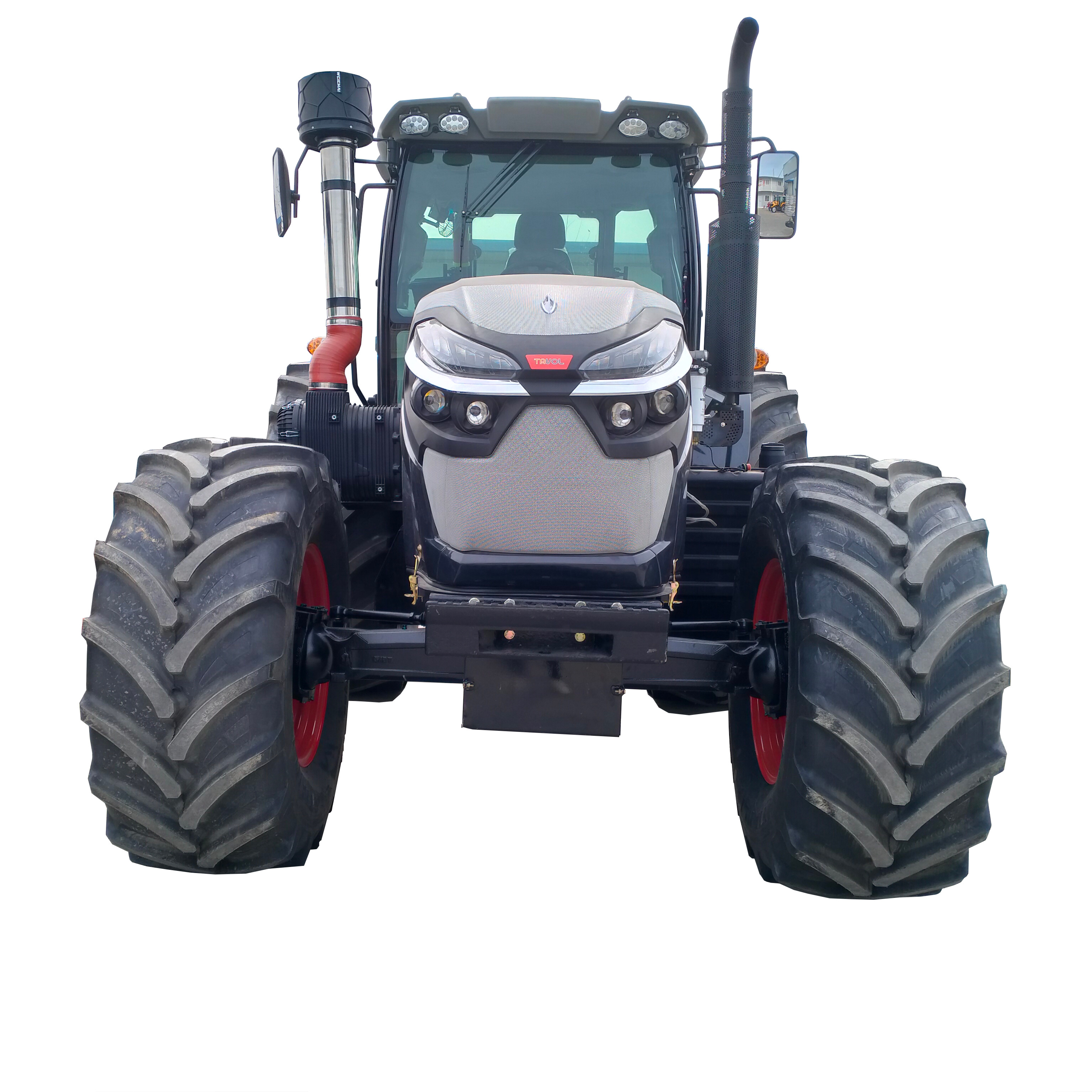

Basic tractor introduction
High efficient agricultural equipment Farm Machinery traktor 4x4 mini farm 4wd compact tractor with
Shandong Tavol Agricultural Machinery Co., Ltd. are Focused on Development Of the Characteristic Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; High-end Intelligence, Like Unmanned Driving and Beidou Precision Agriculture; also Automation like CVT and Power Gear Shift etc. Products range: 25hp-280hp Farm Tractors and Other Farm Machines.
|
Item
|
Unit
|
Detail
|
|
Model
|
/
|
TL2804-Wheel tractor
|
|
Type
|
/
|
Wheel
|
|
Drive
|
/
|
4Wheel
|
|
Sized (L×W×H)
|
mm
|
5520×2560×3220（Cab top）
|
|
Wheelbase
|
mm
|
2845
|
|
Tread (Front wheel/Rear wheel)
|
mm
|
1810、1920、1940、2050、
2070、2190/1820～ 2370 |
|
Weight
|
kg
|
7250
|
|
Gear Shift（F/R
|
/
|
16/16
|
|
Connection mode between engine and double clutch
|
/
|
Direct connection/double clutch
|
|
Cabin
|
/
|
6 post
|
|
Engine structural type
|
/
|
Vertical, in-line, four stroke |
|
Engine brand
|
/
|
Weichai
|
|
Engine cylinder number
|
/
|
6
|
|
Engine rated power
|
km
|
205.9
|
|
Engine rotate speed
|
r/min
|
2200
|
|
Steering
|
/
|
Hydraulic
|
|
Hydraulic output Group
|
/
|
3
|
|
Number of splines of PTO
|
/
|
8
|
|
PTO rotate speed
|
r/min
|
760/1000
|
Using 16+16 shift, the slowest speed is 6m/min,and the speed of each gear is matched reasonably to meet the needs of various operations.
Standard 540/760/1000 three-speed power output,matching more agricultural machinery.
The bearings and oil seals of key parts are imported with original packaging,which has better quality and longer life.
The rear-mounted dual-cylinder steering front axle provides uniform left and right
force,large steering angle,small turning radius,and flexible steering.
force,large steering angle,small turning radius,and flexible steering.
detailed images
customer feedback
Assembly Process
Assembly Process: Professional factory, advanced production equipment. The management system is perfect, the source process is firmly grasped, and the product quality is controlled. Strict quality control process: laser blanking-stamping-processing-electrophoresis-coating-assembly.
Packing photo
LCL is available. Optional CKD&SKD Package/ Full containers
Main application
Customer site application:
It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy fields, dry land, arid land, orchard and plastic greenhouse.
It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy fields, dry land, arid land, orchard and plastic greenhouse.
Company information
Shandong Tavol Agricultural Machinery Co., Ltd
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
Tavol Group is a High-tech Groups Companies, Which Engage in High-end Agricultural Equipment Manufacturing, Construction Machinery and High-precision Monitoring Sensors. Tavol Group is Located at the Foot of the World-famous Mountain Taishan. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid International Trademark, High-tech Enterprise Certification and Special Equipment Manufacturing License etc.
CE
Angola CNCA
Madrid Trademark
Contact Us
If you are interested in the tractors, please no hesitate to contact us
Contact: Anna
Email: Anna.zhang@tavolgroup.com
Email: Anna.zhang@tavolgroup.com
Tel: +86 18846764069
Address:Changcheng Road, Taian City, Shandong,China
Address:Changcheng Road, Taian City, Shandong,China
