swing gates auto swing gate opener swing automatic door operator 350KG RS-G02 RISESAT

swing gates auto swing gate opener swing automatic door operator 350KG RS-G02 RISESAT

FOB Reference Price: Get Latest Price

≥2 Sets

US $129

≥100 Sets

US $125

≥1000 Sets

US $119

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Villa

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-G02

Name:: Electric swing gate opener

Power supply:: 110V AC - 240V AC

Output Power:: 24V DC 60W

stroke:: 300mm / 400mm

speed:: 2.4cm/s

Max. gate section width:: 2.5m/3.5m

Noise:: <=56dB

Max. single gate weight:: 300kg/350kg

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Project Solution Capability:: Others

Application:: Villa

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-G02

Name:: Electric swing gate opener

Power supply:: 110V AC - 240V AC

Output Power:: 24V DC 60W

stroke:: 300mm / 400mm

speed:: 2.4cm/s

Max. gate section width:: 2.5m/3.5m

Noise:: <=56dB

Max. single gate weight:: 300kg/350kg

Product Description

Advantage of our swing gate operator:
1.Control panel can connect flashing light, photocell, back up battery, solar system, keypad and so on.
2.Controlling single or dluble-leaf motor is optional.
3.Can adjust open and close door time.
4.24VDC back-up battery can be input. (this is use large controller,our standard controller is small size.)
5.High speed operate can be adjustment.
6.Set extra remote control is easily.

7:Work with wifi device to operated the gate on Mobile Phone App.

Product Paramenters

FEATURES
* swing gate opener Specification
* Driving Method: Screw Driven Piston Type
* Operating Voltage: DC 24V
* Operate the single gate width up to 3.5M
* Operate the single gate weight up to 350KG
* Waterproof IP55 design
* Adjustable Force
* Adjustable time-delay
* Manual Release
* Microprocessor based control panel
* Working time protection
* Available to connect photocell, loop detector, card reader,backup battery etc.

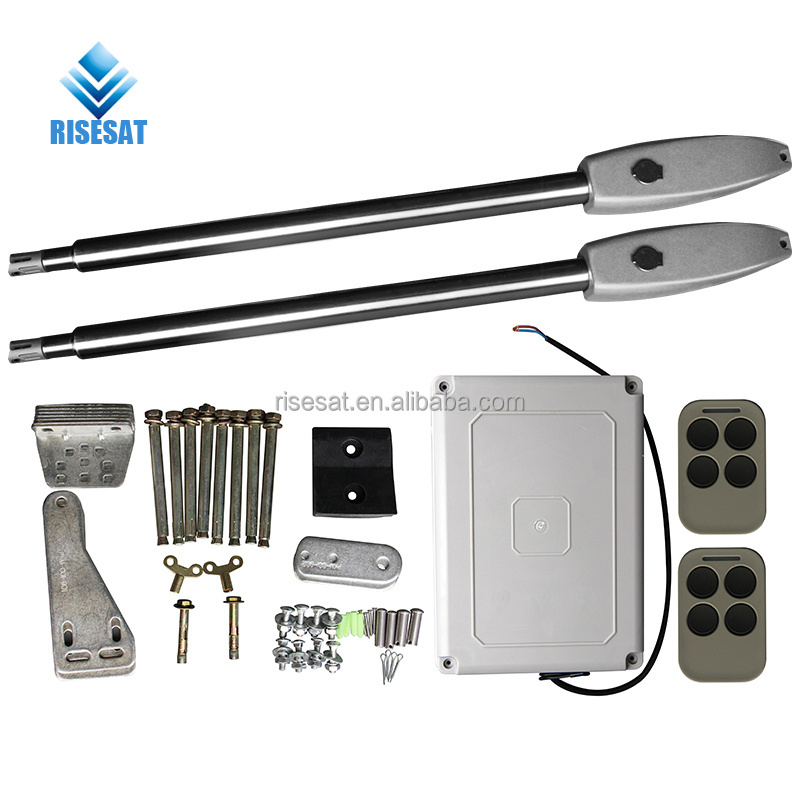

Product packaging

Gate opener Accessories	RS-G02
Heavy duty motor that are pre-wired with motor cables	2pcs
Override spanners	2pcs
Remote controls	2pcs
Control panel	1pc
Post mounting bracket	2pcs
Gate mounting bracket	2pcs
Rubber Gate Stop	1pc
Instruction manual	1pc
