Quick Details
-
Brand Name:
-
TIEDI
-
Model Number:
-
TD-AN1001
-
Product name:
-
Anti Climb Fence
-
Material:
-
Low Carbon Steel Wire
-
Panel Height:
-
2m-5.2m
-
Panel Width:
-
2.5m,Customized Size
-
Mesh Size:
-
12.7mmX76.2mm(1/2''X3'')
-
Wire diameter:
-
3mm,4mm,5mm
-
Surface treatment:
-
Hot dip galvanized ,Powder coated
-
Color:
-
Green,Black,Silvery,Grey,Blue,Yellow,Red,Customized Color
-
Application:
-
Fence,Railway, A irport, Seaport,Prison
-
Keywords:
-
Wire Mesh Fence
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, Rodent Proof, Rot Proof, TFT, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TIEDI
-
Model Number:
-
TD-AN1001
-
Product name:
-
Anti Climb Fence
-
Material:
-
Low Carbon Steel Wire
-
Panel Height:
-
2m-5.2m
-
Panel Width:
-
2.5m,Customized Size
-
Mesh Size:
-
12.7mmX76.2mm(1/2''X3'')
-
Wire diameter:
-
3mm,4mm,5mm
-
Surface treatment:
-
Hot dip galvanized ,Powder coated
-
Color:
-
Green,Black,Silvery,Grey,Blue,Yellow,Red,Customized Color
-
Application:
-
Fence,Railway, A irport, Seaport,Prison
-
Keywords:
-
Wire Mesh Fence

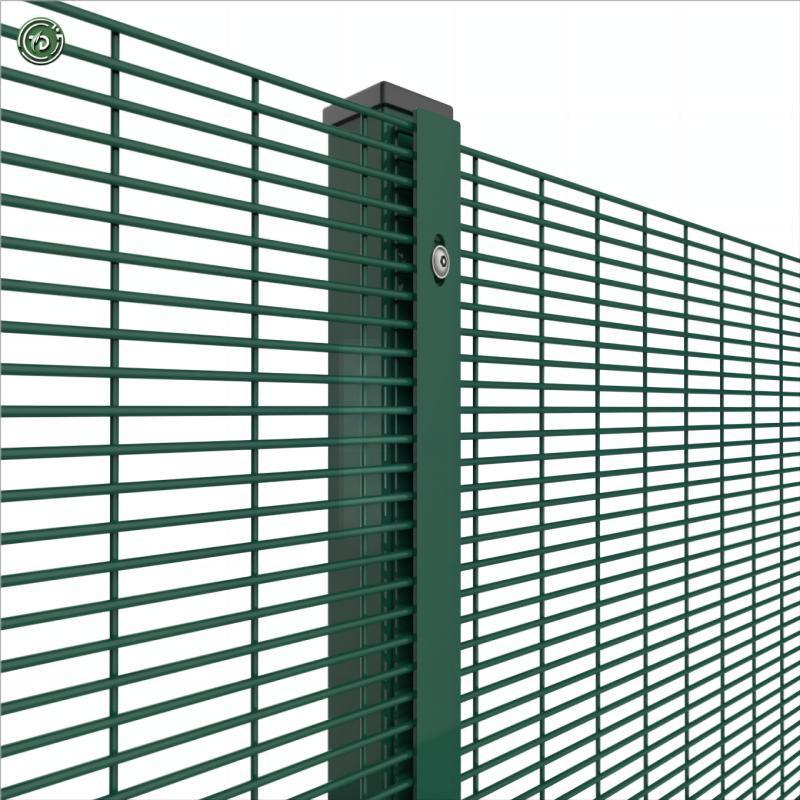

Anti Climb Fence
/
358 Security Fence
358 Anti climb fence is a kind of high strength and high security fence,also called 358 security fence.Fence made from a type of strong welded mesh panel with small mesh opening.The fence name 358 comes from its panel mesh opening 3"×0.5" and 8 gauge wire,
which equates to 76.2mm × 12.7mm × 4mm mesh opening
.It is suitable for anywhere requiring anti-climbed and anti-cut.
|
Material
|
carbon steel wire
|
|
|
|
|||
|
Wire diameter(mm)
|
3.0/3.5/4.0mm
|
|
|
|
|||
|
Mesh opening
|
3'"x0.5" (76.2mmx12.7mm)
|
|
|
|
|||
|
Panel width(m)
|
2m/2.5m/3m
|
|
|
|
|||
|
Panel height(m)
|
2m/2.4m/3m/3.3m
|
|
|
|
|||
|
Post type(mm)
|
60x60mm,80x80mm,100x100mm,120x120mm
|
|
|
|
|||
|
Color
|
RAL 6005 Green, RAL 9005 Black, RAL7016 Gray, Other RAL color can be customized.
|
|
|
|
|||
|
Surface treatment
|
hot dipped galvanized, PVC coated after galvanized or powder coated after galvanized.
|
|
|
|
|||
High Security Fence Features
1.Anti-climbing: more small openings, no toe or finger holds.
2.Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
3.Durable: covering galvanized and powder coating ensure a long service life.
4.Firm welded joints: The welded joints are firmly fixed and will not be cracked by man-made natural forces.
4.
Corrosion resistance, rust resistance
5.
Easy to install and maintain.
Hot Dipped Galvanized Anti Climb Fence
Through the hot dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life.
Powder Coated Or PVC Coated
Anti Climb Fence
We choose high quality powder for spraying,after heating combines with the galvanized layer on the steel surface to form a more effective protective layer. It can better prevent the steel from anti-corrosion, anti-rust.
Product Show
Tiedi Metal offers many different patterns and styles of Security Fence.If you want to know more information,please see the product description
below
.
Product Specifications
|
358 Anti Climb Fence Specification
|
|
|
|
|
||||
|
Fence height (m)
|
Panel size (Height×Width)
(mm)
|
Fence Post
(Height×Size×Thick)
(mm)
|
Clamp Bar
(Height×Width×Thick) (mm) |
Middle Or Corner
Clamp No. (pcs)
|
||||
|
2
|
2000x2515
|
2700x60x60x2.5
|
2000x60x5
|
7 or 14
|
||||
|
2.4
|
2400x2515
|
3100x60x60x2.5
|
2400x60x5
|
9 or 18
|
||||
|
3
|
3000x2515
|
3800x80x80x2.5
|
3000x80x6
|
11 or 22
|
||||
|
3.3
|
3300x2515
|
4200x80x80x2.5
|
3300x80x6
|
12 or 24
|
||||
|
3.6
|
3600x2515
|
4500x100x100x3
|
3600x100x7
|
13 or 26
|
||||
|
4.2
|
4200x2515
|
5200x100x100x4
|
4200x100x8
|
15 or 30
|
||||
|
4.5
|
4500x2515
|
5500x100x100x5
|
4500x100x8
|
16 or 32
|
||||
|
5.2
|
5200x2515
|
6200x120x120x5
|
5200x100x8
|
18 or 36
|
||||
|
Note
|
The panels are made of high grade steel in height 2m to 3m,several panels can be installed on top of each other. Thus may be achieved a total height which you need.
|
|
|
|
||||
|
|
|
|
||||||
Fence Post
|
Material
|
high grade steel
|
|
|
|
|||
|
Post size
|
60×60mm, 80×80mm, 100×100mm or 120×120mm
|
|
|
|
|||
|
Post thickness
|
2.5/3.0/4.0/5.0 mm
|
|
|
|
|||
|
Surface treatment
|
inside and outside galvanized,powder coated
|
|
|
|
|||
|
Colors
|
RAL6005Green, RAL9005 Black,RAL7016 Gray
|
|
|
|
|||
|
Post cap
|
metal caps or plastic cap (size and type according to the post)
|
|
|
|
|||
Connection Method
2D Anti Climb Fence
3D Anti Climb Fence
Clamp flat bar
Spider clip
Installation Instructions
1. Before installation, the construction department should be familiar with the location of the various pipes buried in the
underground to prevent the underground facilities from damaging.
2. During the construction, the burial of the posts should be carried out in stages. Firstly buried end posts, and then buried
the middle post.
3. If you want to put the posts into concrete, firstly you should drill holes on concrete surface, and then put the posts into
it, finally pour the liquid concrete into the hole. During this time, remember to set up temporary cable or support to hold
the posts in suitable place until the concrete is hardened.
4. The posts buried in the ground for a minimum of 0.5 m and a maximum of 1.2 m.
Applications
High security fence is widely used
prisons,airports,
railway station, government buildings,
industrial and commercial properties,warehouses, power plants, laboratories, schools, parks,leisure and recreational areas.
Packing&Shipping
Package
1.Panel:wrapped with plastic film in carton box and then put on metal/wooden pallet.
2.Post:wrapped with plastic strip and in bulk or on metal/wooden pallet.
3.Accessories:placed in carton box.
2.Post:wrapped with plastic strip and in bulk or on metal/wooden pallet.
3.Accessories:placed in carton box.
Shipping
We will look for a professional transportation agent to deliver the products, so we are capable of delivery products to
most ports all over the world.
