Quick Details
-
Brand Name:
-
RUIZHOU
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
2560mmX 2100mm X 1130mm
-
Weight:
-
420 KG
-
Features:
-
knife cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Effective working area:
-
1800mm*1300mm
-
Cutting speed:
-
0-1200mm/s
-
Applicable Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knife:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen types:
-
Common signing pen, Oil pen, ball-point pen, Silver pen
-
Human Machine Interface (HMI):
-
Touch screen LCD
-
Machine resolution:
-
0.01mm
Quick Details
-
Voltage:
-
220V/380V
-
Application:
-
cloth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIZHOU
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
2560mmX 2100mm X 1130mm
-
Weight:
-
420 KG
-
Features:
-
knife cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Effective working area:
-
1800mm*1300mm
-
Cutting speed:
-
0-1200mm/s
-
Applicable Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knife:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen types:
-
Common signing pen, Oil pen, ball-point pen, Silver pen
-
Human Machine Interface (HMI):
-
Touch screen LCD
-
Machine resolution:
-
0.01mm

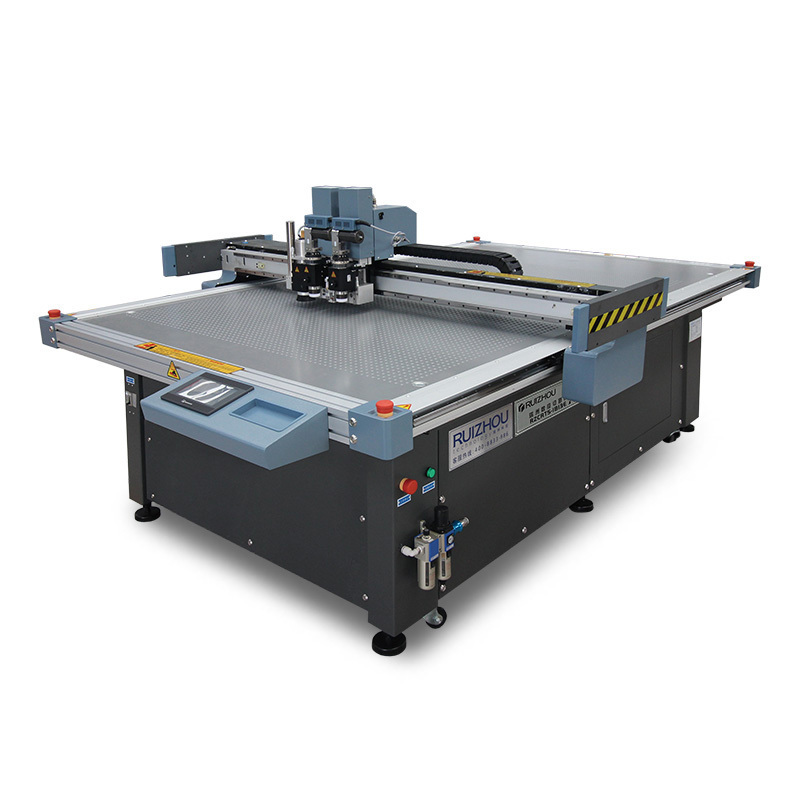

Small type cnc oscillating blades cutting machine Haute Couture suit cutting machine for fabric
Product introduction of CNC cutting machine RZCRT5-1813E
Brand: RUIZHOU
Model: RZCRT5-1813E CNC cutting machines
Application fields: cloth, bag, footwear, construction, packing&advertising industries, etc.
Cutting materials: textile, fabric, cloth, cardboard, corrugated paper, Grey board, Honeycomb board, chipboard fiber board, Acrylic sheet, PU, Car mats, EVA, foam and other composites materials.
Equipments: multi-functional combined cutting tools(oscillating blades, pen drawing), CCD positioning system, projectors, etc
Features: easy for users to control, high cutting accurate, suitable for sample cutting, etc
Parameter of RZCRT5-1813E CNC cutting machine
| Model of cutting machine | RZC RT5-1813E |
| Effective working area | 18 00mm× 13 00mm |
| Cutting speed | 0-1200 mm/s |
| Cutting thickness | 0-25 mm ( customized cutting machine can up to 50mm) |
| Method of fixing material | Divisional vacuum absorption |
| Knife | Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
| Pen type | Common signing pen, Oil pen, ball-point pen, Silver pen |
| Human Machine Interface (HMI) | Touch screen LCD |
| Machine resolution | 0.01mm |
| Software resolution | 0.025mm |
| Interface of transmission | Network port |
| Gearing | Linear guide and gear rack |
| Motor | servo motor |
| Machine voltage | 220V |
| Energy saving device | Frequency converter |
| Safety device | Automatic laser device |
| Software system | Independent research and development CNC software |
| Control system | Cutting table and computer display |
Tools and its Functions of RZCRT5-1813E CNC cutting machine
Fabric Cutting samples
Six advantages of our cnc cutting machine
Our clients
Application
Packaging of CNC cutting machine
