Quick Details
-
Center Height (mm):
-
95 mm
-
Max.Transformer Capacity(kVA):
-
0.2 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minder
-
Weight (KG):
-
145
-
Spindle number:
-
1-axis
-
Controller:
-
SCM
-
Maximum speed:
-
700RPM
-
Spindle motor:
-
750W AC motor
-
Winding motor:
-
Stepper motor( servo motor can be optional)
-
Rotation pole:
-
Stepper motor + reducer
-
Tension system:
-
Magnetic tensioner
-
Applicable wire diameter:
-
0.5mm-1.8mm
-
Machine weight:
-
145kg
Quick Details
-
Max. Load (KG):
-
100 KG
-
Marketing Type:
-
New Product 2022
-
Length of Axis (mm):
-
100 mm
-
Center Height (mm):
-
95 mm
-
Max.Transformer Capacity(kVA):
-
0.2 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minder
-
Weight (KG):
-
145
-
Spindle number:
-
1-axis
-
Controller:
-
SCM
-
Maximum speed:
-
700RPM
-
Spindle motor:
-
750W AC motor
-
Winding motor:
-
Stepper motor( servo motor can be optional)
-
Rotation pole:
-
Stepper motor + reducer
-
Tension system:
-
Magnetic tensioner
-
Applicable wire diameter:
-
0.5mm-1.8mm
-
Machine weight:
-
145kg
Product description

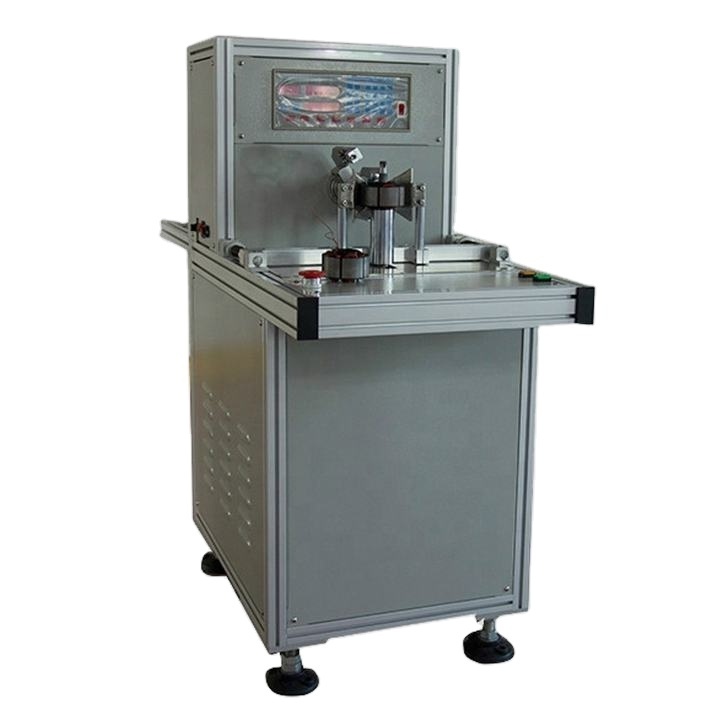

1, This machine is mainly for the winding of simple products of motor stator coils.
2, The controller has automatic functions such as winding , winding displacement, rotation pole, tap, trimming, clamping and so on. Most of these features are mostly optional.
3, Adopt Taiwan controller with inverter and AC motor to achieve low noise and maintenance free.
4, Multi-function microcomputer design, easy data setting, permanent storage, automatic speed limit, deceleration at both ends and other functions.
5, Users can change the program as needed to achieve multi-function.
6, The power circuit adopts an improved anti-interference circuit with strong anti-interference ability.
Application
Mainly for the production of coils such as cooling fans, DC brushless motors, toy motors, magnet motor and micro-motor stators.
Technical Parameters
|
model |
MD-RXJ 701A |
|
Spindle number |
1 |
|
Controller |
SCM |
|
Maximum s peed |
700 RPM |
|
Spindle motor |
75 0W AC motor |
|
Winding motor |
Stepper motor( servo motor can be optional) |
|
Rotation pole |
Stepper motor + reducer |
|
Tension system |
Magnetic tensioner |
|
Applicable wire diameter |
0. 5 mm- 1 .8mm |
|
Power supply |
220V |
|
Machine weight |
145kg |
|
Dimension |
1 35 0 mm * 50 0 mm *1 1 00mm |
If you need more further details about our machines, please feel free to contact us .
