Quick Details
-
Width:
-
100-2000mm
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TJGH
-
Model Number:
-
3003
-
Name:
-
3003 aluminum perforated metal sheet
-
Other material:
-
1050 1060 1100 3003 5052 6061 etc
-
Hole type:
-
round,square,hexagonal or as request design
-
Length:
-
can be small coil
-
Surface:
-
can be anodized
-
pattern:
-
As per request
-
Surface protect:
-
plastic film covered
-
Quality:
-
can be assured
-
Inspection:
-
Any inspection can be accepted
-
Trade assurance:
-
can be accepted
Quick Details
-
Grade:
-
3000 Series
-
Tolerance:
-
±1%
-
Application:
-
curtain wall panel
-
Width:
-
100-2000mm
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TJGH
-
Model Number:
-
3003
-
Name:
-
3003 aluminum perforated metal sheet
-
Other material:
-
1050 1060 1100 3003 5052 6061 etc
-
Hole type:
-
round,square,hexagonal or as request design
-
Length:
-
can be small coil
-
Surface:
-
can be anodized
-
pattern:
-
As per request
-
Surface protect:
-
plastic film covered
-
Quality:
-
can be assured
-
Inspection:
-
Any inspection can be accepted
-
Trade assurance:
-
can be accepted

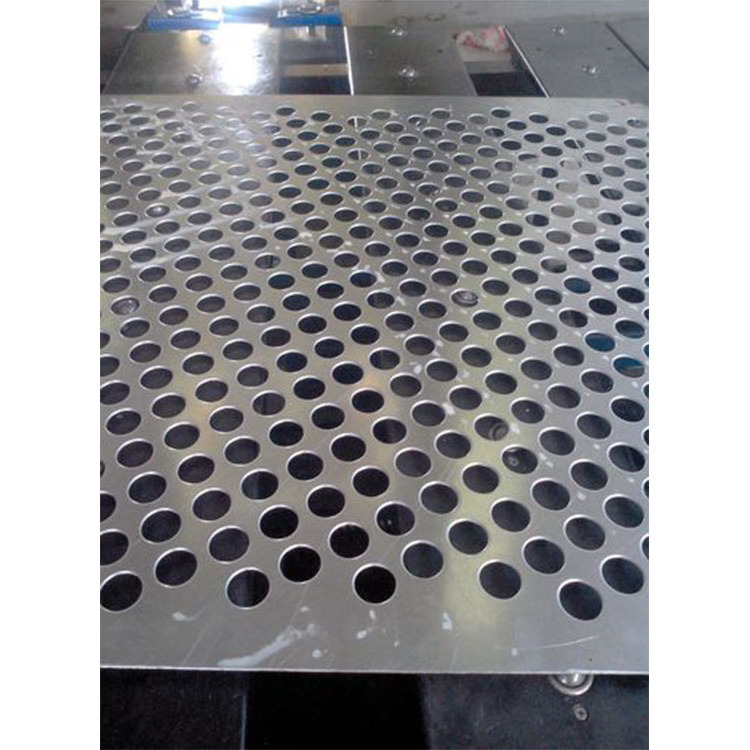

Perforated aluminum sheet is produced by punching, notching, rolling, leveling, bending, slitting, forming, stamping etc, also named perforated aluminum mesh, or expanded aluminum mesh, It can be supplied in coils or flat sheets.
Surface treatment: mill finish, or colored anodized, powder coated, polished,etc.
|
Cold Rolled Aluminum Sheet
|
|
|
|
|
|
|||||
|
Alloy series
|
Typical alloy
|
Typical Temper
|
Specification ( mm )
|
Specification ( mm )
|
|
|||||
|
1xxx
|
1050 1100
|
O
|
Thickness
|
Width
|
Length
|
|||||
|
3xxx
|
3003
|
H12/22/32
|
0.20-3.5
|
1000-2650
|
2000-3000
|
|||||
|
|
3004
|
H14/24/34
|
|
|
|
|||||
|
5xxx
|
5052 5083
|
H16/26/36
|
|
|
|
|||||
|
5xxx
|
5182 5754
|
H18/28/38
|
|
|
|
|||||
|
2xxx
|
2024
|
O T4 T6
|
0.30-3.5
|
1100-2650
|
2000-3000
|
|||||
|
6xxx
|
6061 6082
|
|
|
|
|
|||||
|
7xxx
|
7075 7050
|
|
|
|
|
|||||
|
Hot Rolled Aluminum Plate
|
|
|
|
|
|
|||||
|
Alloy series
|
Typical alloy
|
Typical Temper
|
Size ( mm )
|
|
|
|||||
|
|
|
|
Thickness
|
Width
|
Length
|
|||||
|
1xxx
|
1100、3003、5052、5083、5A06
|
F/O/H112
|
15-260
|
1000-3800
|
2000-38000
|
|||||
|
3xxx
|
|
|
|
|
2000-38000
|
|||||
|
5xxx
|
|
|
|
|
|
|||||
|
2xxx
|
2024、 6061、7020、7075
|
F/O/H112
|
12-260
|
1000-3800
|
2000-38000
|
|||||
|
6xxx
|
|
|
|
|
|
|||||
|
7xxx
|
|
|
|
|
|
|||||
|
Hole size (diameter)
|
Hole center
|
Hole type
|
Open area
|
Hole size (diameter)
|
Hole center
|
Hole type
|
Open
area |
|
0.02"
|
0.043"
|
45° staggered
|
20%
|
5/32"
|
3/16"
|
60° staggered
|
63%
|
|
0.023"
|
0.042"
|
Straight
|
22%
|
5/32"
|
1/4"
|
60° staggered
|
34%
|
|
0.027"
|
0.05"
|
Straight
|
23%
|
3/16"
|
7/32"
|
60° staggered
|
67%
|
|
1/32"
|
1/6"
|
45° staggered
|
23%
|
3/16"
|
1/4"
|
60° staggered
|
50%
|
|
0.033"
|
0.055"
|
Straight
|
28%
|
3/16"
|
5/16"
|
60° staggered
|
32%
|
|
0.045"
|
0.066"
|
Straight
|
36%
|
3/16"
|
3/8"
|
60° staggered
|
23%
|
|
0.045"
|
5/64"
|
45° staggered
|
32%
|
3/16"
|
1/2"
|
Straight
|
10%
|
|
0.05"
|
0.083"
|
Straight
|
29%
|
1/4"
|
5/16"
|
60° staggered
|
58%
|
|
3/64"
|
3/32"
|
60° staggered
|
23%
|
1/4"
|
3/8"
|
60° staggered
|
42%
|
|
1/16"
|
3/32"
|
60° staggered
|
41%
|
1/4"
|
3/8"
|
Straight
|
34%
|
|
1/16"
|
7/64"
|
60° staggered
|
27%
|
1/4"
|
1/2"
|
60° staggered
|
23%
|
|
1/16"
|
1/8"
|
60° staggered
|
23%
|
1/4"
|
1/2"
|
Straight
|
20%
|
|
5/64"
|
1/8"
|
60° staggered
|
36%
|
5/16"
|
7/16"
|
60° staggered
|
46%
|
|
3/32"
|
5/32"
|
60° staggered
|
33%
|
3/8"
|
1/2"
|
60° staggered
|
52%
|
|
3/32"
|
3/16"
|
60° staggered
|
23%
|
3/8"
|
9/16"
|
60° staggered
|
40%
|
|
0.117"
|
5/32"
|
60° staggered
|
51%
|
3/4"
|
1"
|
60° staggered
|
51%
|
|
1/8"
|
3/16"
|
60° staggered
|
40%
|
1/2"
|
11/16"
|
60° staggered
|
49%
|
|
1/8"
|
7/32"
|
60° staggered
|
30%
|
5/8"
|
7/8"
|
60° staggered
|
46%
|
|
1/8"
|
1/4"
|
60° staggered
|
23%
|
1"
|
1-3/8"
|
60° staggered
|
48%
|
