- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XINYU
-
Voltage:
-
380V /50HZ
-
Dimension(L*W*H):
-
5120*2000*2800 mm
-
Weight (KG):
-
6200 kg
-
Product Name:
-
Concrete Block Making Machine
-
Cycle Time:
-
15-25s
-
rated pressure:
-
16 Mpa
-
Pallet Sizes:
-
880*680 mm
-
Total Weight:
-
6200kgs
-
Main Vibration Form:
-
Platform vibration
-
Certification:
-
ISO9001-2000/CE
Quick Details
-
Type:
-
Hollow Block Making Machine
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
7000-8600pcs/8 hours
-
Brick size:
-
400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XINYU
-
Voltage:
-
380V /50HZ
-
Dimension(L*W*H):
-
5120*2000*2800 mm
-
Weight (KG):
-
6200 kg
-
Product Name:
-
Concrete Block Making Machine
-
Cycle Time:
-
15-25s
-
rated pressure:
-
16 Mpa
-
Pallet Sizes:
-
880*680 mm
-
Total Weight:
-
6200kgs
-
Main Vibration Form:
-
Platform vibration
-
Certification:
-
ISO9001-2000/CE

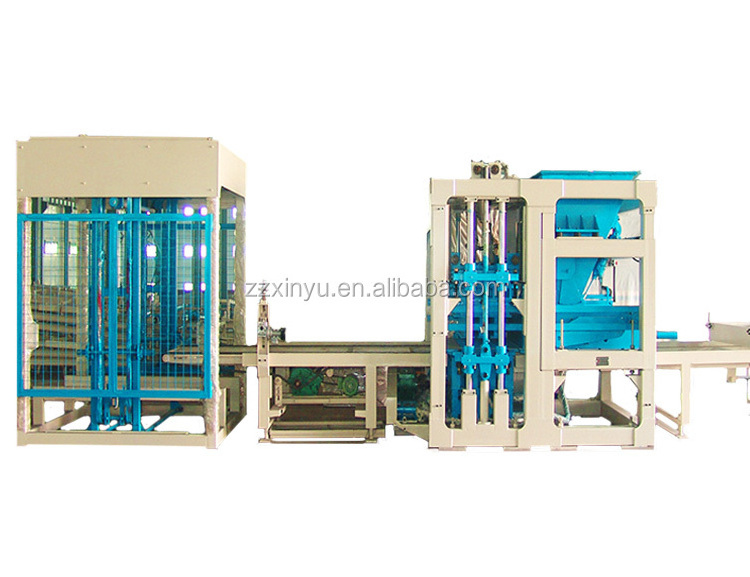

Simple Mechanical Product QT6-15 Cement Brick Making Machine Price in India
Product Description
The description of Hydraulic Block Making Machine
QT6-15 is a fully automatic block making machine developed by our company. It adopts hydraulic drive to
make the final bricks has strong density and strength . With PLC intelligent control Man-machine interface,
control system equipped with complete logic control, production program, malfunction diagnosis system
and remote control function. So it doesn’t need a professional person but only need a simple training to
the operator .
The parameters of Hydraulic Block Making Machine
|
Item |
QT6-15 |
|
Cycle Time |
15-25s |
|
Main Vibration Form |
Platform vibration |
|
V ibration F requency |
4500-5100 rolls /min |
|
Rated pressure |
1 6 Mpa |
|
Pallet Sizes |
880×680 mm |
|
Total Power |
26.25kw |
|
Dimension |
5120×2000×2800 m m |
|
Weight |
6200kgs |
The productivity of Hydraulic Block Making Machine
|
Item |
Sizes(mm) |
Cycle Time(s) |
Pcs/mold |
Pcs/h |
Pcs/d |
|
Hollow block |
390×190×190 |
20-25 |
6 |
864-1080 |
6912-8640 |
|
Porous block |
240×115×90 |
15-20 |
1 5 |
2700-3600 |
21600-28800 |
|
Solid brick |
240×115×53 |
15-17 |
30 |
6350-7200 |
50800-5760 |
The application of Hydraulic Block Making Machine
QT6-15 fully automatic block making machine is a multi-function machine, it can produce various bricks/
blocks including color-face bricks (layered material feeding), through body tiles, dock linkage blocks, road
curb bricks, solid bricks, hydraulic blocks, hollow blocks, perforated bricks, and standard bricks etc.
The advantages of Hydraulic Block Making Machine
1. QT 6 -15 block making machinery adopts hydraulic drive to products of high strength.
2.With PLC control system and Touch-operating Panel, Double Delta frequency converters, use less labor.
3.Adopting the advanced forced material-feeding & distributing device, More durable.
4.Using the sencondary material feeding device, there is one small Belt Conveyor installed above Distribution
box. It could preventing the cement materials from concreting.
5. By replacing molds, QT 6 -15 hydraulic block making machinery can produce different sizes of concrete
bricks.
The raw material of Hydraulic Block Making Machine
1.Best After-sales: We will send the Engineerento the site for installation, commissioning
and training work.
2.We will send the spare parts as soon as possible when necessary, equipment repair parts
provided by the seller are original, authentic, quality goods.
3. According to your inquiry, We will reply to you in 24 hours.Call us at any time if you have
problems about our product.
WARRANTY :12 MONTHS.Warranty period, in addition to the force majeure and man-made
factors, the damage caused by design, process and manufacturing equipment, the seller is
responsible for sending people to offer free repair.
