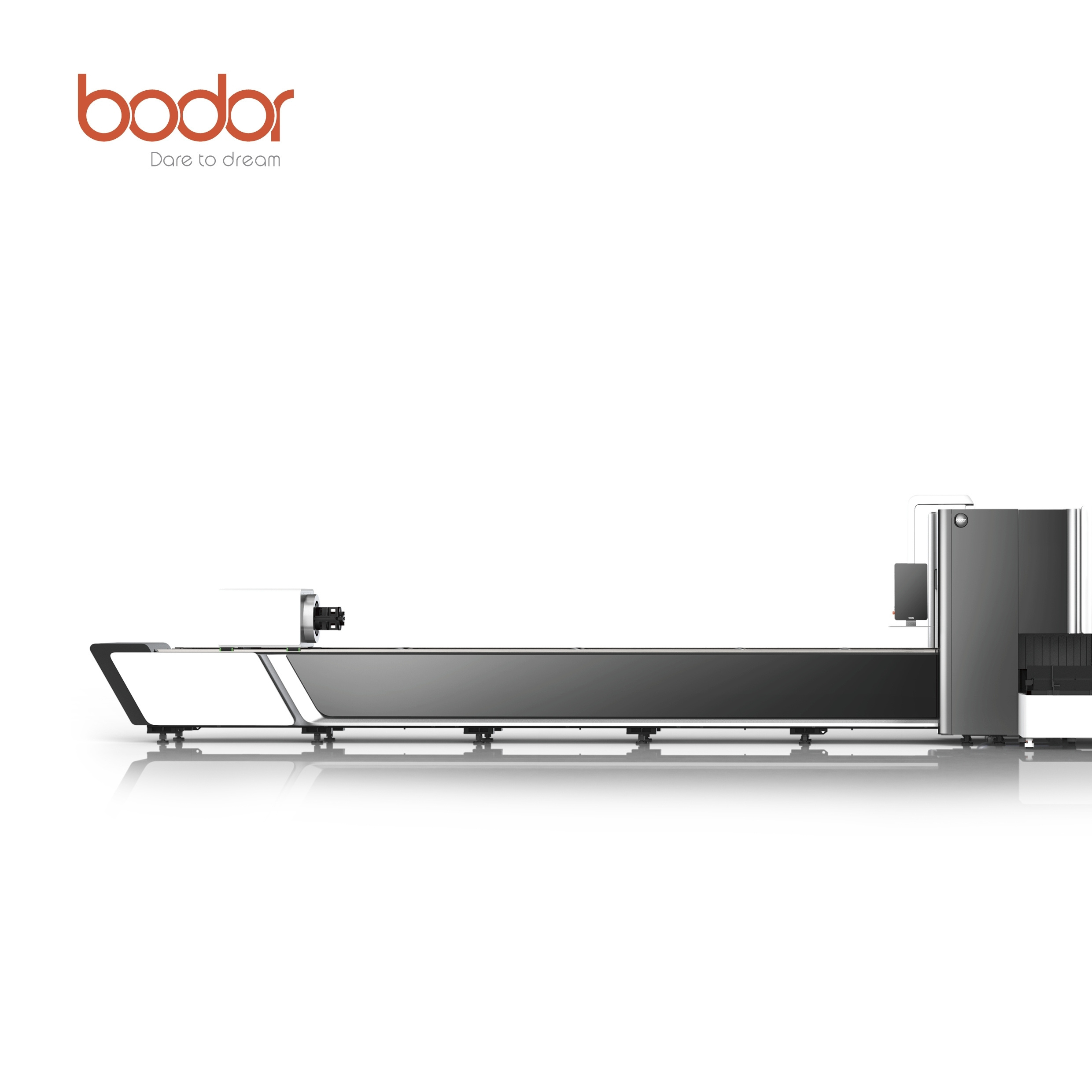

Bodor High-Performance T Series fiber pipe laser 1kw cutting machine or cutter T230

Bodor High-Performance T Series fiber pipe laser 1kw cutting machine or cutter T230

FOB Reference Price: Get Latest Price

≥1 Sets

US $125000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: Bodor

Cutting Area:: 6000mm

Cutting Thickness:: 0-30mm

Control Software:: Bodor

Place of Origin:: Shandong, China

Brand Name:: Bodor

Weight (KG):: 5400 KG

Core Components:: Laser Header, Laser Source, Control System

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Bodor fiber pipe laser 1kw cutting machine or cutter T230

Laser power:: 1000W/1500W/2000W/2500W/3000W/4000W/6000W/8000W

Cutting Diameter:: 20mm-200mm

Positoning Accuracy:: 0.05mm

Resposition Accuracy:: 0.04mm

Cutting length:: 6000mm

Laser resource:: Bodor

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: 35m/min

Cooling Mode:: WATER COOLING

Control System Brand:: Bodor

Cutting Area:: 6000mm

Cutting Thickness:: 0-30mm

Control Software:: Bodor

Place of Origin:: Shandong, China

Brand Name:: Bodor

Weight (KG):: 5400 KG

Core Components:: Laser Header, Laser Source, Control System

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Bodor fiber pipe laser 1kw cutting machine or cutter T230

Laser power:: 1000W/1500W/2000W/2500W/3000W/4000W/6000W/8000W

Cutting Diameter:: 20mm-200mm

Positoning Accuracy:: 0.05mm

Resposition Accuracy:: 0.04mm

Cutting length:: 6000mm

Laser resource:: Bodor

Marketing Campaign

5-year warranty offer

When purchasing a new Bodor laser
cutting machine, you can enjoy the exclusive 5-year warranty for our Bodor laser core parts (laser source BodorPower, laser head
BodorGenius, control system BodorThinker).

Safeguarding your metal cutting success

A reliable and valuable warranty gives your metal cutting process and business a promise of long-term succes. That's why we want
to help you protect your investment and ensure your productivity by extending the warranty for you.

Product Overview

All-round fiber laser metal tube cutting machine

Multiple function options help the laser tube cutting machine be used in numerous tube cutting processes.

Model	T2	T3
Effective Tube Cutting Length	6500mm/9200mm	6500mm/9200mm
Laser Output Power	6000w/3000w/1500w
Effective Round Tube Cutting Diameter	Φ8-230mm	Φ20-350mm
Effective Square Tube Cutting Diameter	□88-□230230mm	□2020-□350350mm
Rectangular tube Edge Length	8-230mm	20-350mm
X/Y-axis positioning accuracy	0.05mm
X/Y-axis repositioning accuracy	0.03mm
X axis maximum speed	140m/min	100m/min
Y axis maximum speed	100m/min	90m/min

Penumatic Chuck

Cutting machine clamping becomes convenient, easy and fast, with 3 seconds at the soonest to clamp and high repeat precision

Angle Steel and Channel Steel Cutting

Angle steel and channel steel cutting are standard with no need fior additional installation.

Four-side Edge Searching, Higher Precision

Optimized edge searching method and algorithm guarantee higher cutting precision and better steadiness of the laser cutter.

BodorThinker

BodorThinker is a high-end intelligent control system for a CNC laser cutter, featuring reliable stability, convenient
installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.

Remote Control

A mango shape and convenient magnetic securing help you control with just one hand

PRODUCT SPECIFICATIONS

PRODUCT CONFIGURATION

Six-in-one laser technology full ecology

Fully self-devloped BodorThinker control system, BodorNest nesting software, BodorGenius laser head and BodorPower laser source matched with MES system and Bodordrive drive system, enabling stable operation of the machine, with premium quaility cuts and incredible working efficiency.

SALES AND SERVICE NETWORK

Cutting Samples

Applicable to cutting carbon steel, stainless steel, aluminum, copper, alloy metals, etc.

Company Introduction

International Brand, European Quality, Intelligent Manufacturing in China

Title goes here.

Founded in 2008, Bodor Inc. is an international intelligent and automated laser cutting and welding solution provider for automobiles, aviation, medical care, electronics, metal processing, and various industries. With more than 2,000 employees worldwide, including 300+ dedicated to R&D, its service scope spans over 180 countries and regions. The global service centers and engineers provide customers with 24/7 timely support, maintaining long-term and stable partnerships with a variety of manufacturing enterprises. Bodor has launched more than 100 laser products covering the power range from 1.5kW to 60kW, including sheets, tubes, coils, sheet-and-tube integrated laser cutting machines, laser welders, and automation devices.
Bodor offers flagship machines with ultra-high configuration, speed, and precision, high-performance machines that lead the development of the industry, and economical machines with high quality, high performance, high security, and great experience.
From 2019 to 2022, Bodor has been leading the global sales volume of laser cutting machines for four consecutive years.
Maintaining a reputable partner, Bodor also provides laser solutions to numerous international events.

Super Factory, International Quality

The white floor & the largest monomer laser cutting equipment production workshop in the world (30,000 square meters); Production
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
