Quick Details
-
Warranty:
-
1 Years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUYI
-
Model Number:
-
KXT--DN25-DN200
-
Product name:
-
EPDM Rubber Compensator Expansion Joint
-
Size:
-
DN25-DN200
-
Rubber Material:
-
NR,NBR,EPDM
-
Flange Material:
-
Carbon Steel,Stainless Steel
-
Technology:
-
Forged, Casting, Vulcanization
-
Working Pressure:
-
PN16
-
Working Temperature:
-
-15~+80 ℃ (special:-30~+150℃ )
-
Medium:
-
Water
-
Standard:
-
DIN
-
Application:
-
Pipe Lines Connect
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Reducing
-
Head Code:
-
Round
-
Warranty:
-
1 Years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUYI
-
Model Number:
-
KXT--DN25-DN200
-
Product name:
-
EPDM Rubber Compensator Expansion Joint
-
Size:
-
DN25-DN200
-
Rubber Material:
-
NR,NBR,EPDM
-
Flange Material:
-
Carbon Steel,Stainless Steel
-
Technology:
-
Forged, Casting, Vulcanization
-
Working Pressure:
-
PN16
-
Working Temperature:
-
-15~+80 ℃ (special:-30~+150℃ )
-
Medium:
-
Water
-
Standard:
-
DIN
-
Application:
-
Pipe Lines Connect

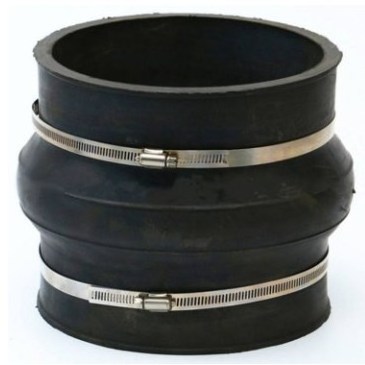

Flexible Rubber expansion Joint
The flexible rubber expansion joint is composed of inner and outer rubber layer, nylon cord fabric and steel ring, which is vulcanized and then combined with metal flange or parallel joint loose sleeve. The product can reduce vibration and noise, and can
compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems. Rubber soft joints, also known as flexible single-ball rubber joints, rubber flexible joints, soft joints, shock absorbers, pipe shock absorbers, shock absorber throats, etc., is a high Flexible, highly airtight, medium resistant and weatherproof pipe joints.
compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems. Rubber soft joints, also known as flexible single-ball rubber joints, rubber flexible joints, soft joints, shock absorbers, pipe shock absorbers, shock absorber throats, etc., is a high Flexible, highly airtight, medium resistant and weatherproof pipe joints.
|
Nominal diameter
|
|
Length
|
Axial displacement mm
|
|
Lateral drift
mm |
Angle of deflection
（a1+a2）° |
||
|
mm
|
Inch
|
|
extension
|
compress
|
|
|
||
|
32
|
1¼
|
95
|
6
|
9
|
9
|
15
|
||
|
40
|
1½
|
95
|
6
|
10
|
9
|
15
|
||
|
50
|
2
|
105
|
7
|
10
|
10
|
15
|
||
|
65
|
2½
|
115
|
7
|
13
|
11
|
15
|
||
|
80
|
3
|
135
|
8
|
15
|
12
|
15
|
||
|
100
|
4
|
150
|
10
|
19
|
13
|
15
|
||
|
125
|
5
|
165
|
12
|
19
|
13
|
15
|
||
|
150
|
6
|
180
|
12
|
20
|
14
|
15
|
||
|
200
|
8
|
210
|
16
|
25
|
22
|
15
|
||
|
250
|
10
|
230
|
16
|
25
|
22
|
15
|
||
|
300
|
12
|
245
|
16
|
25
|
22
|
15
|
||
|
350
|
14
|
255
|
16
|
25
|
22
|
15
|
||
|
400
|
16
|
255
|
16
|
25
|
22
|
15
|
||
|
450
|
18
|
255
|
16
|
25
|
22
|
15
|
||
|
500
|
20
|
255
|
6
|
25
|
22
|
15
|
||
|
600
|
24
|
260
|
6
|
25
|
22
|
15
|
||
|
700
|
28
|
260
|
16
|
25
|
22
|
15
|
||
|
800
|
32
|
260
|
16
|
25
|
22
|
15
|
||
Note for installing rubber shockproof joints:
1. Rubber joints should be installed according to the natural length of the product, and
installation beyond the displacement limit is strictly prohibited.
2. The pipeline must be supported by a fixed bracket or bracket, and both ends of the
rubber joint must have a fixed bracket. The closer the bracket and the rubber joint are, the better.
3. The force of the pipe fixing bracket must be greater than the axial force, and the
joint must not bear the weight and axial force of the pipe itself.
4. Please install within the allowable value range of the product. Exceeding the range
of displacement and deflection will cause the rubber joint to leak or pull off.
5. The bolts should be tightened gradually at the corners. Excessive tightening will damage the sealing surface.
installation beyond the displacement limit is strictly prohibited.
2. The pipeline must be supported by a fixed bracket or bracket, and both ends of the
rubber joint must have a fixed bracket. The closer the bracket and the rubber joint are, the better.
3. The force of the pipe fixing bracket must be greater than the axial force, and the
joint must not bear the weight and axial force of the pipe itself.
4. Please install within the allowable value range of the product. Exceeding the range
of displacement and deflection will cause the rubber joint to leak or pull off.
5. The bolts should be tightened gradually at the corners. Excessive tightening will damage the sealing surface.
Henan Yuyi Industry Co, Ltd is a professional factory on Rubber Joint and Shock Absorbers development, production, sales and customized design with more than 15years experience, which is located at Economic Development Zone Xicun Village, Gongyi Zhengzhou City, Henan Province, China.
We are specialized in manufacturing Rubber/Metal Expansion Joint, Metal Braided Hose, Metal Bellows, Spring Mountain Shock Absorber and other pipe products. With fully automatic production line, high-tech equipment, highly qualified engineer and personnel. Which are capable to provide the best top-quality in the international market as Australia, USA, Europe, Middle-east and Southeast Asia.
"Solidarity, Development'' as our principle, "Surviving by Quality, Developing by Honesty'' as our tenet. We sincerely look forward to building long-term good business relation with you and warmly welcome to join us.
FAQ
1. Where is your factory?
Henan Yuyi Industry Co., Ltd. based in Henan, China, start from 2016,We supply many different standards professional products for more than 60 countries and areas in the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We had many professional inspections and certificates. We had passed inspections of CE, NSF, SGS, and get the certificates of ISO 9001, ISO 14001, OHSAS 18001, and WRAS, and so on.
3.Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
4.what can you buy from us?
Rubber Expansion Joint,Metal Expansion Joint,Metal Braided hose,Bellow Expansion Joint,Spring Mount Vibration Isolater and so on.
5. why should you buy from us not from other suppliers?
We are specialized in manufacturing Rubber/Metal Expansion Joint, Metal Braided Hose, Metal Bellows, Spring Mountain Shock Absorber and other pipe products. With fully automatic production line, high-tech equipment, highly qualified engineer and personnel.
6.Do you provide samples? Is it free or charged?
Yes, we can offer sample free but shipping charges covered by customer.
7.Is quality warranty supported？
Free warranty for 3 years, support third-party testing
8. what services can we provide?
Accepted Delivery Terms: FOB,CIF,FCA,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
