Quick Details
-
Size:
-
155*55*160cm
-
Power:
-
1.8KW
-
Weight (KG):
-
275 kg
-
Function:
-
Water Purification Plant
-
Technology:
-
Reverse Osmosis
-
Control:
-
Auto Control,manual
-
Applicable Water Source:
-
Urban tap water, groundwater, rainwater, river water, lake water.
-
Influent Quality:
-
TDS <500,1000,3000/5000-1500ppm, water temperature 5<25°C
-
Working Voltage:
-
AC380V/50Hz or AC220V/50HZ 3P
-
Working Pressure:
-
Pre processing 0.2-0.4Mpa,RO host 0.7-1.8Mpa
-
Water Yield:
-
0.25T-100T
-
Desalination Rate:
-
95-99.6%
-
Rate Of Recovery:
-
50-70%
Quick Details
-
Core Components:
-
other
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
275KG
-
Size:
-
155*55*160cm
-
Power:
-
1.8KW
-
Weight (KG):
-
275 kg
-
Function:
-
Water Purification Plant
-
Technology:
-
Reverse Osmosis
-
Control:
-
Auto Control,manual
-
Applicable Water Source:
-
Urban tap water, groundwater, rainwater, river water, lake water.
-
Influent Quality:
-
TDS <500,1000,3000/5000-1500ppm, water temperature 5<25°C
-
Working Voltage:
-
AC380V/50Hz or AC220V/50HZ 3P
-
Working Pressure:
-
Pre processing 0.2-0.4Mpa,RO host 0.7-1.8Mpa
-
Water Yield:
-
0.25T-100T
-
Desalination Rate:
-
95-99.6%
-
Rate Of Recovery:
-
50-70%

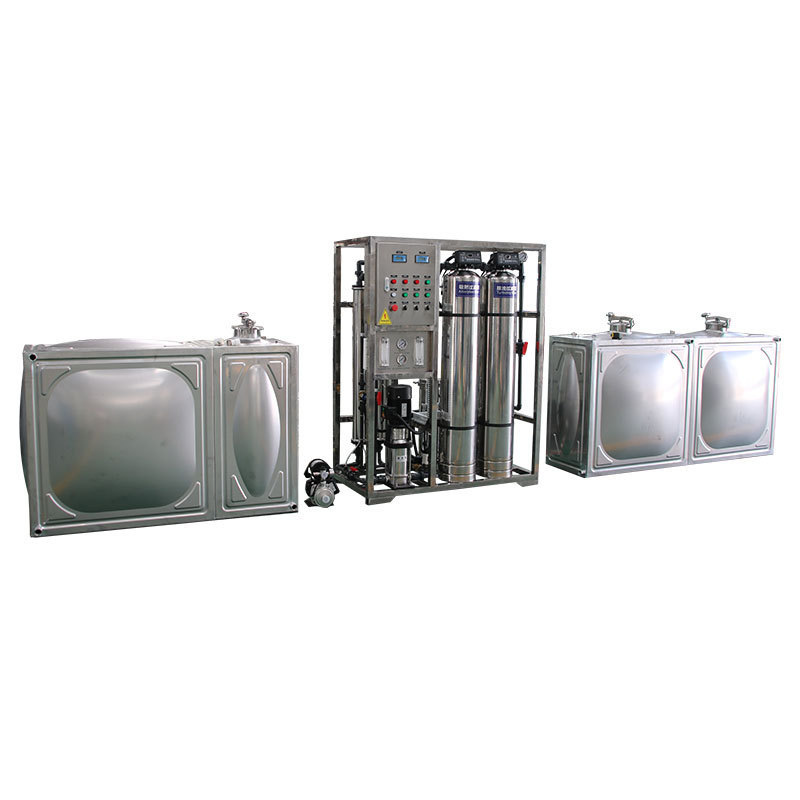

Single Stage Reverse Osmosis Equipment
The reverse osmosis equipment adopts the reverse osmosis infiltration filtration process, which is amodern and new type of pure water treatment technology. Reverse osmosis is a membrane separationtechnology that uses pressure as the driving force to selectively penetrate (semi transparent) membranes.When the pressure added to the system is greater than the osmotic pressure of the influent solution, watermolecules continuously penetrate the membrane, flow through the production water channel into thecentral pipe, and then flow out impurities in the water at one end, such as ions, organic matter, bacteria,viruses, etc., which are intercepted on the inlet side of the membrane and discharged at the outlet of theconcentrated water,Thus achieving the purpose of separation and purification.
Products Description
Product Paramenters
|
Model
|
ZYJRO-0.25T
|
ZYJRO-0.5T
|
ZYJRO-1T
|
ZYJRO-1.5T
|
ZYJRO-2T
|
ZYJRO-3T
|
|
Water Yield
|
0.25T/H
|
0.5T/H
|
1T/H
|
1.5T/H
|
2T/H
|
3T/H
|
|
Power
|
1.5KW
|
1.8KW
|
1.8KW
|
2.4KW
|
2.8KW
|
4KW
|
|
Inlet Diameter
|
dn25
|
dn32
|
dn32
|
dn40
|
dn40
|
dn50
|
|
Outlet Diameter
|
dn20
|
dn20
|
dn20
|
dn25
|
dn32
|
dn40
|
|
Equipment Size
|
140*50*150cm
|
155*55*160cm
|
165*65*165cm
|
180*70*180cm
|
190*80*180cm
|
Pre processing:2*0.8*2.1m
Host:1.5*0.6*1.6m
|
|
Equipment Volume
|
1.2m
3
|
1.4m
3
|
1.8m
3
|
1.5m
3
|
2.7m
3
|
4.8m
3
|
|
Packaging Volume
|
1.5m
3
|
1.7m
3
|
2.3m
3
|
2.6m
3
|
3.4m
3
|
5.9m
3
|
|
Weight
|
245KG
|
275KG
|
370KG
|
495KG
|
685KG
|
1400KG
|
|
Applicable Water Source
|
Urban tap water, groundwater, rainwater, river water, lake water.
|
|
Influent Quality
|
TDS＜500,1000,3000/5000-1500ppm, water temperature 5°＜25°C
|
|
Production Water Quality
|
Based on the TDS value of the influent, design the treatment process,select the configuration, and obtain the conductivity of the producedwater according to the desalination rate of the selected reverse osmosis membrane.
|
|
Working Voltage
|
AC380V/50HZ or AC220V/50HZ 3P, (out of phase voltage requires electrical control)
|
|
Working Pressure
|
Pre processing 0.2-0.4Mpa, RO host 0.7-1.8Mpa
|
|
Water Yield
|
0.25T-100T
|
|
Desalination Rate
|
95-99.6%(desalination rate may vary due to factors such as inlet water temperature, water pressure, and membrane fouling)
|
|
Rate Of Recovery
|
50-70% (recovery rate may vary due to factors such as inlet water temperature, water pressure, and membrane fouling)
|
