Quick Details
-
Brand Name:
-
DIEWU
-
Model Number:
-
TXE015
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch - 10 Ports Unmanaged
-
Thermal Fan:
-
Fanless
-
Copper Port:
-
10 10/100BASE-TX MDI/MDIX Ports
-
PoE Injector Port:
-
8-port with 802.3at/af PoE injector function with Port-1 to Port-8
-
Switch Architecture:
-
Store-and-Forward
-
Switch Fabric:
-
2Gbps/non-blocking
-
Switch Throughput@64 bytes:
-
1.48Mpps@64 bytes
-
MAC Address Table:
-
8K entries, automatic source address learning and aging
-
Maximum Frame Size:
-
1522 bytes
-
Flow Control:
-
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.8G
-
Brand Name:
-
DIEWU
-
Model Number:
-
TXE015
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch - 10 Ports Unmanaged
-
Thermal Fan:
-
Fanless
-
Copper Port:
-
10 10/100BASE-TX MDI/MDIX Ports
-
PoE Injector Port:
-
8-port with 802.3at/af PoE injector function with Port-1 to Port-8
-
Switch Architecture:
-
Store-and-Forward
-
Switch Fabric:
-
2Gbps/non-blocking
-
Switch Throughput@64 bytes:
-
1.48Mpps@64 bytes
-
MAC Address Table:
-
8K entries, automatic source address learning and aging
-
Maximum Frame Size:
-
1522 bytes
-
Flow Control:
-
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
|

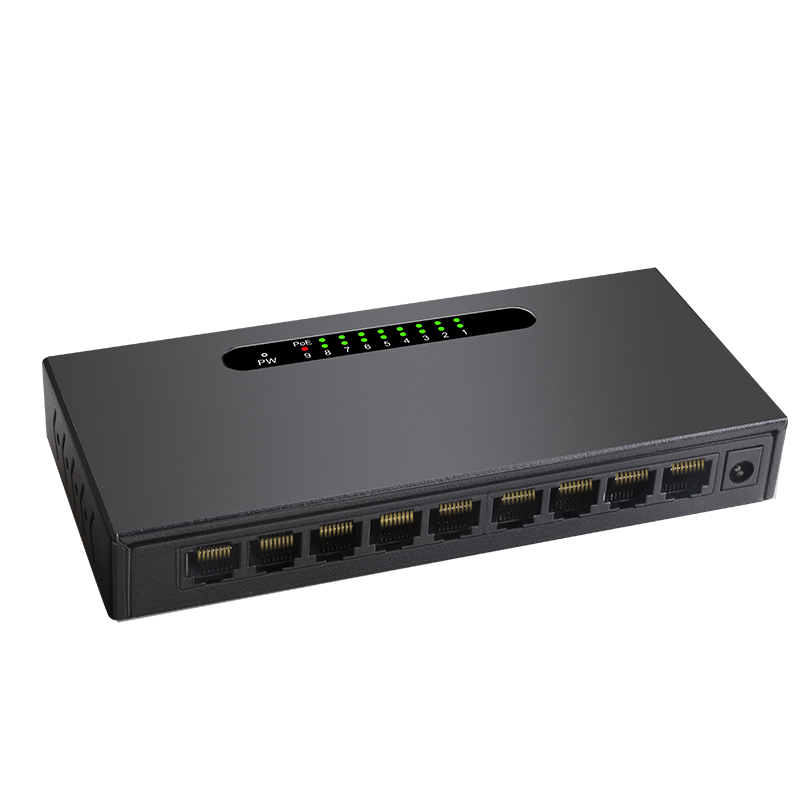

The TXE015 8-Port 10/100 Mbps PoE Switch enables you to supply both power and data to up to 8 PoE capable devices.
The switch complies with 802.3af/at PoE+ standards, supporting up to 30W on each PoE port, not to exceed the switch’s specific power budget. This PoE Switch features ten auto-detecting full/half-duplex ports with automatic crossover detection (MDI/MDI-X). The TXE011 enables users to easily connect and supply power to PoE capable devices such as wireless Access Points (Aps), IP cameras, and IP phones. And it can also connect other Ethernet devices like computers, printers, and Network Attached Storage (NAS) to fit into any type of network application.
|
|
Features• Four 10/100Mbps Power Over Ethernet Ports • 10/100M auto sensing RJ45 port • Max. 30W for each PSE/PoE Port (Port 1~8) • Support long transmission distance at 250 meters • Switch Mode: Mode 1(Standard): all ports 10/100M auto-sensing @ 100 meters distance Mode 2(Extend): PoE Port 1~8: 10M @ 250 meters; Ports 1 to 8 will be isolated from each other, but will still be able to communicate with uplink port distance . Uplinkports will always keep 100M bps @ 100 meters distance • Auto-detect full/half-duplex, MDI/MDI-X • IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex • Store and forward • Fanless design • Rugged metal or plastic enclosure |
