Quick Details
-
Operating System:
-
Android 11/13 (Continuous Update)
-
Type:
-
Tablet PC
-
Weight:
-
780g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUGEROCK
-
Model Number:
-
B70(1056)
-
Display:
-
7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable
-
CPU:
-
ARM Cortex A73 Octa --core ( 2.0GHz)
-
GPU:
-
Arm Mali--G72 MP3
-
RAM:
-
8G
-
Internal Memory:
-
128G
-
Main Camera:
-
13.0MP(AF) with flash led
-
Sub Camera:
-
5.0MP
-
Battery:
-
10000mAh
-
SIM Card:
-
1.8/3.3V SIM card
-
Navigation:
-
GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
Quick Details
-
Screen Size:
-
7"
-
Memory Capacity:
-
8GB
-
Display resolution:
-
1280*720
-
Operating System:
-
Android 11/13 (Continuous Update)
-
Type:
-
Tablet PC
-
Weight:
-
780g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUGEROCK
-
Model Number:
-
B70(1056)
-
Display:
-
7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable
-
CPU:
-
ARM Cortex A73 Octa --core ( 2.0GHz)
-
GPU:
-
Arm Mali--G72 MP3
-
RAM:
-
8G
-
Internal Memory:
-
128G
-
Main Camera:
-
13.0MP(AF) with flash led
-
Sub Camera:
-
5.0MP
-
Battery:
-
10000mAh
-
SIM Card:
-
1.8/3.3V SIM card
-
Navigation:
-
GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)

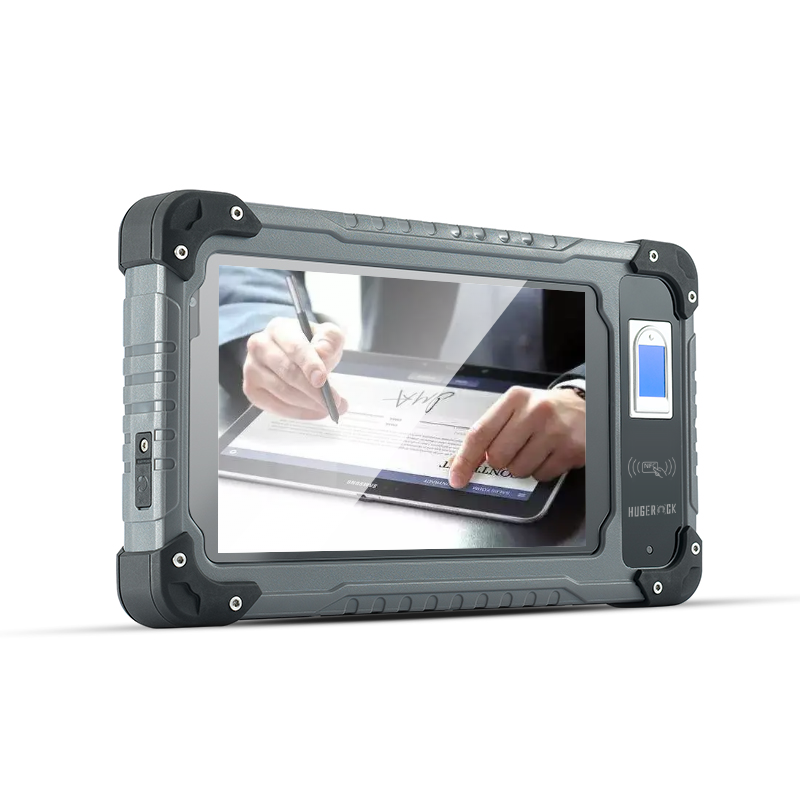

Appearance
Product packing standard
Specification
|
Hardware
|
|
|
|
|
||||
|
CPU
|
ARM Cortex A73 Octa-core (2.0GHz)
|
|
|
|
||||
|
GPU
|
ARM Mali-G72 MP3
|
|
|
|
||||
|
RAM
|
8G
|
|
|
|
||||
|
Internal Memory
|
128G
|
|
|
|
||||
|
External Memory
|
Micro SD card ( T-FLASH card), max 256GB
|
|
|
|
||||
|
Main Camera
|
13.0MP(AF) with flash led
|
|
|
|
||||
|
Sub Camera
|
5.0MP
|
|
|
|
||||
|
Battery
|
10000mAh
|
|
|
|
||||
|
Display
|
7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable
|
|
|
|
||||
|
Touch Panel
|
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
|
|
|
|
||||
|
IO/Sensor/Navigation
|
|
|
|
|
||||
|
SIM Card
|
1.8/3.3V SIM card
|
|
|
|
||||
|
TF Card
|
Micro SD card (T-FLASH card); max 256GB
|
|
|
|
||||
|
Headphone
|
3.5mm (CTIA）
|
|
|
|
||||
|
Data interface
|
USB Type-A(Host)*1, Type-C*1
|
|
|
|
||||
|
Charging interface
|
Type-C+2pin pogo pin: DC 5V（direct battery charging）
|
|
|
|
||||
|
Direction Sensor
|
support
|
|
|
|
||||
|
Gravity sensor
|
support
|
|
|
|
||||
|
Magnetic Field Sensor
|
support
|
|
|
|
||||
|
Motion sensor
|
support
|
|
|
|
||||
|
Rotation Vector
|
support
|
|
|
|
||||
|
Light-sensor
|
support
|
|
|
|
||||
|
Acceleration sensor
|
support
|
|
|
|
||||
|
Charger
|
5.0V 2A-10W
|
|
|
|
||||
|
Navigation
|
GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m）
|
|
|
|
||||
|
Appearance
|
|
|
|
|
||||
|
Size
|
237*137*29mm (L×W×H)
|
|
|
|
||||
|
Weight
|
780g
|
|
|
|
||||
|
Color & Material
|
Gray (PC+ABS)
|
|
|
|
||||
|
Communications & Networking
|
|
|
|
|
||||
|
Phone Call
|
GSM /WCDMA/CDMA 1X/VoLTE
|
|
|
|
||||
|
2G
|
GSM/CDMA 1X/EDGE/GPRS/WAP
|
|
|
|
||||
|
2G Band
|
GSM（B2/3/5/8）
|
|
|
|
||||
|
3G
|
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO
|
|
|
|
||||
|
3G Band
|
WCDMA B1/2/5/8 ,Evdo: BC0/BC1 CDMA: BC0/BC1
|
|
|
|
||||
|
4G
|
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink
|
|
|
|
||||
|
4G Band
|
TD-LTE B38/39/40/41 FDD LTE B1/2/3/4/5/7/8/12/17/20/28)
|
|
|
|
||||
|
WI-FI
|
Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
|
|
|
|
||||
|
BT
|
5.0 Low Energy (LE)
|
|
|
|
||||
|
Industrial & Reliability Design
|
|
|
|
|
||||
|
Shake-proof
|
1-19Hz/1.0mm; 19-200Hz/1.0g
|
|
|
|
||||
|
Dropproof /IK
|
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
|
|
|
|
||||
|
Waterproof
|
Class 7 (IEC 60529)
|
|
|
|
||||
|
Dustproof
|
Class 6 (IEC 60529)
|
|
|
|
||||
|
Reliability
|
MTBF>5000h；MTTR<0.5h
|
|
|
|
||||
|
Operating temperature
|
-20°C to 55°C
|
|
|
|
||||
|
Storage Temperature
|
-40°C to 80°C
|
|
|
|
||||
|
RH
|
5% to 95%
|
|
|
|
||||
|
Operating Altitude
|
Max: 4,500 m（15,000 feet）
|
|
|
|
||||
|
Certification/OS/Software
|
|
|
|
|
||||
|
Certification
|
3C/FCC/CE/ROHS/IP67 (IEC 60529)
|
|
|
|
||||
|
Language
|
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc
|
|
|
|
||||
|
OS
|
Android 11/13 (Continuous Update)
|
|
|
|
||||
|
Package/Warranty terms
|
|
|
|
|
||||
|
Warranty
|
24 months
|
|
|
|
||||
|
Package
|
USB cable/Charger 5V 2A/Introduction manual/Screen protector/ Packing box/SIM Card Ejector/Magnetic Charging Cable
|
|
|
|
||||
Function modules
|
Fingerprint Module
|
|
|
|
G2010 Fingerprint
|
Grayscale: 32768
|
|
|
|
FAP10, 508 dpi, 8 bit, 256X360.
|
|
|
|
FBI MINEX III (NIST Certification)
|
|
|
|
RoHS Certification
|
|
|
NFC
|
|
|
|
Protocol Standard
|
ISO14443A/B, ISO15693, NFC
|
|
|
Label Standard
|
M1(S50, S70), CPU, NFC
|
|
|
Read-Write Distance
|
2-5cm
|
|
Product details
Factory strength
Product qualification
FAQ
Q :Are you manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
