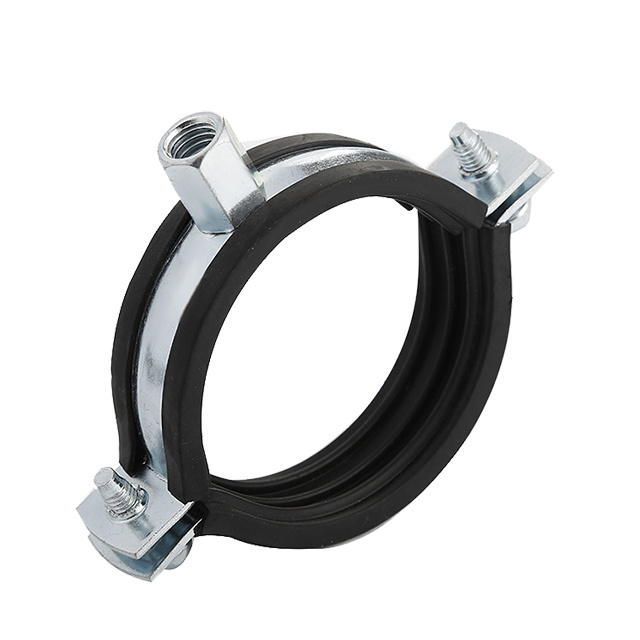

Heavy Duty Rubber Lined Hose Clamp, Galvanized Steel Hinged Clamp,Rubber Lined Split Clamp

Heavy Duty Rubber Lined Hose Clamp, Galvanized Steel Hinged Clamp,Rubber Lined Split Clamp

FOB Reference Price: Get Latest Price

≥50 Pieces

US $0.29

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Measurement system:: Imperial (Inch), metric

Application:: Healthcare, Food & Beverage, General Industry, Heavy Industry, Mining

Pipe clamps type:: piple clamps

Product name:: rubber lined split clamp

Size:: 16-250

finished:: galvanized

Usage:: pipe clamp

Standard or Nonstandard:: standard

Keyword:: rubber lined pipe clamp

Packing:: carton

Quick Details

Warranty:: 3 years

Finish:: Galvanized

Material:: Steel

Measurement system:: Imperial (Inch), metric

Application:: Healthcare, Food & Beverage, General Industry, Heavy Industry, Mining

Pipe clamps type:: piple clamps

Product name:: rubber lined split clamp

Size:: 16-250

finished:: galvanized

Usage:: pipe clamp

Standard or Nonstandard:: standard

Keyword:: rubber lined pipe clamp

Packing:: carton

Product Description

Specification

Material:	Galvanized Iron
Finished	polished
Structure:	Band ,Screw And Rubber
Thickness	1.0mm 1.2 mm ,1.5mm, 1.8mm, and 2.5mm
Bandwidth:	20mm, 22mm
Type of Clamp	round clamp
Clamp range	16-250
Prodution	cut , forming , welding ,assembling
Application:	Construction Area

SIZE		SIZE	INCH	THICKNESS * WIDTH	NUT SIZE	TWO SIDE SCREW HOLE
inner diameter D	clamping range		INCH	T * W	G	K
16	15-19	3/8"	1.2*22	M8+M10	M6
20	20-25	1/2"	1.8*22	M8+M10	M6
28	26-30	3/4"	1.8*22	M8+M10	M6
32	32-36	1"	1.8*22	M8+M10	M6
40	38-42	1-1/4"	1.8*22	M8+M10	M6
50	48-51	1-1/2"	1.8*22	M8+M10	M6
58	55-60	1-3/4"	1.8*22	M8+M10	M6
63	63-68	2"	1.8*22	M8+M10	M6
75	75-80	2-1/2"	1.8*22	M8+M10	M6
90	88-92	3"	1.8*22	M8+M10	M6
102	100-105	3-1/2"	1.8*22	M8+M10	M6
110	110-114	4"	1.8*22	M8+M10	M6
125	125-130	4-1/2"	1.8*22	M8+M10	M6
140	138-143	5"	1.8*22	M8+M10	M6
150	148-153	5-1/2"	1.8*22	M8+M10	M6
160	159-166	6"	1.8*22	M8+M10	M6
180	180-185	7"	1.8*22	M8+M10	M6
250	248-253	8“	1.8*22	M8+M10	M6
250	248*315	8”	2.5*22	M8+M10	M6

Note: The screw must be fully screwed into the joint to ensure that the intended bearing capacity is achieved

light weight anti-seismic pipe clamp

1..Material can be high-quality SPCC,DC01,stainless steel etc.

2..Hoisting screw with double tooth M8 M10, easy installation

3. inner liner is flame retardant EPDM rubber,(hardeness 40 °±5°shore A), play a good role in anti seismic 4. Suitable for spray pipes below DIN60, sprinkler pipes, gas pipes, sewage , pipes,fire pipes

5. coating types: hot galvanizing,environmental protection galvanized, powder , paint, decronmet.

6. Operating temperature:-40℃-100℃

7. Screw fastening: M5-1.0Nm, M6-2.0Nm

8. Fire test B level, Noice 4L=17Db(A
