Name: Joystick
Quantity: 5 pcs
It's simply and easy to control the machine up/down, the spindle up/down, left/right, the blade cover open/close..
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
4200*2060*2200mm
-
Weight:
-
6000 kg
-
Diameter of vertical blade:
-
1330 mm
-
Diameter of horizontal blade:
-
600 mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
150 kw
-
Cutting thickness (max):
-
520mm
-
Production Capacity:
-
high
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
4200*2060*2200mm
-
Weight:
-
6000 kg
-
Diameter of vertical blade:
-
1330 mm
-
Diameter of horizontal blade:
-
600 mm
-
After Warranty Service:
-
Video technical support

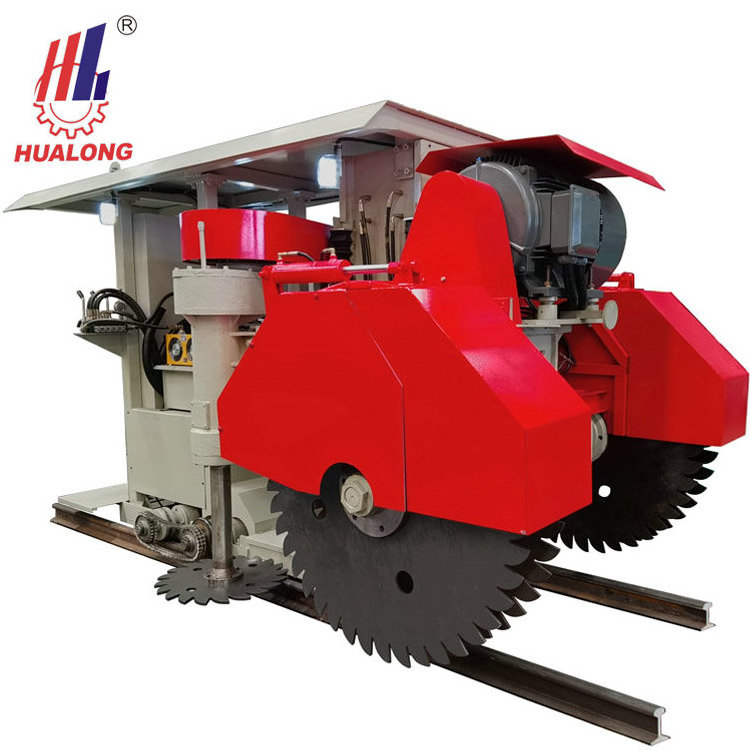

Sandstone Quarry Cutting Machine
HKSS-1400
is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.
|
Technical Data
|
|
|
||
|
Diameter of vertical saw
|
mm
|
1330
|
||
|
Diameter of horizontal saw
|
mm
|
600
|
||
|
Thickness of saw
|
mm
|
12
|
||
|
Max. cutting depth
|
mm
|
500
|
||
|
Forward & backward speed
|
m/min
|
10 - 45
|
||
|
Max.lifting stroke of cylinder
|
mm
|
700
|
||
|
Power of vertical motor
|
kw
|
75
|
||
|
Power of horizontal motor
|
kw
|
45
|
||
|
Power of traction motor
|
kw
|
5.5
|
||
|
Power of hydraulic motor
|
kw
|
5.5
|
||
|
Gross power
|
kw
|
500
|
||
|
Dimension (L x W x H）
|
mm
|
4200x2060x2200
|
||
|
Gross Weight
|
kg
|
5000
|
||
Brick Products quarried:
Main Features:
1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong,
straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4) Powerful motors with 93% efficiency, tall output and low consumption.
straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4) Powerful motors with 93% efficiency, tall output and low consumption.
Control Companent
Main Motor
Name: Three-phase asymchronous motor
Brand: XDDJ
Efficiency: 93.1%
Original: China
Domestic famous engines, strong driving force, good efficiency, high economic benefits.
Brand: XDDJ
Efficiency: 93.1%
Original: China
Domestic famous engines, strong driving force, good efficiency, high economic benefits.
Power Connection & Operation Panel
Brand:
Siemens, Schneider, SANCH
Original: China
Quality certificated by CE
Original: China
Quality certificated by CE
Blade
Blades are made of Q460c manganese steel(difficult deformation)+heat treatment,HR up to 52. The cutter heads are made of cemented
carbide,hard,wear-resisting,heat-resisting and corrosion resisting.
carbide,hard,wear-resisting,heat-resisting and corrosion resisting.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
