pcb cnc making manufacturing router machine cnc spindle price machines machinery

pcb cnc making manufacturing router machine cnc spindle price machines machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $20400

≥5 Sets

US $19000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: KEXIN

Voltage:: AC 200V

Power:: 5.0KW

Weight:: 2200

Dimension(L*W*H):: 2.00*1.70 *1.50 m

After-sales Service Provided:: Engineers available to service machinery overseas

Spindle Quantity:: 2

Industry:: PCB

Material:: rolled steel & granite

cooling way:: Water cooling

Tool Change:: Automatic Tool Change

Certification:: CE

Quick Details

Applicable Industries:: printed circuit board

Core Components:: none

Place of Origin:: Guangdong, China

Brand Name:: KEXIN

Voltage:: AC 200V

Power:: 5.0KW

Weight:: 2200

Dimension(L*W*H):: 2.00*1.70 *1.50 m

After-sales Service Provided:: Engineers available to service machinery overseas

Spindle Quantity:: 2

Industry:: PCB

Material:: rolled steel & granite

cooling way:: Water cooling

Tool Change:: Automatic Tool Change

Certification:: CE

Product Description

Product Application

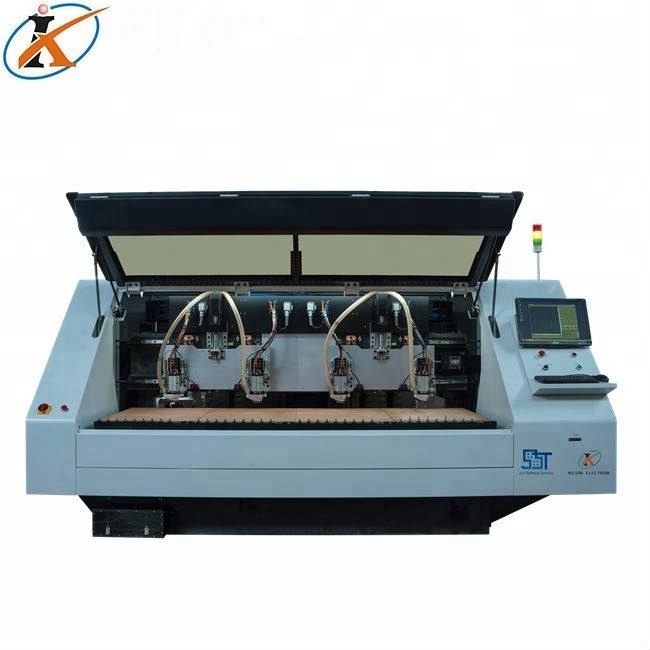

Automatic Tool Change 2 axis drilling and routing machine made by Kexin

SPECIFICATIONS FOR 2 SPINDLES CNC DRILLING AND ROUTING MACHINE
Engine	Z Axis Quantity	2 Spindles
	Guide Rail	HWIN
	Ball Screw	HWIN
	Motor driver	Panasonic
	Transducer	Taiwan Delta
Main performance parameters	X/Y Axis Max. Speed	25	m/min
	Positioning Accuracy	0.025	mm
	Repeated Accuracy	0.01	mm
	Spindle Speed	60,000	rpm
	Effective Stroke	550*650	mm*mm
General Information	Power	AC200V/50HZ/5KW
	Machine Size	2 * 1.7 * 1.5 M
	Cooling Way	Water Cooling
	Machine Weight	2200kg

Main Features

Its upper & lower cutter adopts Panasonics servo motor (specifications precisionof 3u, maximum speed of 3500r/min, maximum output power of 200W).
Its push plate-axis adopts Panasonic servo motor (specification precision of 3u maximum, maximum speed of 3500r/min,maximum output power of 400W).
Its cutter axis adopts Mitsubishi servo motor (specification accuracy of 3u, maximum speed of 3500r/min, maximum output of 750W).
Its wheel up and down,adopts Panasonic servo motor (specification accuracy of 5u, maximum speed of 7000r/min, output power of 400W).
The motion controller uses six axis to control its motion with high stability.
