Quick Details
-
Warranty:
-
365 days
-
Brand Name:
-
DESHI
-
Model Number:
-
ZJQ200-30-45
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
15~550
-
Cable Length:
-
Costomized
-
Outlet Size:
-
150 mm
-
Power:
-
5~400KW
-
motor:
-
Electric motor
-
Seal type:
-
Mechanical Seal
-
Wear Parts:
-
High Chrome alloy
-
Color:
-
Grey
-
Packaging:
-
Wooden case
-
Motor Speed:
-
960 RPM
-
Bottom Agitator:
-
Available
-
cooling type:
-
Lubrication oil
-
Monitor Alarm:
-
Available
-
Impeller type:
-
closed
-
Hydraulic Drive:
-
optional
Quick Details
-
Application:
-
Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Mining industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
380~440 V
-
Warranty:
-
365 days
-
Brand Name:
-
DESHI
-
Model Number:
-
ZJQ200-30-45
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
15~550
-
Cable Length:
-
Costomized
-
Outlet Size:
-
150 mm
-
Power:
-
5~400KW
-
motor:
-
Electric motor
-
Seal type:
-
Mechanical Seal
-
Wear Parts:
-
High Chrome alloy
-
Color:
-
Grey
-
Packaging:
-
Wooden case
-
Motor Speed:
-
960 RPM
-
Bottom Agitator:
-
Available
-
cooling type:
-
Lubrication oil
-
Monitor Alarm:
-
Available
-
Impeller type:
-
closed
-
Hydraulic Drive:
-
optional

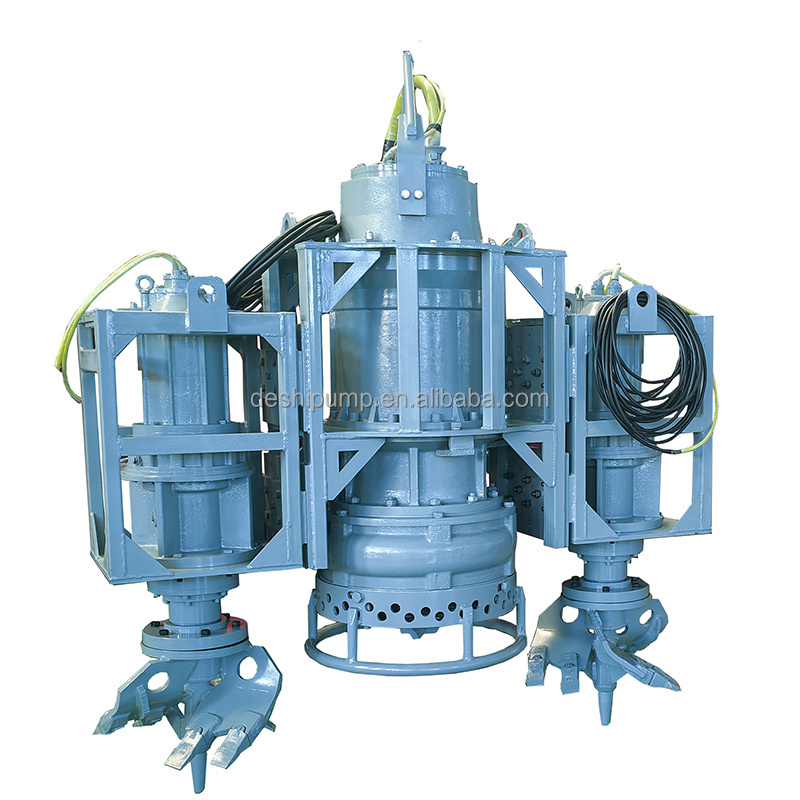

Heavy duty Vertical Submersible slurry pump sand pump sludge pump ZJQ
Introduction:
The ZJQ series submersible slurry pump is specially designed for slurry, sand, tailings, dredging, sludge, sewage, and sediment in sewage treatment work, etc., where the motor and the pump are coaxially submerged in medium. The pump flow parts are constructed from high-chrome alloy, wear-resistant material, guaranteeing an extended work life and accommodation of large flow volumes.
In addition to the main impeller, the bottom of the sludge pump includes a set of agitation reamer that can work the deposited sludge into turbulent flow, increasing the concentration without need of an auxiliary device. The unique sealing device can effectively balance the pressure inside and outside of the oil chamber for maximum protection. The motor was designed with many safety features including, protection from overheating, water inlet detecting projections, and an ability to operate safely for long periods of time in harsh working conditions. The side attached agitator is optional to increase pumping efficiency.
Assembly Structure:
Overview:
| Model | ZJQ |
| Discharge Dia.(mm) | 65-450 |
| Flow Rate(m³/h) | 25-2500 |
| Lift/Head(m) | 12-90 |
| Motor power(KW) | 5.5-400 |
| Rotating speed(rpm) | 960/1450 |
| Max. Allowable Solid size(mm) | 14-82 |
| Seal type | Mechanical Seal |
Advantage:
1. Mechanical seal and excellent water-proof technology make sure safe and stable running under water.
2. Equipped with bottlom agitator, nice stirring effect, and operation is easy.
3. Good suction lift performance with much higher efficiency
4. No need to equip with vacuum pump, and help clients to save cost.
5. It is not required to build the complicated ground protection and fixing device when the motor is submerdged under water, which is simple and convenient.
6. The bottom agitator directly contacts the sediment surface, and slurry density can be controlled by
the submerged depth.
7. All the wear parts are made of ultra chrome alloy, the service life is longer.
Typical Application:
|
• Mineral processing |
• Mining |
• Coal Washery |
• Cyclone feeds |
|
• Aggregate |
• Chemical slurr y |
• Tailing |
• Mill grinding |
|
• Ash handing |
• M etallurgy |
• Waste sludge |
• Coarse sand |
|
• Sand |
• Phosphoric acid |
• Dredging |
• Sewage |
|
• Quarry |
• Power Plant |
• Fertilizer |
• Tunnel |
|
• Iron ore sand |
• Copper Concentration |
• Gold mine |
• Molybdenum |
|
B entonite |
Construction |
Island Reclaiming |
Alumina Industry |
Pump Model Meaning
Perameters Table:
Stirring Effect and Installation View
Submersible slurry pump Application Scenarios
Please contact us for the detailed outline drawings if needed.
This kind of pump can be equipped with hydraulic motor, driven by hydraulic station or attached on an excavator.
ZJQ submersible slurry pump drive type:
Assembly Workshop & Stock
Testing Center
Packaging & Shipping:
Applications Case:
