Quick Details
-
Voltage:
-
380V
-
Power:
-
30kw
-
Dimension(L*W*H):
-
various
-
Weight (KG):
-
100
-
Heating source:
-
Electricity Steam Oil Gas
-
Product name:
-
fluid bed drying machine
-
Advantage:
-
Low Consumption High Efficiency
-
Dryig process:
-
Continuous Automatic Drying
-
After Warranty Service:
-
Service
-
Application material:
-
Vegetable Herbal Fruit Chemical
Quick Details
-
Type:
-
Fluid Bed Drying Equipment
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
maohong
-
Voltage:
-
380V
-
Power:
-
30kw
-
Dimension(L*W*H):
-
various
-
Weight (KG):
-
100
-
Heating source:
-
Electricity Steam Oil Gas
-
Product name:
-
fluid bed drying machine
-
Advantage:
-
Low Consumption High Efficiency
-
Dryig process:
-
Continuous Automatic Drying
-
After Warranty Service:
-
Service
-
Application material:
-
Vegetable Herbal Fruit Chemical
Products Description

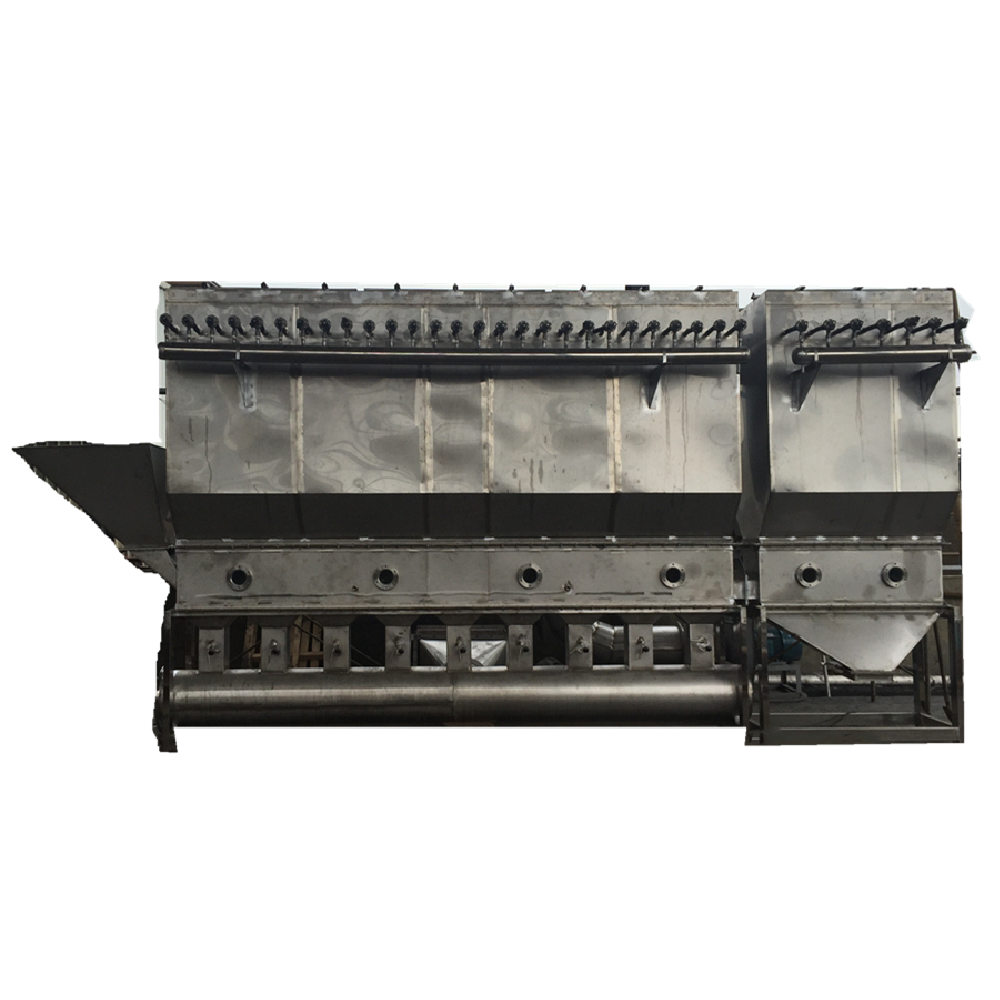

XF size fluidized bed dryer Description
A fluidized bed dryer consists of air filter, heater, fluidized bed, rotating segment feeder, cyclone separator , bag dust
remover, high press. centrifugal fan and stage for operation. According to different characters of different materials to be dried, the dryer can be equipped with both cyclone separator and bag dust remover or with either of them. Generally speaking, for those pellet materials with a large specific gravity, only a cyclone separator is needed And for those granule or powder materials with a small specific gravity, a bag dust remover is needed and so is a pneumatic conveying device if possible. The dryer can also be equipped with a rotating segment feeder if required.
remover, high press. centrifugal fan and stage for operation. According to different characters of different materials to be dried, the dryer can be equipped with both cyclone separator and bag dust remover or with either of them. Generally speaking, for those pellet materials with a large specific gravity, only a cyclone separator is needed And for those granule or powder materials with a small specific gravity, a bag dust remover is needed and so is a pneumatic conveying device if possible. The dryer can also be equipped with a rotating segment feeder if required.
XF size fluidized bed dryer Application
This fluidized bed dryer is suitable for drying pellet or granule materials such as raw materials for medicine,pellets,traditional Chinese medicine drink granules in pharmaceutical industry;plastic resin ,citric acid and other powder or granule materials in chemical industry and drink granules, corn plumule, feed in food industry. The most suitable diameter of the materials is 0.5-3 mm.
XF size fluidized bed dryer Features
This fluidized bed dryer can achieve automation and continuous drying process. It has a high drying speed and a low temperature and the product quality can be ensured, meeting GMP requirements. The heating resource can be steam, electricity or furnace
XF size fluidized bed dryer Principle
Granule or pellet solid materials are fed into the fluidized bed dryer through the feeder. Filtrated clean air is heated and
charged onto the bottom of the fluidized bed to contact with the solid materials on the distributing plate, where fluidization can be reached and the heat exchange between solid and air can be achieved After being dried, the products are discharged from the outlet. Waste gas is discharged from the top of the fluidized bed, and powder materials are recovered by the cyclone separator or bag dust remover
charged onto the bottom of the fluidized bed to contact with the solid materials on the distributing plate, where fluidization can be reached and the heat exchange between solid and air can be achieved After being dried, the products are discharged from the outlet. Waste gas is discharged from the top of the fluidized bed, and powder materials are recovered by the cyclone separator or bag dust remover
